SSV Works X32-PHZ+FK Instruction Manual page 5

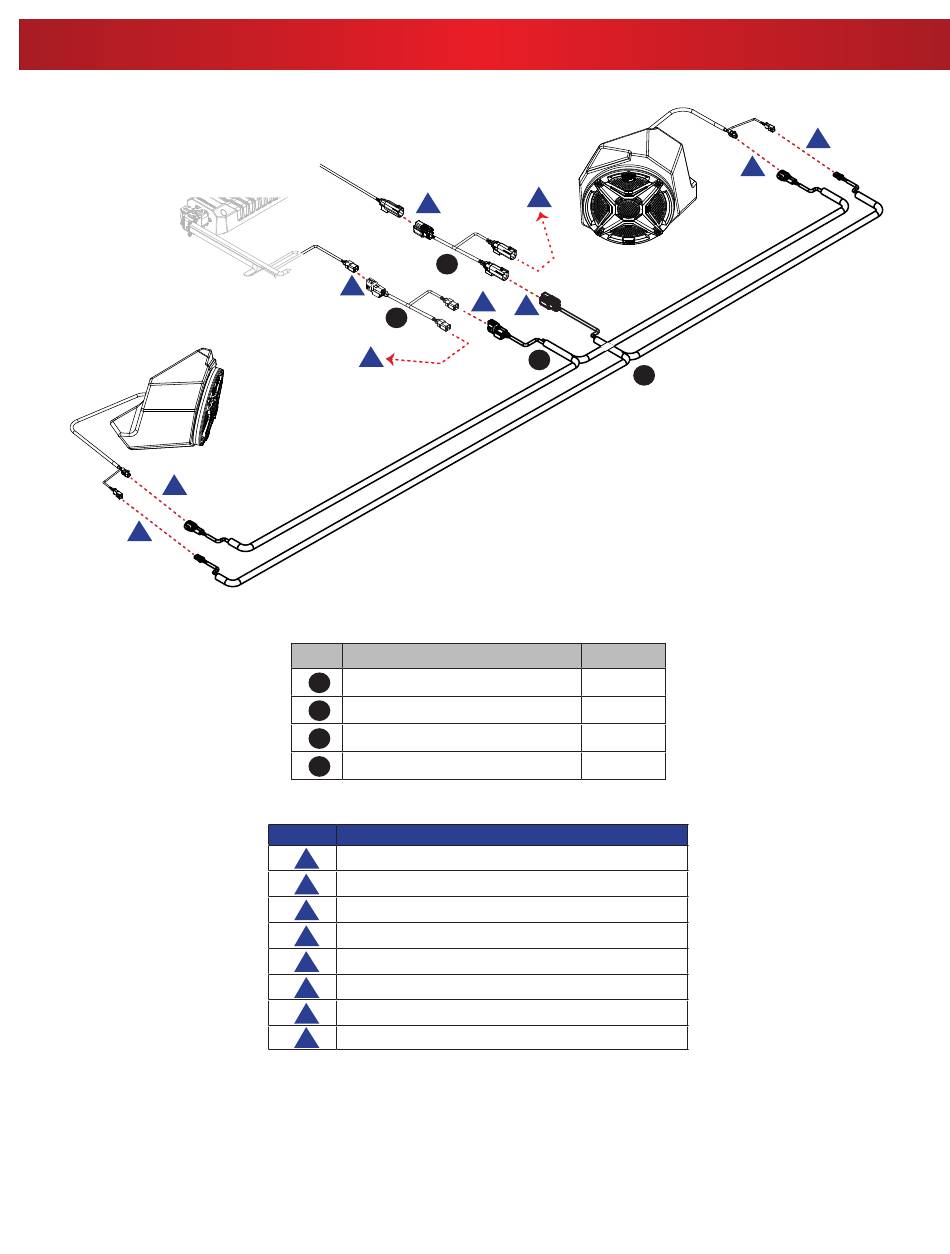

FRONT KICK PODS ADD-ON KIT WIRING DIAGRAM
G
H
B
2
A
1
C
Description
Speaker "Y" Harness
1
2 RGB "Y" Splitter
Front Speaker Harness (48")
3
RGB Speaker Harness (48")
4
Detail
Connect Front Output from B-H2605 to B-H1463
A
Connect LIT-CC Output to B-H3072
B
Connect to Dash Speaker Panel Harness
C
Connect to B-H1909 for Front Kick Pods
D
Connect to B-H2935 for Front Kick Pods RGB Speakers
E
Connect to Dash Speaker Panel RGB Harness
F
Connect to Front Kick Pods Connector
G
H Connect to Front Kick Pods RGB Connector
F
D
E
3
4
Part #
B-H1463
B-H3072
B-H1909
B-H2935
Description
H
G
5
