SSV Works X32-PHZ+FK Instruction Manual page 3

FRONT KICK PODS ADD-ON KIT INSTALLATION

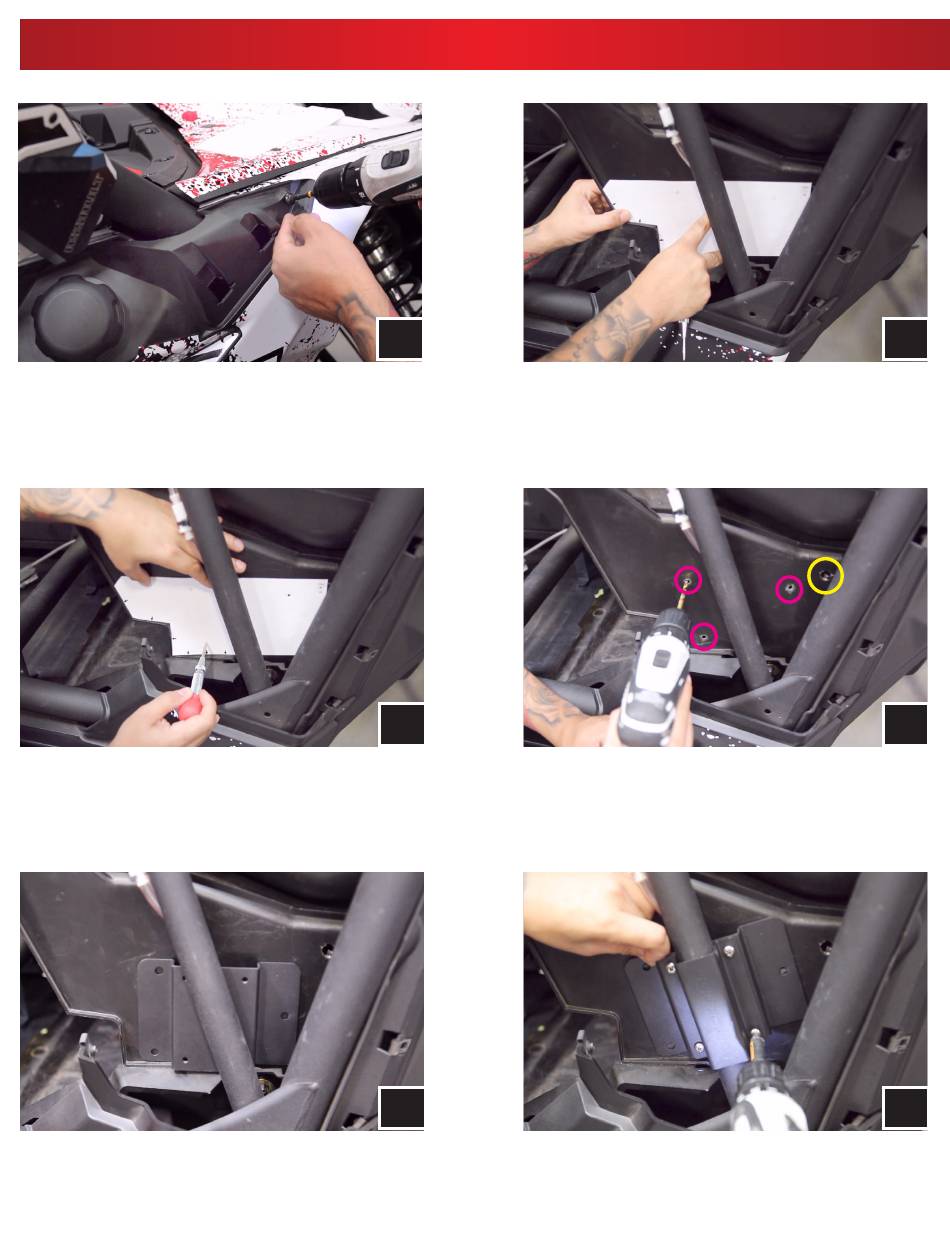

A. Remove the eleven (11) T30 Torx bolts that secure the fender.
Note: There is three (3) T30 screws on passenger side and
two (2) on driver side that will have a 10mm bolt. Remove the
metal clip that is securing the top panel to the fender.
C. Using a scribing tool, mark the center of the three (3) drill points
illustrated on the template as shown in image F.
E. Place the larger bracket on inside of the cage tube.
A
B. Cut out the template (Driver/Passenger) along the cut line.
Position the template on inner plastic ,making sure to square
up the template along the factory panel as shown in image E.
C
D. Using a 1/4" drill bit, drill holes for mounting the pod. Use
a 1/2" drill bit to drill the hole for routing the speaker cable
connector.
E
F. Place the smaller bracket on top of the bar and line up the
holes with the large bracket. Using the M5 screws, tighten
both brackets to one another (make sure the drilled out holes
line up to brackets)
Cable hole Cable hole
Pod holes Pod holes
B
D
F
