RCP 401 EU and RCP 401 MK • Setup Guide
IMPORTANT NOTE:
Go to www.extron.com
product to the power source.
Overview
The RCP 401 EU and RCP 401 MK are remote control panels that allow remote operation of the SMP 401. User-friendly record, pause, stop,
and mark buttons enhance the recording experience. Manage and save files directly to thumb drives or external portable drives through a
USB port that supports writing speeds up to 5 Gbps. It also features buttons for swap and layout preset recall functions, streamlining the
creative workflow. Status lights and audible alerts keep users informed of SMP 401 recording status. The RCP 401 EU and RCP 401 MK
include a USB-C control cable for easy, out-of-the-box connection to the SMP 401. The RCP 401 EU panels include black and white
faceplates for a wide range of environments. The RCP 401 MK model is available in white only.
This guide provides basic instructions for an experienced installer to install either of these remote control panels and contains the following
sections:
•
RCP 401 Front Panel Features
•
RCP 401 Rear Panel Features

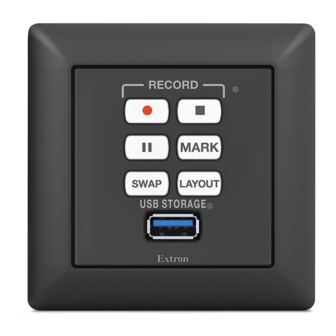

RCP 401 Front Panel Features
The front panel features of the RCP 401 EU and RCP 401 MK are identical apart from the wallplate.
The recording controls have backlit buttons that indicate the current state of the recording operation. Inactive buttons are backlit dimly to help
identify them in low ambient lighting.
Activity LED — Blinks green once when a button press is detected. It blinks red when an on-
A
screen or all notifications alarm on the attached SMP is triggered.
Record button — Press to start recording on the attached SMP 401. The button lights red and
B
remains lit during active recording. The button has a nub that can be felt with the fingertips.
Stop button — Press to stop the active recording. As the recorded file is finalized, the button
C
blinks. Once the file is finalized, the button lights solidly.
Pause button — Press to pause the active recording. While the recording is paused, this
D
button blinks.
Press Record or Pause to resume recording. Press Stop to end the recording.
Mark button — Press this button to place a chapter marking in the recorded file. When
E
pressed during active recording, the button momentarily blinks.
The button also lights when JPG thumbnails are created. By default, thumbnails are created
automatically and the interval between the creation of each thumbnail can be changed by the
user on the SMP 401 embedded webpage.
Swap button — Press this button to exchange size and position between window A and
F
window B.
Layout button — Press this button to toggle between the selected layout presets. Admin can
G
choose up to seven layout presets from the SMP embedded webpage.
USB Storage LED — Indicates the status of the storage port:
H
•
Lights green solidly when the recording destination is set to RCP USB or Auto and the
attached storage device is ready for the next recording. The LED does not turn on if less
than 10 minutes of recording space remain on the storage device.
•
Blinks green during a recording to indicate data transfer activity.
•
Turns off when no USB storage device is detected or the attached storage is
disconnected.
USB storage port — Connect a USB compatible media storage device to this port. This
I
storage device can be any standard external hard drive or USB flash drive formatted with a
compatible file system.
NOTE:
SMP 401 models can detect and record to USB storage devices that use
FAT32, VFAT long file name extensions, exFAT, EXT2, EXT3, EXT4 file system, or
NTFS-formatted storage volumes.
for the complete user guide, installation instructions, and specifications before connecting the
•
Installation
•
Configuration
•
Making a Recording
B
D
M A R K
F
S WA P L AY O U T
I
e
RCP 401 EU RCP 401 EU
B
D
M A R K
F
S WA P L AY O U T
I
e
RCP 401 MK

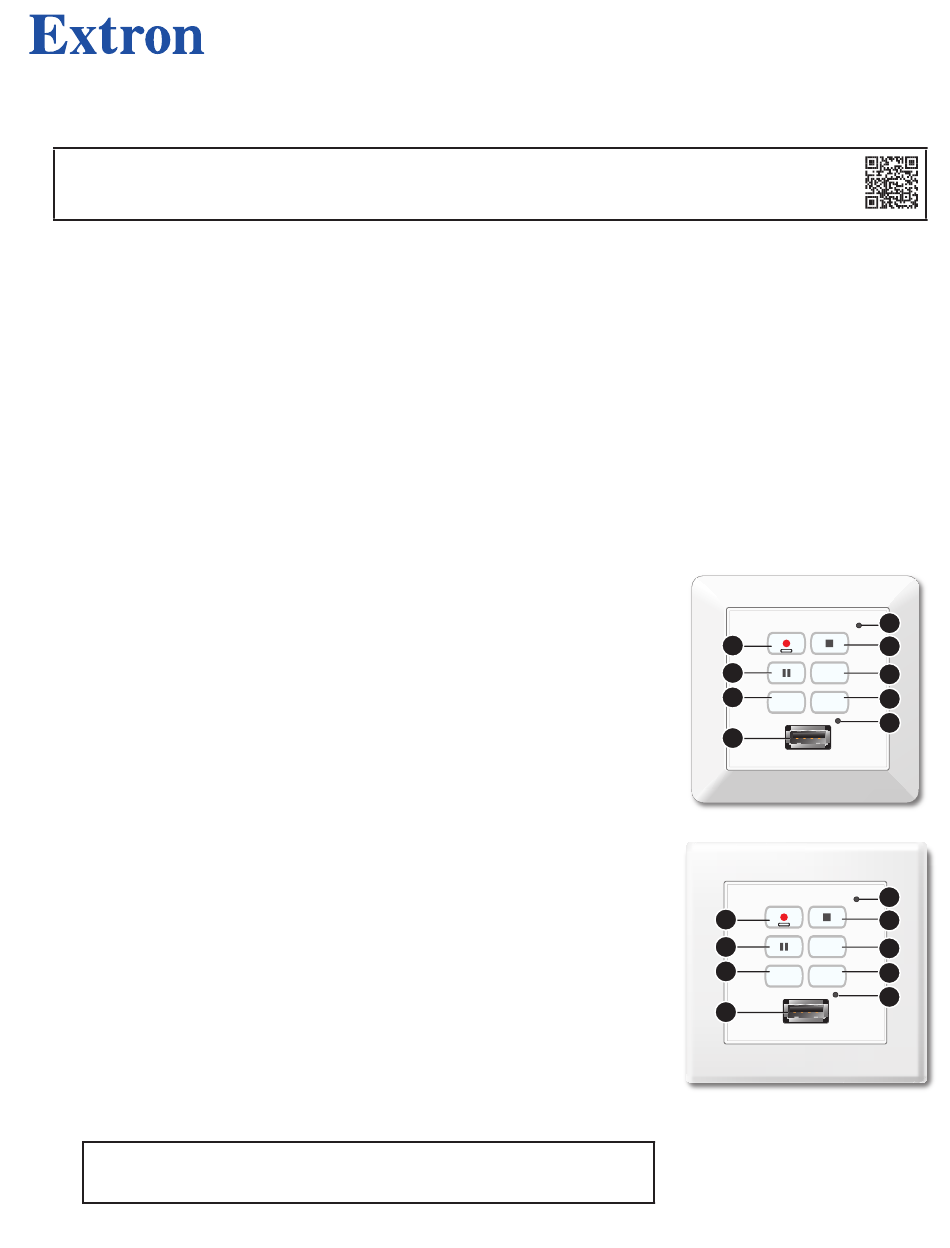

Figure 1. RCP 401 EU (top) and
MK (bottom) Front Panels
A
C
E
G
H
A
C
E
G
H
1
