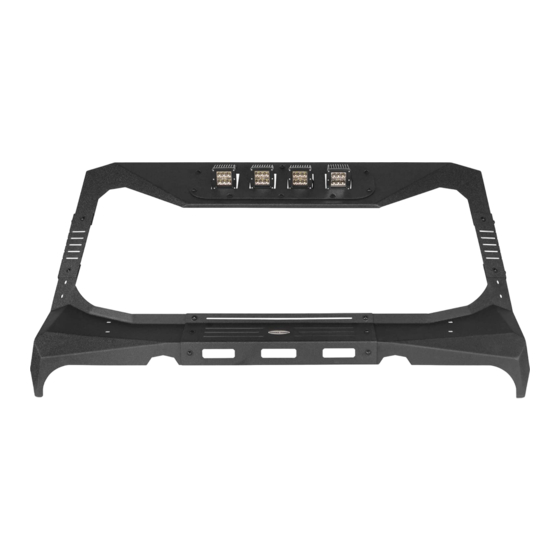

A-Pillar Cover

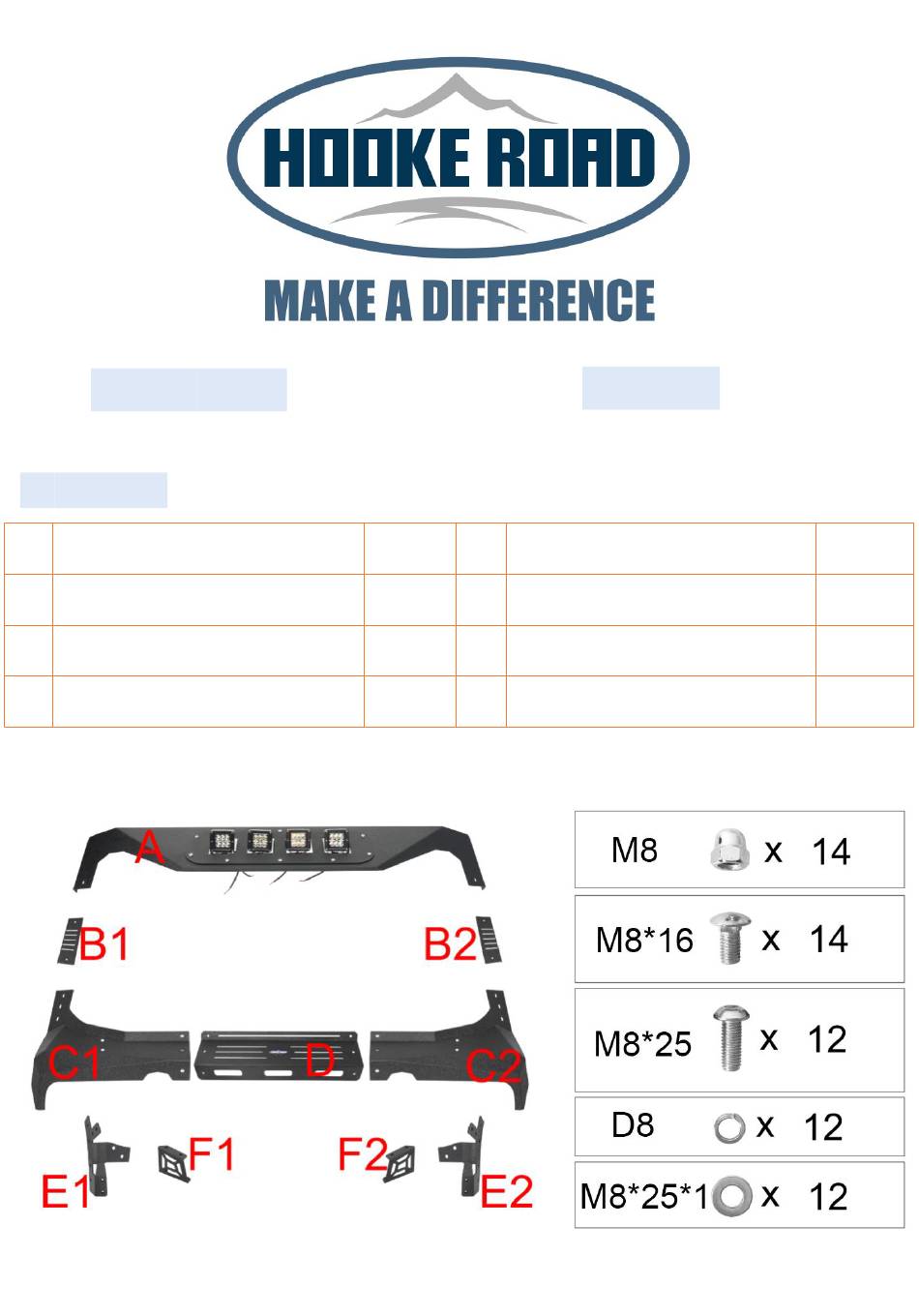

(1) Contents:
Qty
Part Name
1
Front Bumper Assembly
14
Acorn Hex Cap Dome Head Nuts
14
Button Head Socket Cap Bolts Screws
Size(mm)
Qty
Part Name
12
Button Head Socket Cap Bolts Screws
M8
12
Split Lock Washer
M8*16
12
Flat Washer
BXG.2060
Size(mm)
M8*25
D8
M8*25*1
Advertisement
Related Manuals for HOOKE ROAD BXG.2060
Summary of Contents for HOOKE ROAD BXG.2060
- Page 1 BXG.2060 A-Pillar Cover (1) Contents: Part Name Size(mm) Part Name Size(mm) Front Bumper Assembly Button Head Socket Cap Bolts Screws M8*25 Acorn Hex Cap Dome Head Nuts Split Lock Washer Button Head Socket Cap Bolts Screws M8*16 Flat Washer M8*25*1...
- Page 2 About 2 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.2060), please scan the QR code.
- Page 3 (4) Installation instruction: Step 1: Remove the A-pillar area of the original car. As the picture showed. Step 2: Install the Part”F1” & ”F2”with the original bolts.
- Page 4 Step 3: Install the Part ”E1” & ”E2” with the original bolts. Step 4: Assemble the Part ”C1” , “C2” & the Part ”D” with the Acorn Hex Cap Dome Head Nuts(M8*16), Button Head Socket Cap Bolts Screws(M8*16).
- Page 5 Step 5: Assemble the Part “C1”, ”C2” &”B1”, “B2 the Part with the Acorn Hex Cap Dome Head Nuts(M8*16), Button Head Socket Cap Bolts Screws(M8*16).
- Page 6 Step 6: According to your needs, install or remove the LED Light bracket. As the picture showed.
- Page 7 Step 7: Assemble the Part ”A”& the Part “B1”, ”B2” with the Acorn Hex Cap Dome Head Nuts(M8*16), Button Head Socket Cap Bolts Screws(M8*16).
- Page 8 Step 8: Assemble the Part ”F1”, “F2” & the bracket with the Acorn Hex Cap Dome Head Nuts(M8*16), Button Head Socket Cap Bolts Screws(M8*16), Button Head Socket Cap Bolts Screws(M8*25), Flat Washer(M8*25*1), Split Lock Washer(D8).
- Page 9 Step 9: Tighten up bolts in order.
- Page 10 Step 10: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
