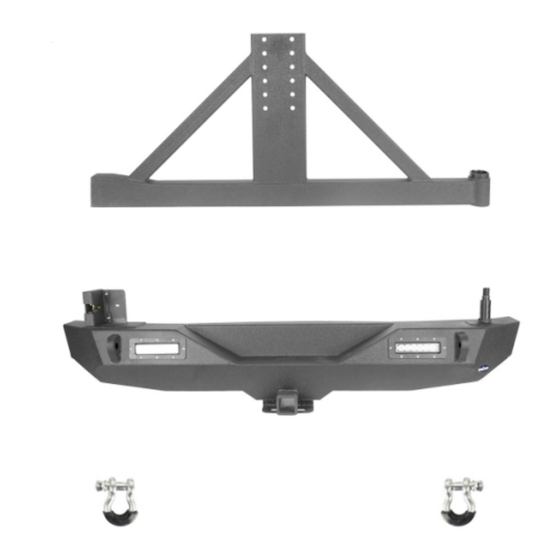

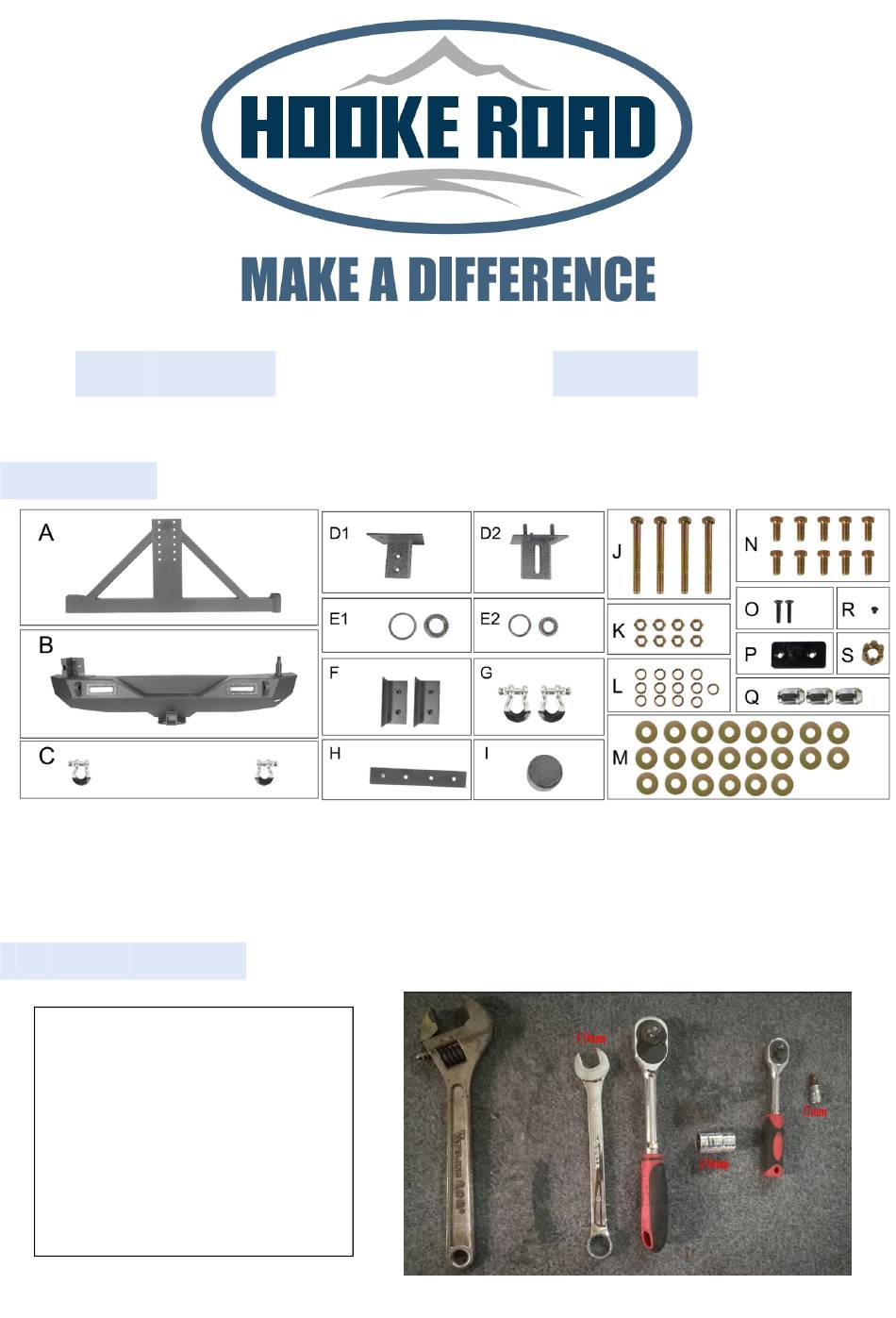

- Page 1 Rear Bumper BXG.2029 (1) Contents: (2) Tools required: 19mm Wrench; 19mm Socket Wrench; 5mm Socket Wrench; Adjustable Wrench;...
- Page 2 About 1.5 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.2029), please scan the QR code.
- Page 3 (4) Installation instruction: Step 1: Remove the original rear bumper.Then ready to install the new bumper(PART “B”). Step 2: Install the PART “F” on both side of the vehicle. (The driver side as shown below.)
- Page 4 Step 3: Install the bumper(PART “B”) on the vehicle. The picture shows on the RIGHT. Step 4: Tighten the PART “B” with the PART “N”,PART “L” & PART “M”. (Both side is the same.)
- Page 5 Step 5: Install the PART”H” with PART”J”,PART”K”,PART”L” & PART”M”. As shown below.
- Page 6 Step 6: Ready to install the PART”A” on the PART”B”. Install the PART”E1” & PART”E2” on the PART”A”.
- Page 7 Step 7: After “Step 6”,install the PART”S” & PART”I” with PART”R” . As shown below. Attention： Highly recommend you maintain the BEARINGS with some lubricating oil about 3 to 6 months to keep it work fine. Step 8: Install the PART”P” on the PART”A” with PART”O”.
- Page 8 Try to Lock the tire carrier.
- Page 9 Step 9: Install the PART”D1” & PART”D2”.As shown below.
- Page 10 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase. Hooke Road to find your parts...
