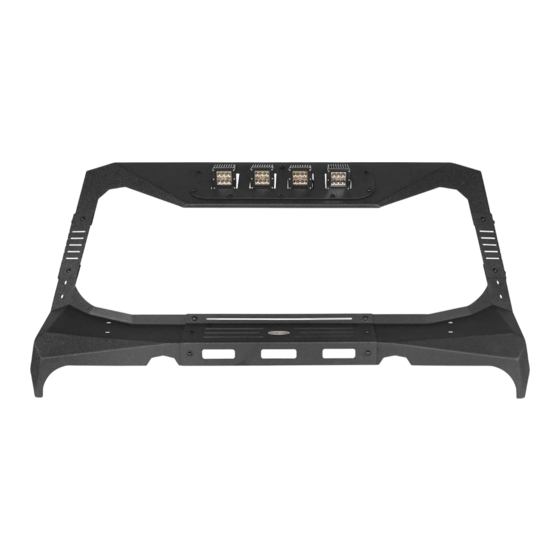

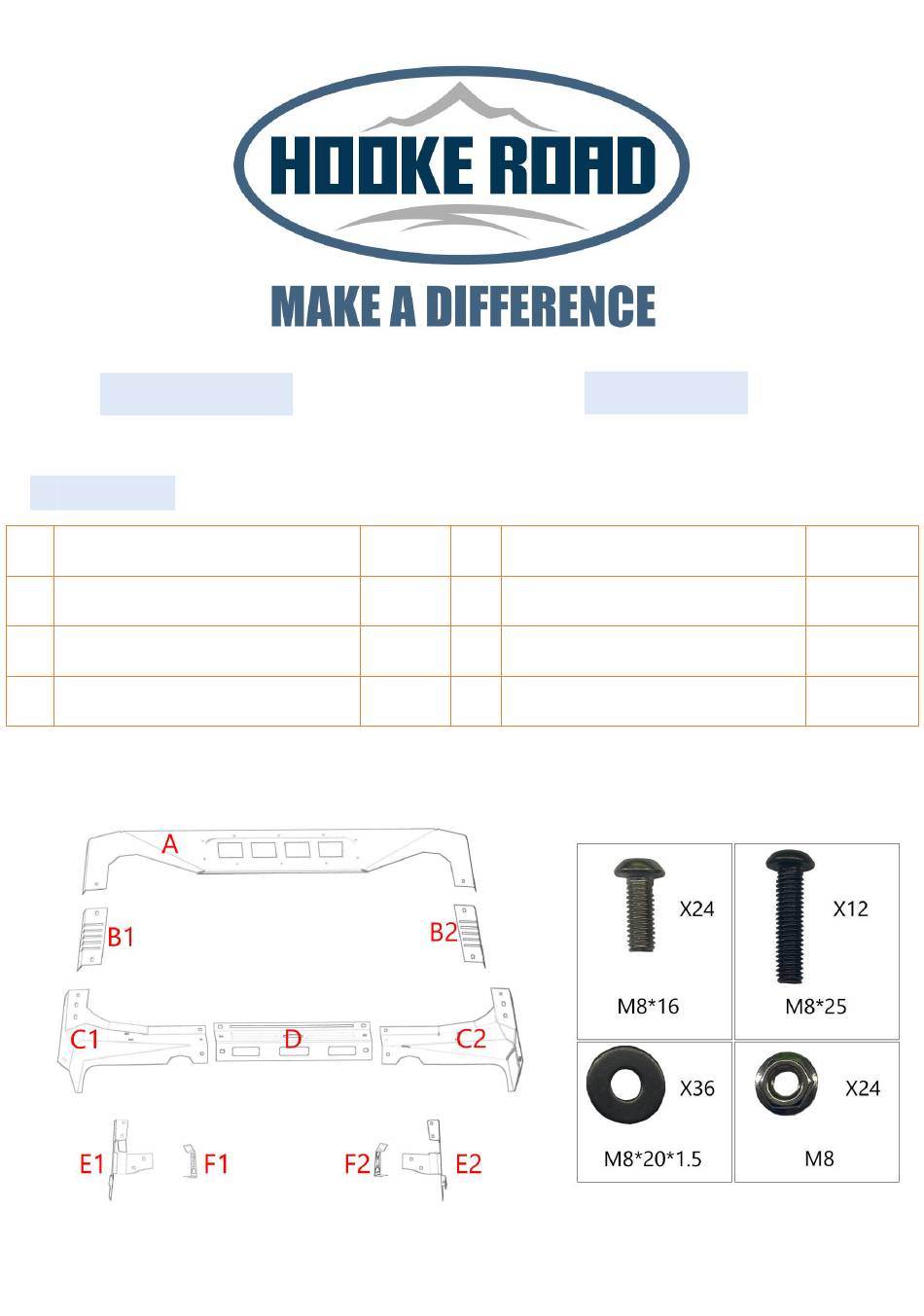

- Page 1 BXG.2060-S A-Pillar Cover (1) Contents: Part Name Size(mm) Part Name Size(mm) Front Bumper Assembly Flat Washer M8*20*1.5 Button Head Socket Cap Bolts Screws M8*16 Flange Hex Lock Nuts Button Head Socket Cap Bolts Screws M8*25...
- Page 2 About 2 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.2060-S), please scan the QR code.
- Page 3 (4) Installation instruction: Step 1: Remove the A-pillar area of the original car. As the picture showed. Step 2: Install the Part”F1” & ”F2”with the factory bolts.
- Page 4 Step 3: Install the Part ”E1” & ”E2” with the factory bolts. Step 4: Assemble the Part ”C1” , “C2” & the Part ”D” with the Button Head Socket Cap Bolts Screws(M8*16), Flat Washer (M8*20*1.5), Flange Hex Lock Nuts (M8).
- Page 5 Step 5: Assemble the Part “C1”, ”C2” &”B1”, “B2 with the Button Head Socket Cap Bolts Screws(M8*16), Flat Washer (M8*20*1.5), Flange Hex Lock Nuts (M8).
- Page 6 Step 6: According to your needs, install or remove the LED Light bracket. As the picture showed.
- Page 7 Step 7: Assemble the Part ”A”& the Part “B1”, ”B2” with the Button Head Socket Cap Bolts Screws(M8*16), Flat Washer (M8*20*1.5), Flange Hex Lock Nuts (M8).
- Page 8 Step 8: Assemble the Part ”F1”, “F2” & the bracket with the Button Head Socket Cap Bolts Screws(M8*25), Flat Washer (M8*20*1.5).
- Page 9 Step 9: Tighten up bolts in order.
- Page 10 Step 10: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
