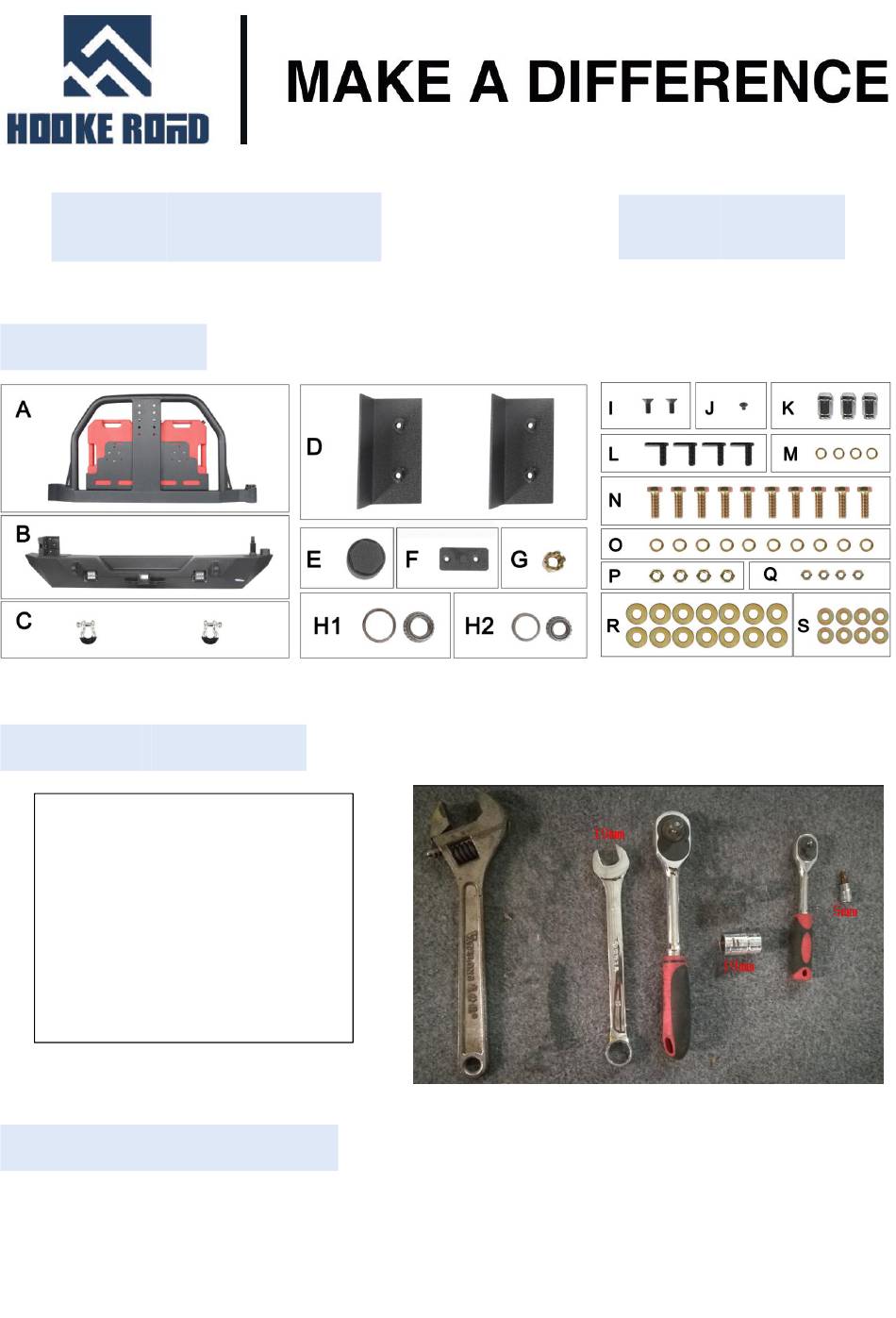

- Page 1 Rear Bumper BXG.2015 (1)Contents: (2)Tools required: 19mm Wrench; 19mm Socket Wrench; 5mm Socket Wrench; Adjustable Wrench; (3)Installation time: About 2 hours, 2-3 persons needed. Installation time is different according to individual person （ ）...
-
Page 2: Installation Instruction
(4)Installation instruction: Step 1: Remove the original rear bumper，and ready to install the new bumper. Step 2： Install the PART “D” on both side of the vehicle. (The driver side as shown below.) - Page 3 Step 3: Install the bumper(PART “B”) on the vehicle. The picture shows on the RIGHT. Step 4: Tighten the PART “B” with the PART “N”,PART “O” & PART “R”. (Both side is the same.)
- Page 4 Step 5： Install the PART”L” on the bottom of the rear bumper. And then tighten it with the PART”M”,the PART”Q” & the PART”S”.
- Page 5 Step 6： Install the PART”A” on the PART”B” with PART”H1” & PART”H2”. As shown below. Step 7: After “Step 6”,install the PART”S” & PART”I” with PART”R” . As shown below.
- Page 6 Step 8: Install the spare tire bracket.
- Page 7 Step 9: Install the PART”F” on the PART”I” with PART”I”.
- Page 8 Try to Lock the tire carrier(PART”A”). Step 10: Install the PART”C”. Both side is the same.
- Page 9 Step 11: Installation completed. Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact us if you have any kind of question about your purchase.
