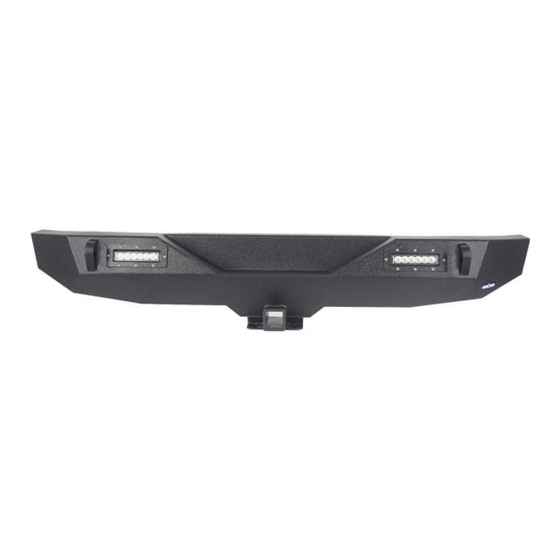

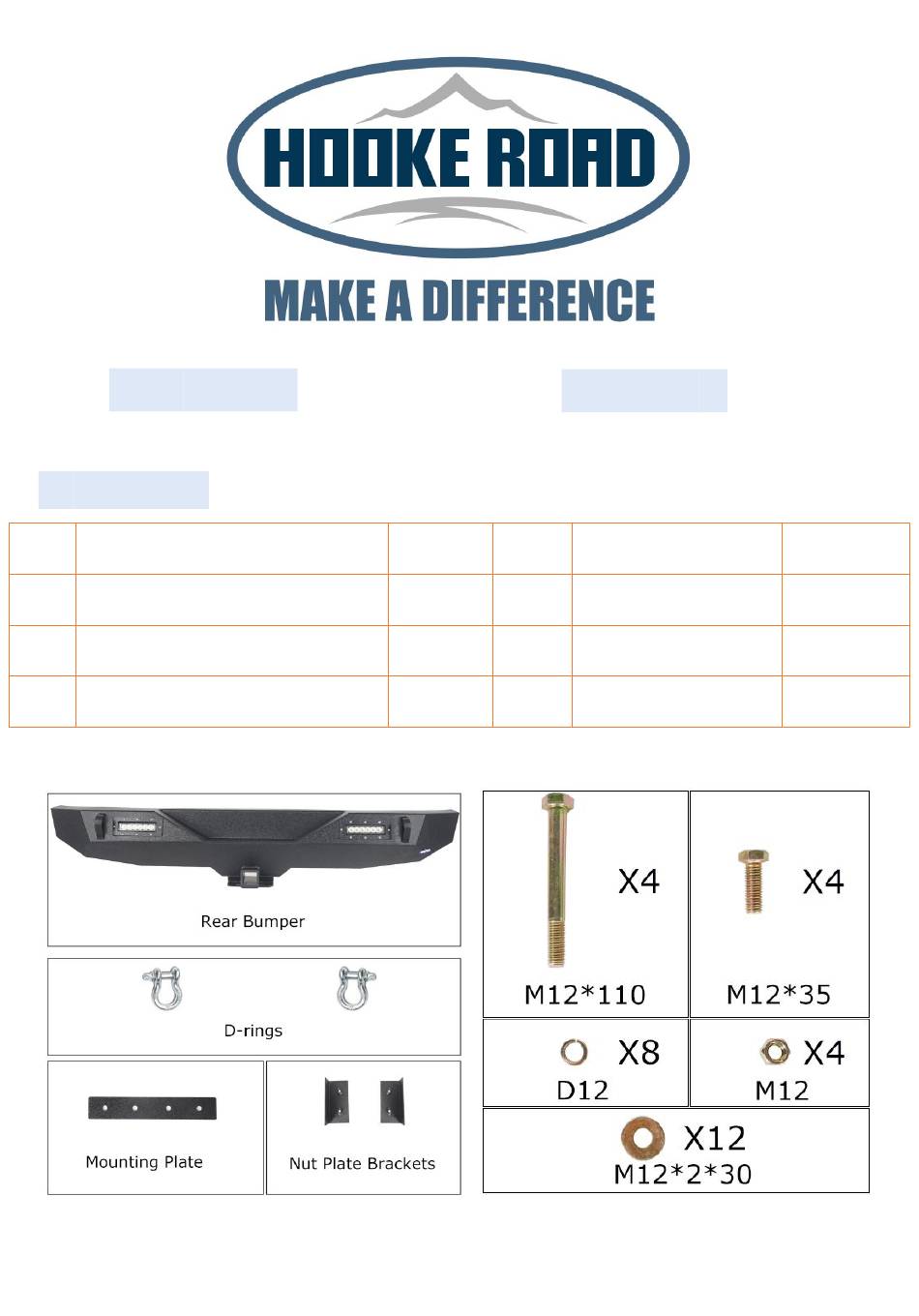

- Page 1 Rear Bumper BXG.2030-S (1) Contents： Part Name Size(mm) Part Name Size(mm) Rear Bumper Split Lock Washer Hex Bolt M12*110 Hex Nut Hex Bolt M12*35 Flat Washer M12*2*30...
- Page 2 About 1 hour, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.2030-S), please scan the QR code.
- Page 3 (4) Installation instruction: Step 1: Before install the new bumper.Remove the original rear bumper first. Step 2: Put the Nut Plate Brackets into the vehicle. RIGHT LEFT...
- Page 4 Step 3: (1)Install the Mounting Plate with the Hex Bolt (M12*110), Split Lock Washer (D12), Flat Washer (M12*2*30), Hex Nuts (M12). (2)Install the rear bumper with the Hex Bolt (M12*35), Split Lock Washer (D12), Flat Washer (M12*2*30). The bottom sight The nut installation The right side...
- Page 5 Step 4 Tighten the Hex Bolt (M12*35) & the Hex Bolt (M12*110) by 19mm wrench or socket wrench. Completed Tighten Step 5: Install the D-rings. Step 6： Installation completed.
- Page 6 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase. Hooke Road to find your parts...
