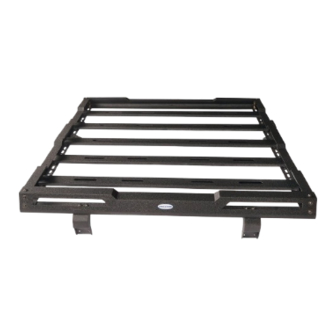

Roof Rack
(1) Contents:
Qty
Part Name
1
Roof Rack Assembly
2
Rivet Nut Plate
12
Button Head Socket Cap Bolts Screws
40
Button Head Socket Cap Bolts Screws
2
Rubber Mat
Size(mm)
Qty
50
M8
2
M8*25
2
M8*20
2
75*15*6
BXG.2071-S
Part Name
Flat Washer
Nylon Round Spacer
EVA Tape
Rubber Mat
Size(mm)
M8*20*1.5
20*20*7
74*55*2
79*15*6
Advertisement
Related Manuals for HOOKE ROAD BXG.2071-S
Summary of Contents for HOOKE ROAD BXG.2071-S
- Page 1 BXG.2071-S Roof Rack (1) Contents: Part Name Size(mm) Part Name Size(mm) Roof Rack Assembly Flat Washer M8*20*1.5 Rivet Nut Plate Nylon Round Spacer 20*20*7 Button Head Socket Cap Bolts Screws M8*25 EVA Tape 74*55*2 Button Head Socket Cap Bolts Screws...
- Page 3 About 1.5 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.2071-S), please scan the QR code.
- Page 4 (4) Installation instruction: Step 1: Assemble the rack on the ground. mount the front and rear fairings. To do this, use the Button Head Socket Cap Bolts Screws (M8*20), Flat Washer (M8*20*1.5). When mounting the front fairing, adjust it all the way up to avoid contact with the roof and leave the bolts loose enough to be able to make adjustments once it is on the roof of the vehicle.
- Page 5 Step 2: Next, mount the crossbars between the two side rails. For this use the Button Head Socket Cap Bolts Screws (M8*20), Flat Washer (M8*20*1.5). Make sure the machined slot in the rail of the crossbar is facing up. Step 3: Next, install the Eva Tape into the rear mounting brackets (need cut it by yourself) and snap the Rubber Mat into the front mounting brackets &...
- Page 6 Step 4: Next, install the front mounting brackets. For this use the Rivet Nut Plate (M8), the Button Head Socket Cap Bolts Screws (M8*25), Flat Washer (M8*20*1.5). Don’t tighten up those bolts. Step 5: Next, install the rear mounting brackets into your vehicle with the factory bolts.
- Page 7 Step 6: Next, put the roof rack into your vehicle, Assemble the rear mounting brackets & the roof rack. For this use the Button Head Socket Cap Bolts Screws (M8*25), Flat Washer (M8*20*1.5). Step 7: Finally, install the the front mounting brackets covers. Please adjust the position of the front mounting bracket first, so that it can be smoothly stuck in the roof rain groove.
- Page 8 Step 8: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
