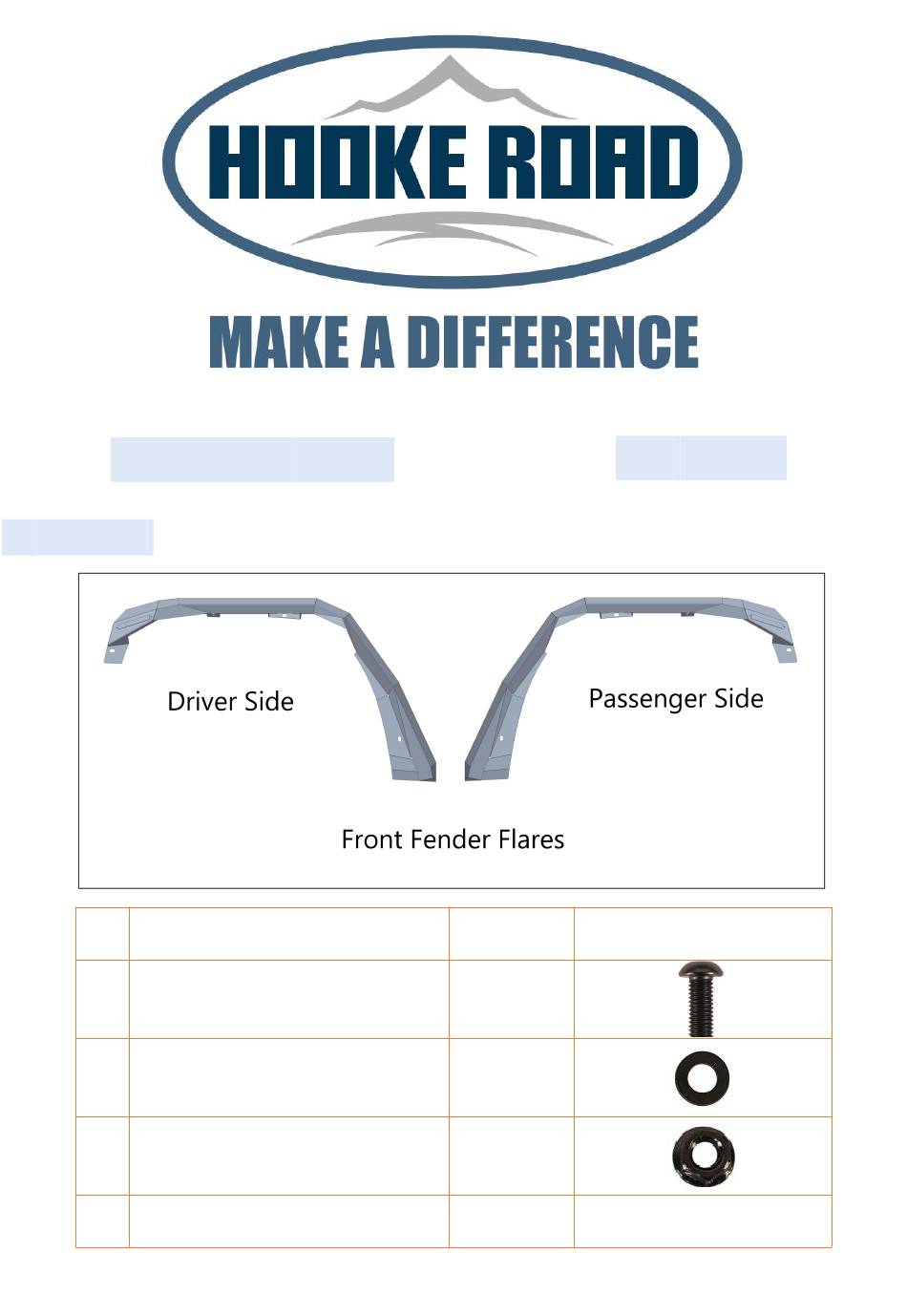

- Page 1 BXG.2080-S Front Fender Flares (1) Contents: Part Name Size(mm) Picture Button Head Socket Cap Bolts Screws M8*25 Flat Washer M8*20*1.5 Flange Hex Lock Nuts Nut Plate...
-
Page 2: Installation Time
About 1.5 hours, 1-2 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.2080-S), please scan the QR code. - Page 3 (4) Installation instruction: Step 1: Remove the factory front fender flares, ready to install our front fender flares. Step 2: First, Lift up the fender flares and install the two holes in the left side. Use the M8*20 Button Head Socket Cap Bolts Screws groups, but don’t tighten up those bolts.
- Page 4 Step 3: And then, to install the two holes in the right side. Use the M8*20 Button Head Socket Cap Bolts Screws groups, need put the nut plate in the back of the most right side hole. but don’t tighten up those bolts. Step 4: Finally, to install the middle hole.
- Page 5 Lighting Wiring Installation: The fender flares light have functions of the light (Red Wire) and the Turn lamp (Yellow Wire). Turn lamp: Disconnect the power source first, then unplug the original vehicle's turn signal light wiring harness, and connect the harness from the product to the original vehicle's wiring harness.
- Page 6 The location of the ACC (accessory) terminal inside the fuse box may vary slightly for each vehicle. To determine the specific location, you can refer to the markings on the fuse box cover. Look for the label or marking that indicates the ACC terminal to confirm its location.
- Page 7 Step 5: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
