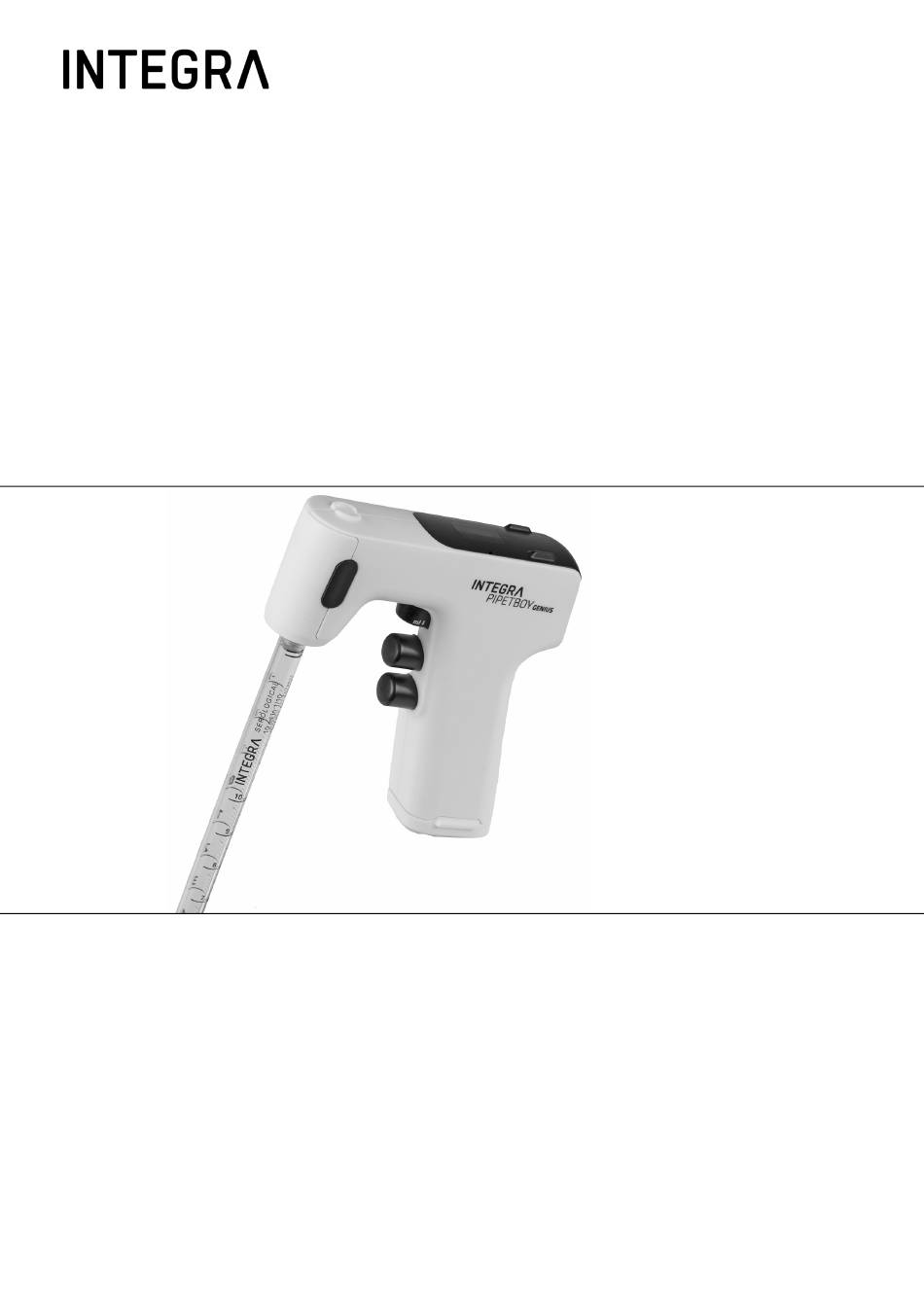

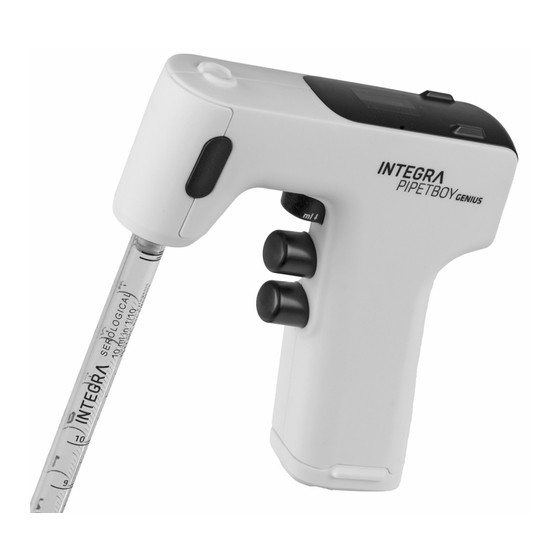

- Page 1 PIPETBOY GENIUS Operating instructions 101950_V00...
- Page 2 Declaration of conformity INTEGRA Biosciences AG – 7205 Zizers, Switzerland declares on its own responsibility that the devices Description Models PIPETBOY GENIUS 1011, 1012, 1013, 1014, 1015, 1016 Accessories 1200, 1201, 1202, 1203, 1210 comply with: International Scope UN 38.3...
- Page 3 PIPETBOY GENIUS – Declaration of conformity GBR Regulations Scope Date effective S.I. 2016/1101 Electrical equipment safety 08.12.2016 S.I. 2016/1091 Electromagnetic compatibility (EMC) 08.12.2016 S.I. 2008/2164 Batteries and accumulators regulations 26.09.2008 S.I. 2013/3113 Waste electrical and electronic equipment (WEEE) 01.01.2019 S.I. 2012/3032 Restriction of hazardous substances (RoHS) 02.01.2013...
- Page 4 PIPETBOY GENIUS – Declaration of conformity JPN Regulations Scope Date effective PSE (Denan) Law Electrical appliance and material safety law 01.01.2014 JPN Standards Scope Date effective JIS C1010-1:2019 Safety general laboratory equipment JIS 61000-6-2 Electromagnetic compatibility (EMC) J55011(H27) Measures against radiation noise...
-
Page 5: Table Of Contents
PIPETBOY GENIUS – Operating instructions V00 Table of Contents Chapter 1 Introduction 1.1 Symbols used ...................7 1.2 Intended use..................7 1.3 Safety notes ..................7 Chapter 2 Description of the device 2.1 Scope of delivery ................9 2.2 Overview of PIPETBOY GENIUS.............9 Chapter 3 Installation 3.1 Charging the battery ...............10... - Page 6 PIPETBOY GENIUS – Operating instructions V00 Chapter 6 Technical Data 6.1 Specifications .................19 6.2 Pipetting speeds ................20 6.2.1 Manual control ..............20 6.2.2 Repeat Dispense ..............21 6.3 Chemical compatibility..............21 Chapter 7 Accessories ..................23 Imprint ....................25 INTEGRA Biosciences AG...
-
Page 7: Chapter 1 Introduction
Safety notes 1) Do not use or charge PIPETBOY GENIUS in an atmosphere with danger of explosion. Also, do not pipet highly flammable liquids such as acetone or ether. 2) When handling dangerous substances, comply with the material safety data sheet (MSDS) and with all safety guidelines such as the use of protective clothing and safety goggles. - Page 8 Regardless of the listed safety notes, additionally applicable regulations and guidelines of trade associations, health authorities, trade supervisory offices, etc. must be observed. Please visit our website www.integra-biosciences.com on a regular basis for up to date information regarding REACH classified chemicals contained in our products.
-
Page 9: Description Of The Device
PIPETBOY GENIUS – Operating instructions V00 Description of the device Description of the device Scope of delivery • PIPETBOY GENIUS device • Rechargeable LiPo battery, located inside the device • Wall mount • Hydrophobic sterile filter 0.45 µm, spare • Quick Start Guide... -
Page 10: Chapter 3 Installation
Installation Installation Operating environment PIPETBOY GENIUS has been designed for use in a laboratory. It shall be operated in a dry and dust-free location with a temperature of 5–40 °C and a maximal (non-condensing) relative humidity of 80 %. AUTION Allow the device to acclimatize before putting it into operation. -
Page 11: Chapter 4 Operation
Press the repeat dispense button (4) for 3 seconds to turn on the PIPETBOY GENIUS. The last volume is displayed. Just take the PIPETBOY GENIUS in hand or press the repeat dispense button to wake it up from the stand-by mode. -
Page 12: Pipetting
30 seconds without having a pipet attached before starting work. It may happen that the PIPETBOY GENIUS makes a whistle sound, if no pipet inserted and the aspiration or dispense button is pressed. This does not impact the functionality. -
Page 13: Storage
Scan here for more details. Storage PIPETBOY GENIUS can be stored stable when it placed on its back (on the speed slider). Ledges on the top and on the side of the device also allow it to be stored upside down or sideways in an elevated position. - Page 14 • Optimal relative humidity of the environment is >50%. • The balance needs to be situated in a draft-free environment. • The PIPETBOY GENIUS and the liquid need to be in the laboratory for at least 2 hours prior to testing to reach temperature equilibrium with the environment.
-
Page 15: Troubleshooting
PIPETBOY GENIUS – Operating instructions V00 Operation It is possible to overwrite the liquid density adjustment with the factory value by pressing “Default”. Troubleshooting Errors and Warnings are displayed as a 4-digit number. Confirm the error by pressing the volume wheel (2). The device performs a check whether the error is resolved and tries to operate. - Page 16 PIPETBOY GENIUS – Operating instructions V00 Operation Problem Error Probable cause Remedy Pipet drips Pipet is damaged or not • Reinsert a new pipet and (leak in the fully inserted in the nose push it all the way into the system).
-
Page 17: Chapter 5 Maintenance
Always turn off the PIPETBOY GENIUS when carrying out maintenance work, especially before disassembling. After maintenance work, perform a leak test to ascertain correct functioning of PIPETBOY GENIUS: liquid should not leak out of a filled pipet before the dispense button is pressed. Disassemble the nose piece... -
Page 18: Replacing The Battery
PIPETBOY GENIUS device must not be disposed of with unsorted municipal waste. Do not dispose of the device in a fire. PIPETBOY GENIUS contains a LiPo battery. Do not modify the battery in any way. Dispose of the PIPETBOY GENIUS device and the battery separately in accordance with the laws and regulations in your area governing disposal of devices containing LiPo batteries. -
Page 19: Technical Data
PIPETBOY GENIUS – Operating instructions V00 Technical Data Technical Data Specifications Volume settings Repeat dispense volume range: 0.1-50 ml <10 ml: 0.05 ml graduation ≥10 ml: 0.1 ml graduation Battery Type: rechargeable, Lithium polymer, 1300 mAh Typical charging time: 3.5 hours Charging cycles: 500–1000 (when charging as indicated) -
Page 20: Pipetting Speeds
PIPETBOY GENIUS – Operating instructions V00 Technical Data Pipetting speeds The maximum pipetting speeds are reached when the button is fully pressed with the slider (3) in the following positions (down = slow, middle = standard, up = fast). 6.3.1... -
Page 21: Repeat Dispense
7.0 ml/s Chemical compatibility The table below lists PIPETBOY GENIUS parts that come into contact with the aspirated liquid or its aerosols and vapors, and rates the compatibility of these parts to a few of the chemicals commonly used in laboratories. To determine the compatibility of a component to a chemical not listed in the table, please consult one of the several tables available on the internet. - Page 22 PIPETBOY GENIUS – Operating instructions V00 Technical Data Chemical compatibility chart Parts Materials Handle, nose piece housing Cover lens Volume wheel, speed slider, buttons, pipet gripper Pipet indicator Pipet mount, tubings Silicone Internal parts Elec- (e. g. pump, tronic electronics)
-
Page 23: Chapter 7 Accessories
PIPETBOY GENIUS – Operating instructions V00 Accessories Accessories Part No. Mains adapter US/JP version: type A plug, 2-pole 1200 (100-240 VAC, EU/KR version: type C plug, 2-pole 1201 50/60 Hz) UK version: type G “Commonwealth” plug, 3-pole 1202 AU/CN version: type I, 3-pole... - Page 24 PIPETBOY GENIUS – Operating instructions V00 Serological Pipets Part No. 1 ml Polystyrene, sterile, pack of 1000, individually wrapped 1401 2 ml Polystyrene, sterile, pack of 1000, individually wrapped 1402 5 ml Polystyrene, sterile, pack of 200, individually wrapped 1403...
-
Page 25: Imprint
INTEGRA Biosciences AG shall not be liable for any loss, damage, repair costs, incidental or consequential damages of any kind, whether based on express or implied warranty, contract, omission or strict liability, arising in connection with the design, development, installation or use of the products. - Page 26 PIPETBOY GENIUS – Operating instructions V00 Manufacturer and customer service Your local INTEGRA Biosciences representative, further information, and operating instructions in other languages can be found at www.integra-biosciences.com or are available on request info@integra-biosciences.com. Manufacturer INTEGRA Biosciences AG INTEGRA Biosciences Corp.
