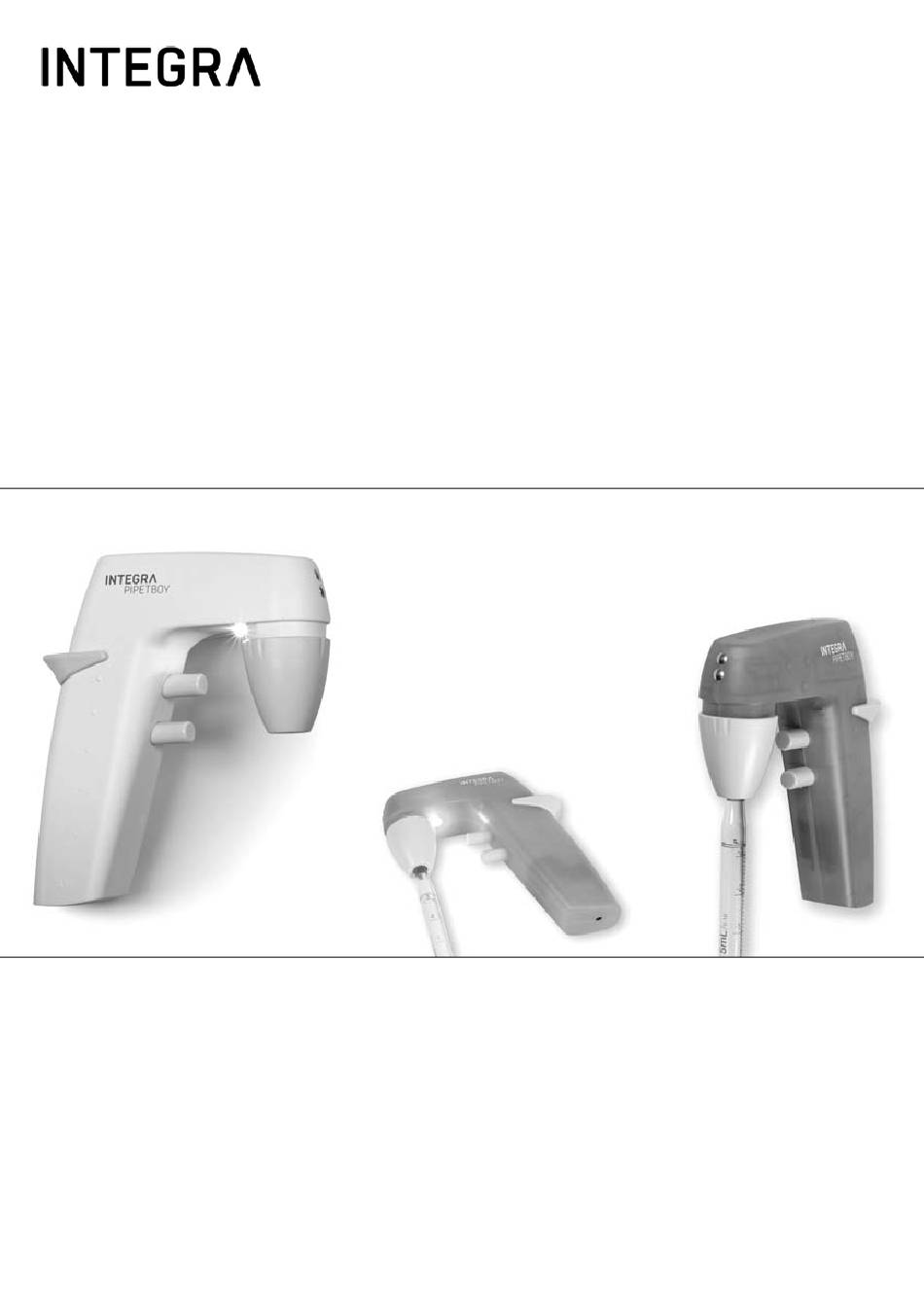

- Page 1 PIPETBOY pro Operating instructions 156750_V00...
- Page 2 Déclaration de conformité | Declaración de conformidad | Dichiarazione di conformità INTEGRA Biosciences AG – 7205 Zizers, Switzerland declares on its own responsibility that the product | erklärt in alleiniger Verantwortung, dass das Produkt | déclare sous sa responsabilité exclusive, que le produit | declara bajo su propia responsabilidad que el producto | dichiara sotto la propria responsabilità...
-
Page 3: Table Of Contents
1.2 Intended use................4 1.3 Safety notes................5 Chapter 2 Description of the device 2.1 Scope of delivery ..............6 2.2 Overview of the PIPETBOY pro ..........6 Chapter 3 Installation 3.1 Operating environment .............7 3.2 Inserting or replacing the batteries ...........7 3.3 Charging the batteries ..............7 3.4 Mounting of the wall holder............8... -
Page 4: Chapter 1 Introduction
Introduction These operating instructions contain all information required for installation, operation and maintenance of the PIPETBOY pro. This chapter informs about the symbols used in these operating instructions, the intended use of the PIPETBOY pro and the general safety instructions. -
Page 5: Safety Notes
The PIPETBOY pro corresponds to the state of the art, complies to the recognized safety regulations and is safe to operate. The PIPETBOY pro can be operated only when it is in perfect conditions and while observing these operating instructions. -
Page 6: Description Of The Device
PIPETBOY pro – Operating instructions V00 Description of the device Description of the device Scope of delivery • PIPETBOY pro device • 2 rechargeable batteries (AAA, NiMH, 1.2 V, 1000 mAh) • Mains adapter • Wall holder • Sterile filter (spare) •... -
Page 7: Chapter 3 Installation
Installation Installation Operating environment The PIPETBOY pro has been designed for use in a laboratory. It shall be operated in a dry and dust-free location with a temperature of 5-40 °C and a maximal (non-condensing) relative humidity of 80 %. -
Page 8: Mounting Of The Wall Holder
Installation Mounting of the wall holder The supplied wall holder serves to park the PIPETBOY pro. To mount the wall holder, remove the protective foil from the adhesive tape at the back of the holder and press it to the desired place. Make sure that the surface onto which the wall holder is mounted is smooth, clean and grease-free. -
Page 9: Chapter 4 Operation
< 2 ml. ARNING Do not insert pipettes with force into the PIPETBOY pro, because they can break and cause injury, particularly thin pipettes made of glass. Pipetting Press the aspiration button (1) to fill the pipette and the dispensing button (2) to empty it. -
Page 10: Troubleshooting
Troubleshooting Problem Probable cause Remedy Pipette drips Pipette is damaged or not fully Reinsert a new pipette by pushing it all the way into the (leak in the system). inserted in the nose piece (10). nose piece. Make sure that the pipette mount orientation is correct for the used pipette (see “Inserting the pipette”... -
Page 11: Chapter 5 Maintenance
Always disconnect the PIPETBOY pro from the mains when carrying out maintenance work. If the PIPETBOY pro gets soiled, it can be cleaned with a cloth moistened with soapy water or with a 70 % ethanol. Never use acetone or other solvents. The nose piece (10), the pipette mount (10c) and the filter rubber (10) can be autoclaved at 121 °C. -
Page 12: Chapter 6 Technical Data
PIPETBOY pro – Operating instructions V00 Technical Data Technical Data Pipetting speed max. 10 ml/s Batteries Type: rechargeable, AAA, NiMH, 1.2 V, 1000 mAh Charging cycles: 500-1000 (when charging as indicated) Charging time: 10 hours Initial charging should be at least 16 hours. -
Page 13: Accessories And Consumables
Accessories Part No. Charging station for parking and charging the PIPETBOY pro 156 450 Stand for for parking the PIPETBOY pro with inserted pipette and 155065 PIPETBOY and for a well organised work area VACUBOY Vacuum tweezers for picking and placing small objects such as microscopy... - Page 14 © 2010 INTEGRA Biosciences AG All rights to this documentation are reserved. In particular the rights of reproduction, processing, translation and the form of presentation lie with INTEGRA Biosciences AG. Neither the complete documentation nor parts thereof may be reproduced in any way, or stored and processed using electronic media or distributed in any other way without the written consent of INTEGRA Biosciences AG.
