Integra D-ONE Quick Start Manual

Quick Start Guide
This quick start guide is intended to provide a quick overview of your D-ONE single
channel pipetting module's key features. For detailed information, please refer to the
latest operating instructions of D-ONE and ASSIST PLUS that can be found at
www.integra-biosciences.com

Intended Use

This is a general-purpose laboratory instrument for use in research only. D-ONE is used on the
ASSIST PLUS pipetting robot for aspirating and dispensing aqueous liquids in the volume range of
0.5 –1250 μl using GripTip™ pipette tips only, see www.integra-biosciences.com. D-ONE provides
pressure-based liquid level detection and is compatible with two different GripTip sizes.

Safety information

Regardless of the listed safety notes, all locally applicable regulations must be observed.
1) This product may only be operated in a secure, protected network with trustworthy clients.
2) The pipette may only be used by properly trained personnel in a manner specified by INTEGRA
Biosciences.
3) Use only an INTEGRA battery and charging device.
4) Do not expose the battery to heat over 60 °C or mechanical stress.
5) Replace battery if the charging intervals are unusually short or if the charging takes much
longer than 4 hours.
6) Do not use or charge the instrument near flammable material or in an atmosphere with danger
of explosion.
7) Servicing work and repairs may only be performed by INTEGRA Biosciences or an authorized
after-sales service member.

Battery Charge

Low Battery
Blinking red

Getting Started

128958_V02_QSG_D-ONE_EN.docx

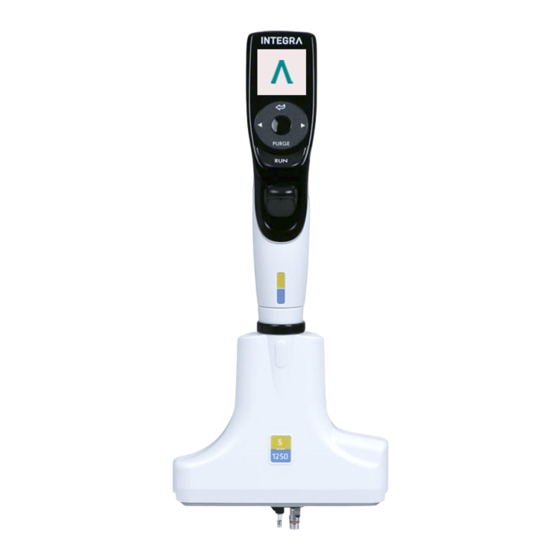

D-ONE Single Channel Pipetting Module
in different languages.
Charge the Li-ion battery completely before first use
with an INTEGRA stand, cable or on ASSIST PLUS.
The supply voltage must meet the requirements of the mains
adapter: 100–240 VAC, 50/60 Hz.
Recharging Battery
Blinking bars
1. Battery charge indicator on display
2. Back button, to navigate backward
3. Touch wheel, spin to scroll the cursor
4. OK button, to make a selection
5. Arrow buttons, for selections
6. Purge button, to empty tips
7. RUN button, to start operations
8. Tip ejector
Turn on:
Press and release RUN.
Turn off:
Press and hold the Back button for 3 seconds.
Fully Charged Battery
~ 2.5 h
Three solid bars
1/3
