Summary of Contents for Integra Fireboy Plus 144000

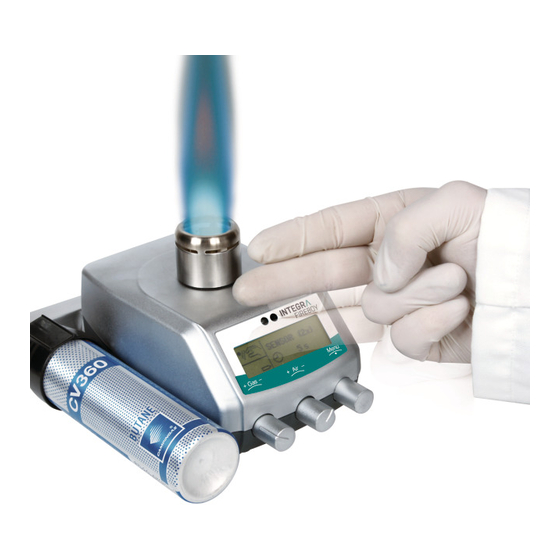

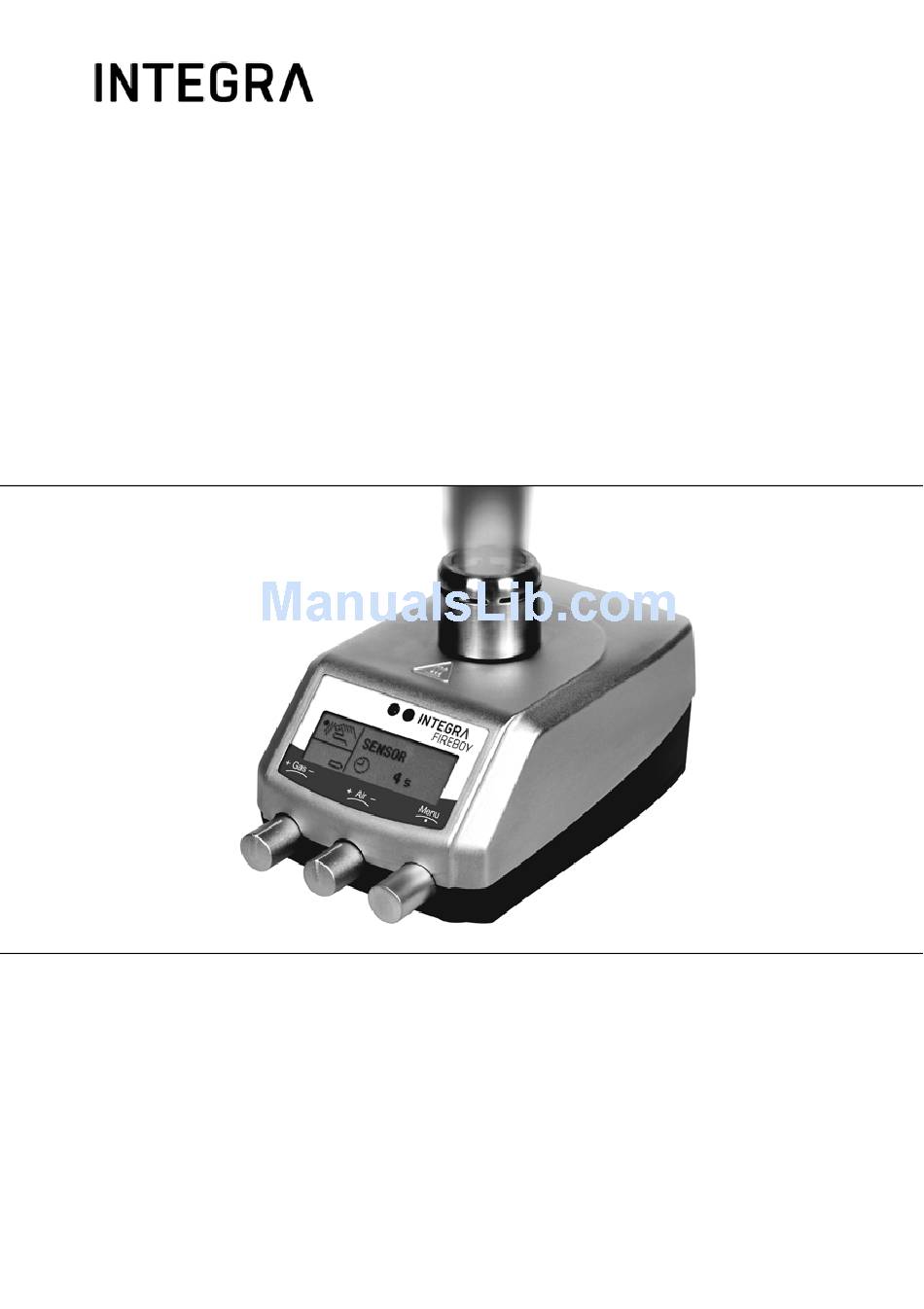

- Page 1 FIREBOY plus Operating instructions 144950_V07...
- Page 2 Declaration of conformity INTEGRA Biosciences AG – 7205 Zizers, Switzerland declares on its own responsibility that the device Description Model FIREBOY plus 144000 complies with: EU Directives (DoW: Date of Withdrawal) Before DoW After DoW Low Voltage Equipment 2006/95/EC 20.04.2016...
-
Page 3: Table Of Contents
ENSOR 4.6 Adjusting the system parameters ...........18 4.7 Working with liquids................18 4.8 Troubleshooting................19 Chapter 5 Maintenance 5.1 Cleaning and servicing ..............21 5.2 Decontamination ................21 5.3 Disposal..................22 Chapter 6 Technical data 6.1 Specifications .................23 Chapter 7 Accessories 7.1 Accessories ..................24 www.integra-biosciences.com... - Page 4 Any reproduction of parts or the entire documentation, or storage thereof on electronic media, or processing or dissemination thereof, require the prior written consent of INTEGRA Biosciences AG. These operating instructions have the part number 144950; the version is V07. They apply for firmware Version 1.n.
-
Page 5: Chapter 1 Introduction
This symbol cautions about potential material damage or data loss in a microprocessor controller. Follow the instructions. This symbol identifies important notes regarding the correct operation of the device and labor-saving features. 1.1.2 Hazard warnings on the device TTENTION Risk of burns from the flame. www.integra-biosciences.com... -
Page 6: Appropriate Use
INTEGRA Biosciences, the protection provided by the FIREBOY plus may be impaired. FIREBOY plus may not be altered in design or in any of its safety aspects. If alterations are made, INTEGRA Biosciences will be relieved from all liability for any resulting damage. Safety features of the FIREBOY plus The FIREBOY plus is equipped with the following safety devices: •... -
Page 7: Safety Notes
GLP, GMP, FDA, must be observed. Please visit our website www.integra-biosciences.com on a regular basis for up to date information regarding REACH classified chemicals contained in our products. - Page 8 • rotating it and using it upside down • using it as a cooker without the optionally available long burner head, see “7.1 Accessories” on page • carrying it by the burner head because the device may fall down INTEGRA Biosciences AG...
-
Page 9: Chapter 2 Description Of The Device
Ignites flame in the B mode. UTTON LCD display 6 Motion sensor 7 Symbol of the set operating mode or caution note. 8 Information regarding the device status. 9 Current operating mode with selected settings, e.g. burning time or residual burning time. www.integra-biosciences.com... - Page 10 Rear view 13 Switch connection (jack) 14 Mains plug socket (mains plug) 15 Gas adapter opening (for engaging) Bottom 16 Folding stand, to position device at an angle 17 Brass screw, access to the nozzle 18 Battery compartment INTEGRA Biosciences AG...
-
Page 11: Chapter 3 Installation
Connect the charger plug in the socket on FIREBOY plus and then connect to the mains. The device can be turned on or off. After about 12 hours the battery is recharged. The device may remain connected to the mains at all times. www.integra-biosciences.com... -
Page 12: Connecting Fireboy Plus To The Gas Supply
FIREBOY plus without the gas cartridge (see "Rear view" on page 10). Insert the appropriate adapter in the gas adapter opening of FIREBOY plus, making sure it audibly clicks into position. The adapter is now installed. INTEGRA Biosciences AG... - Page 13 Verify that the gas cartridge adapter is inserted and has audibly clicked into position. Ensure that the smooth side of the cap (1) points toward the device. Turn the milled knob on the cartridge adapter fully clockwise in the "OFF" direction. www.integra-biosciences.com...
- Page 14 3.3.5 Connecting to the central gas supply or to a gas cylinder Connect the tubing from the central supply or from the gas cylinder to the previously installed adapter and fix it with a clip if necessary. FIREBOY plus is now connected to the gas supply. INTEGRA Biosciences AG...
-
Page 15: Connecting The Foot Or Benchtop Switch
60 mm. The duration of continuous operation should not exceed 60 min. The parameter “Maximum burning time” must be set accordingly, see “4.6 Adjusting the system parameters” on page 18. www.integra-biosciences.com... -
Page 16: Chapter 4 Operation
Setting the burning time of 1 s - 60 min OOT SWITCH the flame. In addition, the flame can be extinguished at any time by actuating the foot switch again or by pressing the MENU KNOB. INTEGRA Biosciences AG... -
Page 17: Button Operating Mode
Setting the burning time of the 1 s - 60 min 10 s ENSOR flame. Of course the flame can be extinguished at any time by passing the sensor window again or by pressing the MENU KNOB. www.integra-biosciences.com... -
Page 18: Adjusting The System Parameters
FIREBOY plus can be used to incline the device. The inclination direction can be modified by removing the folding stand after pressing it together and inserting it on the opposite side. INTEGRA Biosciences AG... -
Page 19: Troubleshooting
Prior to ignition Burner head not added or not MISSING process, the contact added correctly. pin on the burner head Add burner head is not detected. Contact pin on burner head is contaminated. Clean the contact pin www.integra-biosciences.com... - Page 20 FLAME Failure of Electrode of the flame monitor is DETECTION flame monitor kinked or dirty. FAIL Visually inspect, if necessary clean. TECHNICAL Note number (NN) and call ERROR NN service technician. INTEGRA Biosciences AG...
-
Page 21: Chapter 5 Maintenance
Do not spray directly on the instrument but use a lint-free cloth, lightly soaked with a disinfectant and wipe dry directly after decontamination. Never use acetone or other solvents! Follow the instructions provided by the disinfectant manufacturer. www.integra-biosciences.com... -
Page 22: Disposal
Discharge the battery before disposal. Dispose of the FIREBOY plus device and the battery separately in accordance with the laws and regulations in your area governing disposal of devices containing NiMH batteries. INTEGRA Biosciences AG... -
Page 23: Chapter 6 Technical Data
Natural gas LL (~81% methane) 0.8 kW Nominal gas input pressure Propane/butane gas (liquid gas) 50 mbar Natural gas E, LL 20 mbar 1. With a new, fully charged battery in alternating operation switched on every 30s for 10s. www.integra-biosciences.com... -
Page 24: Chapter 7 Accessories
Gas cartridge adapter for 230 g butane 144 052 cartridge, e.g. Campingaz CV 300 Plus, with safety stand and connecting hose. Gas cartridge adapter for EXPRESS 444 144 053 Foot switch and connecting cable 143 200 INTEGRA Biosciences AG... - Page 25 Mains adapter JP 100 VAC 156 634 Gas safety tubing Ø 10 mm. Length 2 m, 140 055 max. pressure 100 mbar, DVGW approved Adapter for gas hose, inner diameter 10 mm 144 240 Adapter for 1/4" left-hand thread 144 227 www.integra-biosciences.com...
