PIPETBOY pro Operating instructions

156750_V11

Table of Contents

Need help?

Do you have a question about the PIPETBOY pro and is the answer not in the manual?

Questions and answers

Summary of Contents for Integra PIPETBOY pro

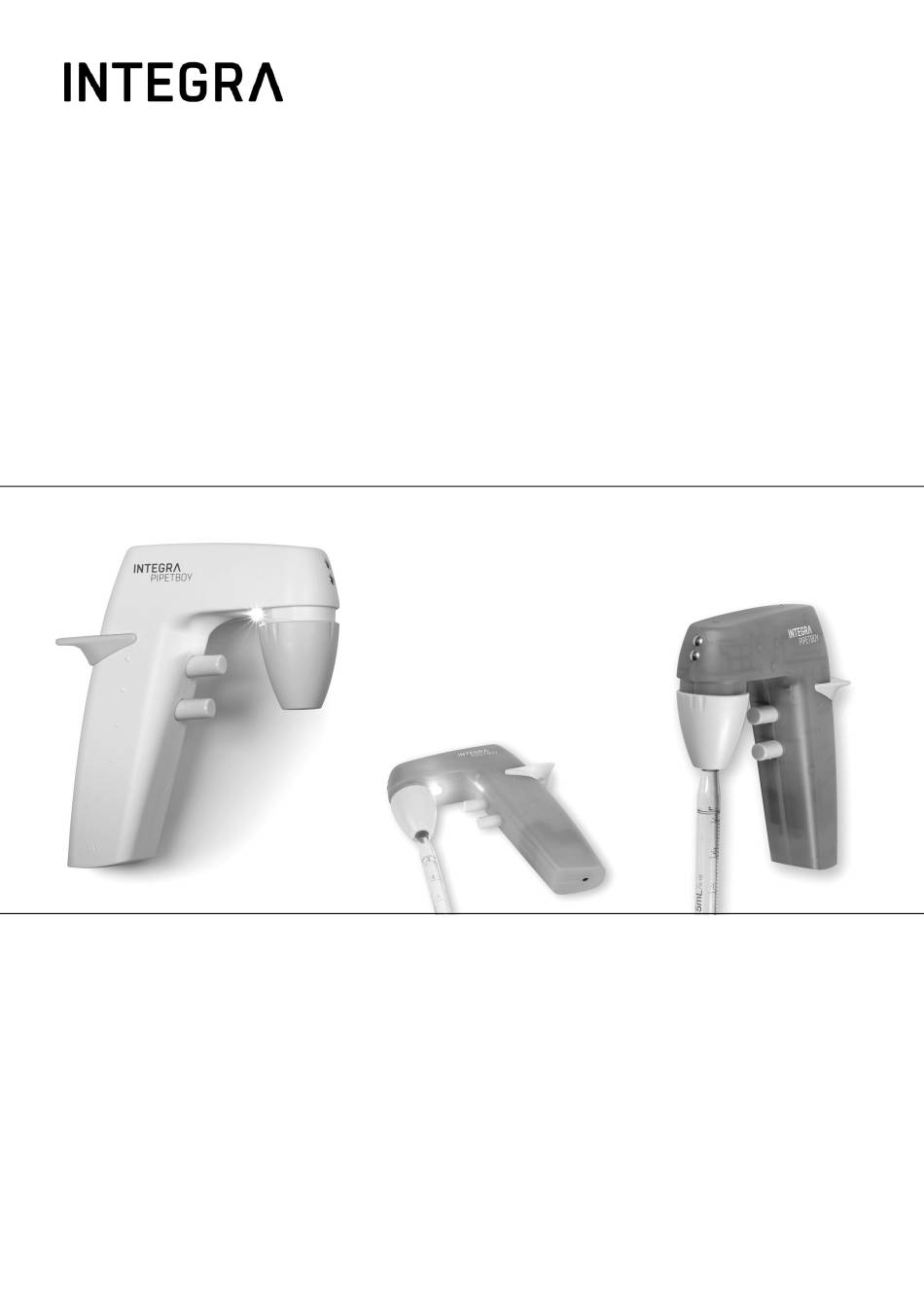

Page 1 PIPETBOY pro Operating instructions 156750_V11...
Page 2 Declaration of conformity INTEGRA Biosciences AG – 7205 Zizers, Switzerland declares on its own responsibility that the devices Description Models PIPETBOY pro 156400, 156401, 156402, 156403, 156404 Accessories 156 450, 156630, 156631, 156632, 156633, 156634, 156151 comply with: EU Directives...
Page 3 PIPETBOY pro – Declaration of conformity GBR Regulations Scope Date effective S.I. 2016/1101 Electrical equipment safety 08.12.2016 S.I. 2016/1091 Electromagnetic compatibility (EMC) 08.12.2016 S.I: 2008/2164 Batteries and accumulators regulations 26.09.2008 S.I. 2013/3113 Waste electrical and electronic equipment (WEEE) 01.01.2019 S.I. 2012/3032 Restriction of hazardous substances (RoHS) 02.01.2013...
Page 4 PIPETBOY pro – Declaration of conformity CHN Regulations Scope Date effective AQSIQ Order 5 /2001 China compulsory certification mark (CCC) 01.08.2003 safety and EMC requirements for electrical equipment Order 32/2016 Restriction of hazardous substances (RoHS) 01.07.2016 CHN Standards Scope GB4943.1-2011...
Page 5: Table Of Contents
Imprint © 2022 INTEGRA Biosciences AG Manufacturer and customer service Your local INTEGRA Biosciences representative, further information, and operating instructions in other languages can be found at www.integra-biosciences.com or are available on request info@integra-biosciences.com. INTEGRA Biosciences AG INTEGRA Biosciences Corp.
Page 6: Introduction
8) To extend the battery life-cycle, it is recommended to charge the batteries once a month if the PIPETBOY pro is not used regularly. If the PIPETBOY pro is not used for more than 3 months, remove the batteries from the instrument.
Page 7: Description Of The Device
PIPETBOY pro - Operating instructions V11 Description of the device Description of the device Scope of delivery • PIPETBOY pro device • 2 rechargeable batteries (AAA, NiMH, 1.2 V) • Mains adapter • Wall mount • Hydrophobic sterile filter 0.45 µm (spare) •...
Page 8: Installation
Cover the screw with the silicone plug (c). Charging the batteries A full charge takes 10 hours, but before the first use, PIPETBOY pro should be charged at least 16 hours. When the battery charge indicator (5) lights up red, PIPETBOY pro needs charging immediately.
Page 9 Plug the cable of the mains adapter in the socket on the side of the charging station and connect the mains adapter to the power supply. Parking PIPETBOY pro in the charging station starts charging. www.integra-biosciences.com...
Page 10: Operation
< 2 ml. ARNING Do not insert pipettes with force into PIPETBOY pro, because they can break and cause injury, particularly thin pipettes made of glass. Pipetting Press the aspiration button (1) to fill the pipette and the dispensing button (2) to empty it.
Page 11 PIPETBOY pro – Operating instructions V11 Operation www.integra-biosciences.com...
Page 12: Maintenance
PIPETBOY pro: liquid should not leak out of a filled pipette before the dispensing button is pressed. Cleaning and servicing PIPETBOY pro can be cleaned with a cloth moistened with soapy water or with a 70 % ethanol. It is recommended to change the hydrophobic filter (11b) every three months. Should the filter get wetted or soiled, it has to be changed immediately.
Page 13: Technical Data
PIPETBOY pro - Operating instructions V11 Technical Data Technical Data Specifications Pipetting speed max. 12 ml/s Batteries Type: rechargeable, AAA, NiMH, 1.2 V Charging cycles: 500-1000 (when charging as indicated) Running time: at least 4000 cycles of aspiration and dispensing of 25 ml.
Page 14 Technical Data Chemical compatibility The table below lists PIPETBOY pro parts that come into contact with the aspirated liquid or its aerosols and vapors, and rates the compatibility of these parts to a few of the chemicals commonly used in laboratories. To determine the compatibility of a component to a chemical not listed in the table, please consult one of the several tables available on the internet.
Page 15: Accessories
Accessories Part No. Charging station for parking and charging PIPETBOY pro 156 450 Stand for for parking PIPETBOY pro with inserted pipette and for a 155065 PIPETBOY and well organized work area VACUBOY Sterile module grey, complete nosepiece for PIPETBOY pro,...
