15. Make sure that fixed reducer rings are parallel to
each other.
16. Handle insertion tool with caution. They are ideally
stored in the originally package or special contain-
ers. Wear protective gloves in order to improve grip
and to further reduce the risk of injury.
17. Prior to the use of insertion tools, make sure that
all protective devices are properly fastened.
18. Prior to use, ensure that the saw blade meets the
technical requirements of this trim, chop and mitre
saw, and is properly fastened.
19. Only use the supplied saw blade for cutting wood,
never for the processing of metals.
20. Only use saw blade diameters in accordance with
the markings on the saw.
21. Use additional workpiece supports, if required for
workpiece stability.
22. Workpiece support extensions must always be se-
cured and used during work.
23. Replace table inserts when worn!
24. Avoid overheating of the saw teeth.
25. When sawing plastic, avoid melting of the plastic.
Use the appropriate saw blades for this purpose.
Replace damaged or worn saw blades immediately.
When the saw blade overheats, stop the machine.
Allow the saw blade to cool down before using the
machine again.

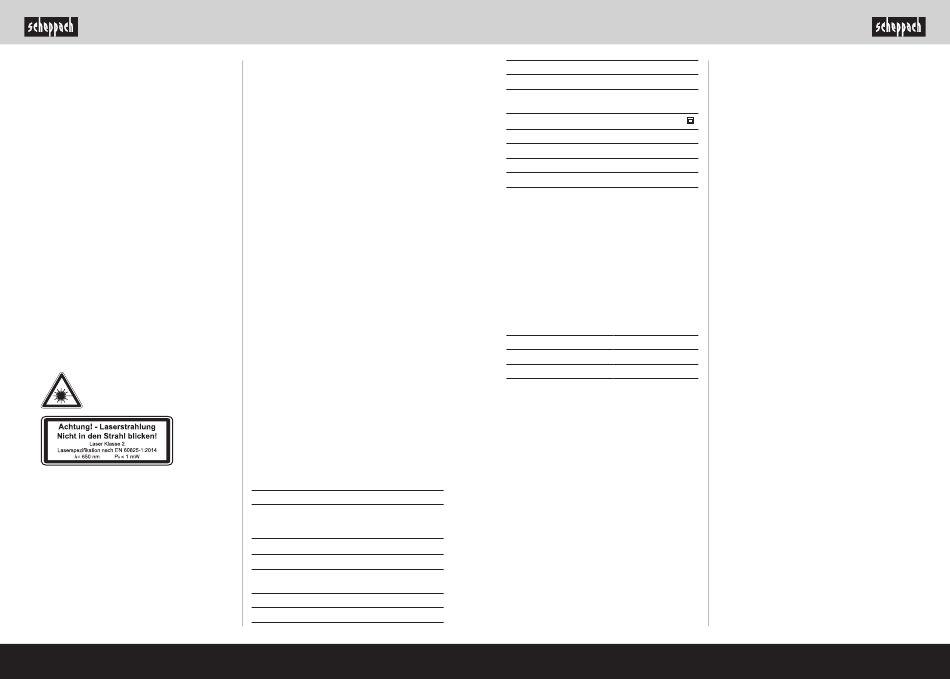

Attention: Laser radiation
Do not stare into the beam
Class 2 laser
Protect yourself and you environment from acci-
dents using suitable precautionary measures!
• Do not look directly into the laser beam with unpro-
tected eyes.
• Never look into the path of the beam.
• Never point the laser beam towards reflecting sur-
faces and persons or animals. Even a laser beam
with a low output can cause damage to the eyes.
• Caution - methods other than those specified here
can result in dangerous radiation exposure.
• Never open the laser module. Unexpected exposure
to the beam can occur.
32 | GB www.scheppach.com
• The laser may not be replaced with a different type
of laser.
• Repairs of the laser may only be carried out by the
laser manufacturer or an authorised representative.
Residual risks
The machine has been built according to the state
of the art and the recognised technical safety re-
quirements. However, individual residual risks can
arise during operation.
• Health hazard due to electrical power, with the use
of improper electrical connection cables.
• Furthermore, despite all precautions having been met,
some non-obvious residual risks may still remain.
• Residual risks can be minimised if the „safety in-
structions" and the „Proper use" are observed along
with the whole of the operating instructions.
• Do not load the machine unnecessarily: excessive
pressure when sawing will quickly damage the saw
blade, which results in reduced output of the ma-
chine in the processing and in cut precision.
• When cutting plastic material, please always use
clamps: the parts which should be cut must always
be fixed between the clamps.
• Avoid accidental starting of the machine: the oper-
ating button may not be pressed when inserting the
plug in an outlet.
• Use the tool that is recommended in this manual.
In doing so, your machine provides optimal perfor-
mance.
• Hands may never enter the processing zone when
the machine is in operation.
• Release the handle button and switch off the ma-
chine prior to any operations.
6. Technical data
Technical data 220 - 240 V~ 50Hz
Power S1* 2000 Watt
Idle speed n
0
1. Gear 3200 min
2. Gear 4500 min
Carbide saw blade ø 254 x ø 30 x 2,2 mm
Number of teeth 28
Maximum tooth width of 3 mm
saw blade
Swivel range -45° / 0°/ +45°
Mitre cut 0° bis 45° to the left
Saw width at 90°
Saw width at 45°
Saw width at 2 x 45°
(double mitre cut)
Protection class
Weight
Laser class
Wavelength of laser
Laser output
Subject to technical modifications!
* S1 operating mode, continuous duty
The work piece must have a minimum height of 3
mm and a minimum width of 10 mm.
Make sure that the workpiece is always secured
with the clamping device.
Noise
Total noise values determined in accordance with EN
62841-1.
Sound pressure level L
pA
Uncertainty K
pA
Sound power level L
WA
Uncertainty K
WA
Wear hearing protection.
The effects of noise can cause a loss of hearing
The above-mentioned noise emission values were meas-
ured in accordance with a standardised test procedure
and can be used to compare one power tool with another.
The above-mentioned noise emission values can also
be used for the preliminary assessment of exposure.
Warning:
-1
• The noise emissions during the actual use of the
-1
power tool may differ from the above-mentioned
values depending on the power tool being used, in
particular on the type of workpiece being processed.
• Try to keep emissions as low as possible, for ex-
ample by limiting your working time. In this regard,
all the operational cycle phases must be taken into
consideration (such as the times when the tool is
switched off or running idle).
340 x 90 mm 7. Before starting the equipment
240 x 90 mm
• Open the packaging and remove the device care-
240 x 45 mm
fully.
• Remove the packaging material as well as the pack-
II /
aging and transport bracing (if available).
ca. 13,6 kg • Check that the delivery is complete.
• Check the device and accessory parts for transport
2
damage.
650 nm
• If possible, store the packaging until the warranty
< 1 mW period has expired.
ATTENTION
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts! There is a risk of swal-
lowing and suffocation!
• The equipment must be set up where it can stand
securely. Secure the machine on a workbench or a
base frame with 4 screws (not included in delivery)
using the holes on the fixed saw table (15).
• Pull out the pre-installed tilt protection (35) com-
pletely and secure it with an Allen key.
97,2 dB
• Adjust the adjusting screw (36) to the level of the tab-
3 dB
letop to avoid wobbling of the machine.
110,2 dB
• All covers and safety devices have to be properly
fitted before the equipment is switched on.
3 dB
• It must be possible for the blade to run freely.
• When working with wood that has been processed
before, watch out for foreign bodies such as nails
or screws, etc.
• Before you press the ON/OFF switch check that the
saw blade is fitted correctly. Moving parts must run
smoothly.
• Before you connect the equipment to the power sup-
ply make sure the data on the rating plate are denti-
cal to the mains data.
7.1 Checking the moving saw blade guard safety
device (5)
The saw blade guard protects against accidental con-
tact with the saw blade and from chips flying around.
Check function
To do so, fold the saw downwards:
• The saw blade guard must provide free access to
the saw blade without touching other parts.
• When folding the saw upwards into the starting posi-
tion, the saw blade guard must cover the saw blade
automatically.
