Back Panel Features - Extreme Networks Extreme Management Center ExtremeControl IA-A-25 Installation Manual

C Mgmt port activity LED
D Not used
E System cold reset button
Hard Drive LED Indicator Patterns
The hard drive has two LED indicators visible from the front of the system: one is a green LED for disk
activity, and the other is amber and indicates hard drive status. The LEDs have the following states, as
described in Table
Table 5: Hard Drive Activity LED Indicator Patterns
Hard Drive Condition
Power on and drive spinning up or spinning down
Power on with drive activity
Table 6: Hard Drive Status LED Indicator Patterns
Hard Drive Condition
No access or no fault
Hard drive fault has occurred

Back Panel Features

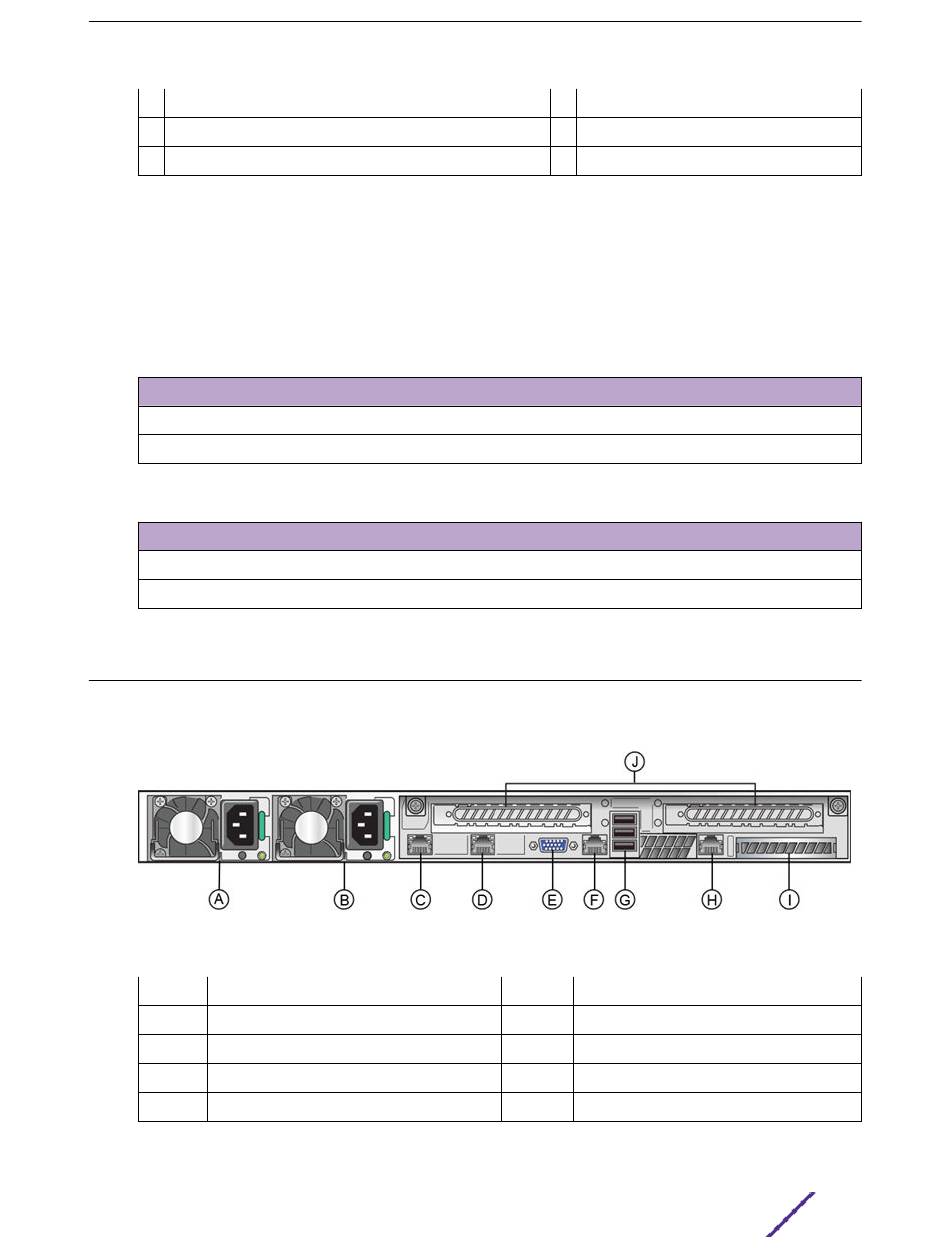

Figure 3 shows the back panel.
Figure 3: IA-A-25 Back Panel
A Power supply module #1
B Power supply module #2
C eth0
D eth1
E Video connector
Table 7 describes the LEDs for the RJ45 management port.
ExtremeControl IA-A-25 Installation Guide for version 8.1
5.
Engine Overview and Setup
H Hard drive activity LED
I Not used
J Not used
Activity LED Patterns
Off
Blinking green
Status LED Patterns
Off
Solid amber
F Serial port
G USB 2.0 ports
H Mgmt port, out of band
I I/O Module Bay
J Riser cards, Not used
9
