3 Rotate the front bezel counterclockwise to release the latches on the right end from the rack handle.
Installing the Front Bezel
Note
Before installing the bezel, you must install the rack handles. See
Rack on page 11.
To install the front bezel:
1 Lock the right end of the front bezel to the rack handle.
2 Rotate the front bezel clockwise till the left end clicks into place.
3 Lock the bezel, if needed.

Installing the Engine into a Rack

A rack mounting kit and installation guide are included with the engine. The rack mounting kit allows
you to install the engine into a four-post rack cabinet. Refer to the installation guide for complete
installation instructions.
If you are table mounting the engine, ensure at least 6 cm of clearance on all sides of the engine for
proper ventilation.
If you are installing the engine in a rack:
1 Install the rack handles by aligning a rack handle with the two holes on each side of the engine and
attaching each handle to the engine with two screws as shown in

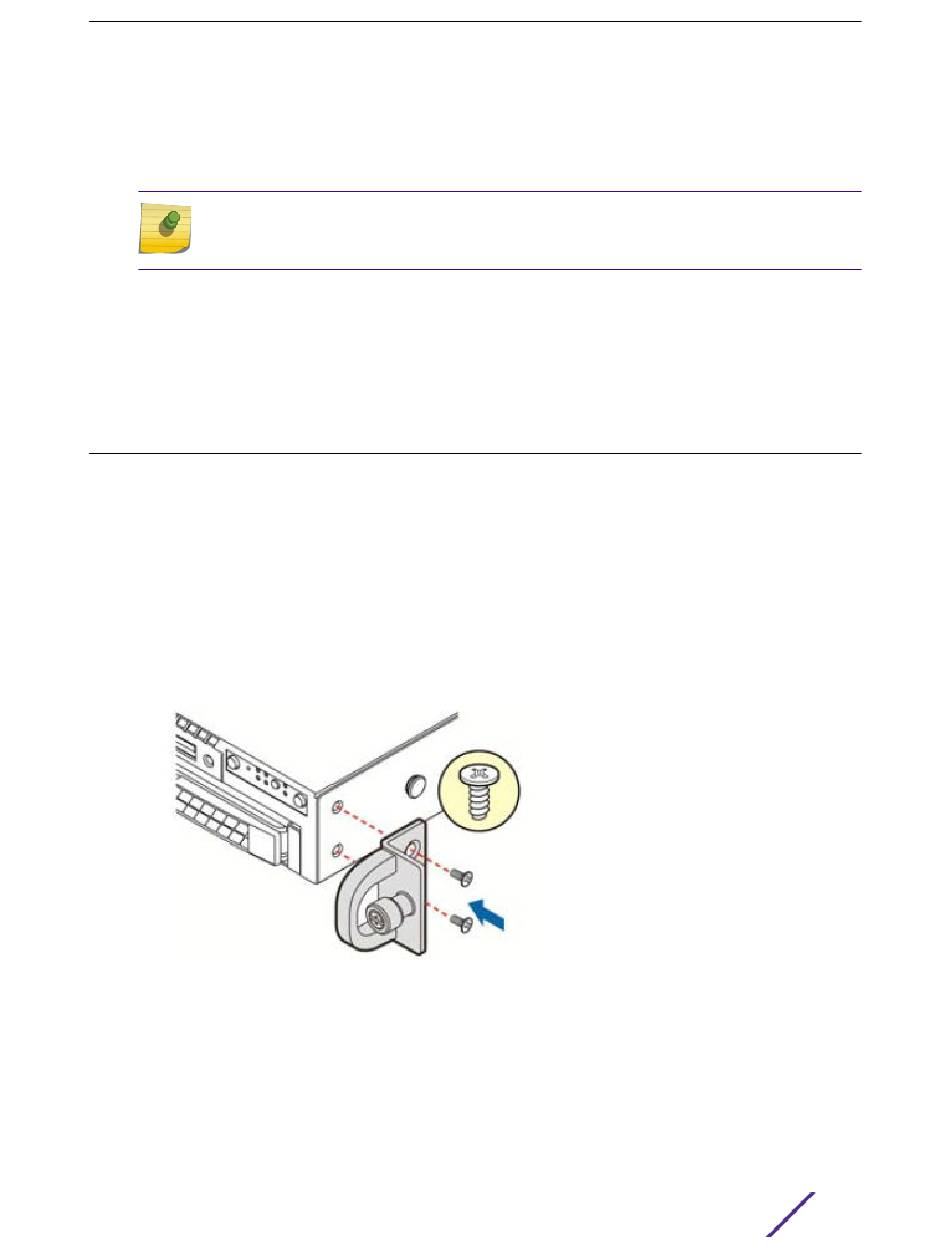

Figure 4: Installing the Rack Handles
2 Read the installation guide included with the rack mounting kit.
3 Install the rails and mount the controller in the rack as instructed.
ExtremeControl IA-A-25 Installation Guide for version 8.1
Engine Overview and Setup
Installing the Engine into a
the figure below.
11
