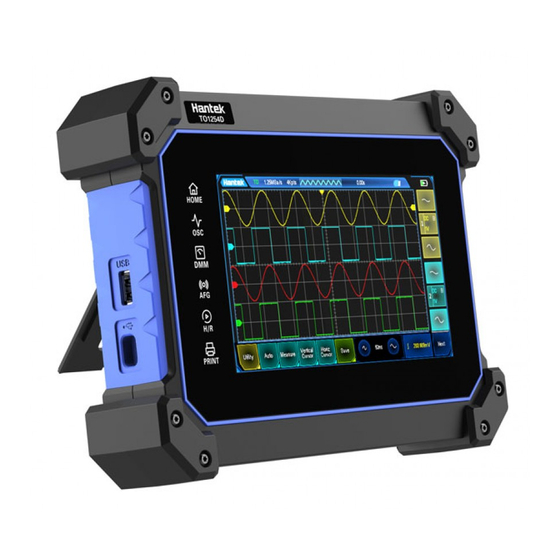

Tablet1000
series
Tablet oscilloscope
SCPI Manual
2022.05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tablet1000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hantek Tablet1000 Series

  • Page 1 Tablet1000 series Tablet oscilloscope SCPI Manual 2022.05...
  • Page 2 Hantek certified Tablet1000 series oscilloscope to meet China's national industry standards and has passed the CE certification. Contact us If you have any questions when using the products of Qingdao Hantek Electronics Co., LTD., you can obtain service and support through the following ways: Email: service@hantek.com, support@hantek.com Website: http://www.hantek.com...
  • Page 3: Table Of Contents

    :RUN ......................... 9 :STOP ....................... 9 :SINGle ......................10 :TFORCe......................10 Sampling command subsystem ................11 3.7.1 :ACQuire:AVERages ...................... 11 3.7.2 :ACQuire: MDEPth ......................11 3.7.3 :ACQuire:TYPE ....................... 12 3.7.4 :ACQuire:SRATe? ......................13 Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 4 :CURSor: MANual: SOURce ..................21 3.9.4 :CURSor: MANual:AX ..................... 22 3.9.5 :CURSor: MANual:BX ..................... 23 3.9.6 :CURSor: MANual:AY ..................... 23 3.9.7 :CURSor: MANual:BY ..................... 24 3.9.8 :CURSor: MANual: AXValue? ..................25 Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 5 Mathematical operation subsystem ..............31 3.11.1 :MATH:DISPlaY ......................32 3.11.2 :MATH: OPERator ......................32 3.11.3 :MATH: SOURce1 ......................33 3.11.4 :MATH: SOURce2 ......................33 3.11.5 :MATH: SCALe ....................... 34 3.11.6 :MATH: OFFSet ......................35 Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 6 Horizontal system command subsystem ............42 3.14.1 :TIMebase[:MAIN]:OFFSet ..................... 42 3.14.2 :TIMebase[:MAIN]:SCALe ....................43 3.14.3 :TIMebase:MODE ......................44 3.15 Trigger command subsystem ................44 3.15.1 :TRIGger:MODE ......................44 3.15.2 :TRIGger:STATus? ......................45 Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 7 :TRIGger:SLOPe:POLarity ..................53 3.15.15 :TRIGger:SLOPe:WHEN ..................53 3.15.16 :TRIGger:SLOPe:TIME0 ..................54 3.15.17 :TRIGger:SLOPe:ALEVel ..................55 3.15.18 :TRIGger:VIDeo:SOURce ..................55 3.15.19 :TRIGger:VIDeo:POLarity ..................56 3.15.20 :TRIGger:VIDeo:MODE................... 57 3.15.21 :TRIGger:VIDeo:LINE ..................... 57 Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 8 3.17.7 [:SOURce[<n>]]:OFFSet ....................68 3.17.8 [:SOURce[<n>]]:PULSe:DCYCle ..................68 3.17.9 [:SOURce[<n>]]:MOD[:STATe] ..................69 3.17.10 [:SOURce[<n>]]:MOD:TYPe ................... 70 3.17.11 [: SOURce [< n >]] : MOD: AM: INTernal: FREQuency (FM) ........71 Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 9 [:SOURce[<n>]]:MOD:AM:INTernal:FUNCtion (FM) ..........72 3.17.13 [:SOURce[<n>]]:MOD:AM[:DEPTh] ................ 72 3.17.14 [:SOURce[<n>]]:MOD:FM[:DEVIation] ..............73 3.17.15 [:SOURce[<n>]]:BURSt ................... 74 3.17.16 [:SOURce[<n>]]:BURSt:SRC .................. 75 3.18 CONFigure: command subsystem..............75 3.18.1 CONFigure:<FUNC> ...................... 76 3.18.2 CONFigure:DATA? ......................76 Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 10: Tables

    Tables Table 1.1 Model ....................3 Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD VIII...
  • Page 11: Document Overview

    Acquire menu. Document content conventions: Tablet1000 series tablet oscilloscope consists of the following models. Unless otherwise specified, this manual uses TO1254D as an example to describe the Tablet1000 series and basic operations. Model Channel Bandwidth Sampling rate...
  • Page 12 1GSa/S TO1154C 150MHz 1GSa/S TO1204C 200MHz 1GSa/S TO1254C 250MHz 1GSa/S TO1154D 150MHz 1GSa/S 25MHz TO1204D 200MHz 1GSa/S 25MHz TO1254D 250MHz 1GSa/S 25MHz TO1154AUTO 150MHz 1GSa/S 25MHz TO1204AUTO 200MHz 1GSa/S 25MHz Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 13 Document overview Model Channel Bandwidth Sampling rate Signal source Multimeter TO1254AUTO 250MHz 1GSa/S 25MHz Table 1.1 Model Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 14: Scpi Introduction

    A vertical bar is used to separate multiple parameter options. You must select one parameter when running a command. 3. Square brackets [] The contents in square brackets can be ignored. 4. Triangle brackets <> Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 15 Parameter <NR3> can be set to a real number between 1.6e-08 (16ns) and 1e +01 (10s). The query returns a real number in scientific notation format. 5. ASCII String The value can be a combination of ASCII characters. For example: Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 16 All commands are case-insensitive, so either uppercase or lowercase can be used. However, to abbreviate, you must enter all uppercase letters in the command. For example: :MEASure:ADISplay? can be abbreviated to MEAS:ADIS? Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 17: Command System

    Query the instrument ID string. Parameter None Instructions None Return format Query returns HANTEK,<model>,< serial number >,<software version >. <model> : instrument model. <serial number> : instrument serial number; <software version> : instrument software version. Example /* HANTEK, TO1254D, CN2142000000035, 2.0.0.0(220329.0) */ *IDN? Copyright ©...
  • Page 18: Rst

    1% and the amplitude should be at least 10mVpp (when the probe ratio is 1X). Return format None Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 19: Run

    None Return format None Example :RUN /* The oscilloscope starts running */ :STOP Command format :STOP Functional description Command to stop the oscilloscope. Parameter None Instructions None Return format None Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 20: Single

    Force a trigger signal to be generated. Applicable to common and single trigger mode. Parameter None Instructions Under single trigger mode, the oscilloscope will be triggered once when the trigger condition is met, and then stop. Return format Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 21: Sampling Command Subsystem

    The query returns an integer between 2 and 256. Example :ACQuire:AVERages 64 /* Set the number of times taking the average to 64*/ :ACQuire:AVERages? /* Query returns 64*/ 3.7.2 :ACQuire: MDEPth Command format Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 22: Acquire:type

    The number of times taking the average can be set by the :ACQuire:AVERages command. The more the times, the smaller the noise and the higher the vertical Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 23: Acquire:srate

    The relationship between sampling rate, storage depth and waveform length is as follows: Storage depth = sampling rate x waveform length. Return format The query returns the sample rate in scientific notation. Example :ACQuire:SRATe? /* Query return 1.250e+06*/ Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 24: Channel Command Subsystem

    Return format The query returns ON or OFF. Example :CHANnel1:BWLimit 1 /* Enable the 20MHz bandwidth limit */ :CHANnel1:BWLimit? /* Query returns 1*/ 3.8.2 :CHANnel<n>:COUPling Command format :CHANnel<n>:COUPling<coupling> :CHANnel<n>:COUPling? Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 25: Channel: Display

    ⚫ DC: Both the DC and AC components of the measured signal can pass through. ⚫ GND: Both the DC and AC components contained in the measured signal are blocked. Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 26: Channel: Invert

    The query returns 1 or 0. Example :CHANnel1:INVert ON /* Enable the waveform inverse of CH1 */ :CHANnel1:INVert? /* Query returns 1*/ 3.8.5 :CHANnel<n>: OFFSet Command format :CHANnel<n>:OFFSet <offset> :CHANnel<n>:OFFSet? Functional description Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 27: Channel: Tcal

    {1 | 2 | 3 | 4} <val> Real -100 to 100 ns 0.00 s Instructions If the sent parameter is not a configurable value, the nearest value is automatically taken. Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 28: Channel: Scale

    Return format The query returns the vertical gear in scientific notation. Example :CHANnel1:SCALe 1 /* Set CH1 vertical gear to 1V*/ :CHANnel1:SCALe? /* Query returns 1.000e+00*/ Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 29: Channel: Probe

    Enable or disable the fine-tune function of a specified channel vertical gear, or query the fine-tune function status of a specified channel vertical gear. Parameter Name Type Range Default value <n> channel {1 | 2 | 3 | 4} Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 30: Cursor Command Subsystem

    Set or query the cursor measurement mode. Parameter Name Type Range Default value <mode> Discrete {OFF|MANual} Instructions ⚫ OFF: Disable the cursor measurement function. ⚫ "MANual" : Enable the manual cursor measurement mode. Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 31: Cursor: Manual:type

    Return format The query returns X or Y. Example :CURSor:MANual:TYPE X /* Select the X cursor */ :CURSor:MANual:TYPE? /* Query returns X*/ 3.9.3 :CURSor: MANual: SOURce Command format :CURSor:MANual:SOURce <source> :CURSor:MANual:SOURce? Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 32: Cursor: Manual:ax

    (770,400) is the lower-right corner of the grid. Horizontal pixels range from 0 to 770 and vertical pixels range from 0 to 400. Return format The query returns an integer between 0 and 770. Example Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 33: Cursor: Manual:bx

    /* Set the horizontal position of cursor X2 to 200*/ :CURSor:MANual:BX? /* Query returns 200*/ 3.9.6 :CURSor: MANual:AY Command format :CURSor:MANual:AY <y> :CURSor:MANual:AY? Functional description Set or query the vertical position of cursor Y1 during manual cursor measurement. Parameter Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 34: Cursor: Manual:by

    770 and vertical pixels range from 0 to 400. Return format The query returns an integer between 0 and 400. Example :CURSor:MANual:BY 200 /* Set the vertical position of cursor Y2 to 200*/ :CURSor:MANual:BY? /* Query returns 200*/ Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 35: Cursor: Manual: Axvalue

    Query the value of X at cursor X2 when cursor measurement is performed. The unit is determined by the currently selected horizontal unit. Parameter None Instructions None Return format The query returns the X value at the current cursor X2 in scientific notation. Example Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 36: Cursor: Manual: Ayvalue

    Query the value of Y at cursor Y2 when cursor measurement is performed. The unit is determined by the currently selected vertical unit. Parameter None Instructions None Return format The query returns the Y value at the current cursor Y2 in scientific notation. Example Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 37: Cursor: Manual: Xdelta

    Query the reciprocal of the absolute value of the difference between the X values at cursor X1 and cursor X2 1/|dX| during manual cursor measurement. The unit is determined by the currently selected horizontal unit. Parameter None Instructions None Return format Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 38: Cursor: Manual: Ydelta

    The :DISPlay command can set the waveform display type, afterglow time, waveform brightness, grid type, and grid brightness. 3.10.1 :DISPlay:TYPE Command format :DISPlay:TYPE <type> :DISPlay:TYPE? Functional description Set or query the waveform display type. Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 39: Display: Grading:time

    INFinite: If the infinite afterglow is selected, when the oscilloscope displays a new waveform, the previously collected waveform will not be cleared. The noise and jitter can be measured, and accidental events can be captured. Return format Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 40: Display: Wbrightness

    :DISPlay: GRID Command format :DISPlay:GRID <grid> :DISPlay:GRID? Functional description Set and query the type of grid displayed on the screen. Parameter Name Type Range Default value <grid> Discrete {FULL|HALF|NONE} FULL Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 41: Display: Gbrightness

    :DISPlay:GBRightness 60 /* Set grid brightness to 60%*/ :DISPlay:GBRightness? /* Query returns 60*/ 3.11 Mathematical operation subsystem The :MATH command is used to set various calculation functions of inter-channel waveforms. Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 42: Math:display

    When commands :MATH: SOURce1 and/or :MATH: SOURce2 choosing FX as the parameter, the command is used to set the outer operation operator of the combinational operation. <opt> is optional within {ADD|SUBTract|MULTiply| Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 43: Math: Source1

    The query returns CHANnel1, CHANnel2, CHANnel3, or CHANnel4. Example :MATH:SOURce1 CHANnel3 /* Set the source A of the algebra operation to CH3*/ :MATH:SOURce1? /* Query returns CHANnel3*/ 3.11.4 :MATH: SOURce2 Command format :MATH:SOURce2 <src> Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 44: Math: Scale

    The settable range of the vertical gear is related to the currently selected operator and the gear of the source channel. For integral and differential operations, it is also related to the current horizontal time base. Return format Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 45: Math: Offset

    The query returns the vertical offset of the current operation result in scientific notation. Example :MATH:OFFSet 2 /* Set the vertical offset to 2V*/ :MATH:OFFSet? /* query returns 2.000000e+00*/ 3.11.7 :MATH: FFT:SOURce Command format :MATH:FFT:SOURce <src> :MATH:FFT:SOURce? Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 46: Math: Fft: Unit

    <unit> Discrete {VRMS|DB} Instructions None Return format The query returns VRMS or DB. Example :MATH:FFT:UNIT VRMS /* Set the vertical unit of FFT to VRMS*/ :MATH:FFT:UNIT? /* Query returns VRMS*/ Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 47: Math: Fft: Hcenter

    /* Set the center frequency of FFT result to 200KHz*/ :MATH:FFT:HCENter? /* Query returns 2.000e+05*/ 3.12 Measurement command subsystem 3.12.1 :MEASure:SOURce Command format :MEASure:SOURce <sour> :MEASure:SOURce? Functional description Set and query the source of the parameter currently measured. Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 48: Measure: Clear

    After one or all measurement items are cleared, you can run the :MEASure:RECover command to recover. Return format None Example Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 49: Measure: Amsource

    :MEASure:ITEM CHANnel<n>? <item> Functional description Measure any waveform parameters of a specified source, or query the measurement results of any waveform parameters of a specified source. Parameter Name Type Range Default value Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 50: Auxiliary Command Subsystem

    The :SYSTem command is used to set system settings such as sound and language. 3.13.1 :SYSTem:GAM? Command format :SYSTem:GAM? Functional description Query the number of horizontal grids on the screen. Parameter None Instructions Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 51: System: Language

    :SYSTem:LANGuage SCHinese /* Set the system language to Simplified Chinese */ :SYSTem:LANGuage? /* Query returns SCHinese*/ 3.13.3 :SYSTem:RAM? Command format :SYSTem:RAM? Functional description Query the number of analog channels of the instrument. Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 52: Horizontal System Command Subsystem

    200ms/div) (-0.5 × MemDepth/SampleRate) to (10 × MainScale)(When the horizontal timebase is equal to or greater than 200ms/div,i.e., slow scan mode) ⚫ STOP:(-MemDepth/SampleRate) to (1s + 0.5 × MemDepth/SampleRate) - Roll mode ⚫ RUN: This command is unavailable. Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 53: Timebase[:Main]:Scale

    The query returns primary time base gear in scientific count form. Example /* Set the primary base gear to 200μs/div*/ : TIMebase: MAIN: SCALe (0.0002) :TIMebase:MAIN:SCALe? /* Query returns 2.0000000e-04 */ Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 54: Timebase:mode

    3.15 Trigger command subsystem The :TRIGger command is used to set the trigger system. 3.15.1 :TRIGger:MODE Command format :TRIGger:MODE <mode> :TRIGger:MODE? Functional description Select or query the trigger mode. Parameter Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 55: Trigger:status

    AUTO: The oscilloscope runs automatically. ⚫ STOP: The oscilloscope is stopped running. Return format Query returns TD, WAIT, AUTO, or STOP. Example :TRIGger:STATus? /* Query returns STOP*/ 3.15.3 :TRIGger:SWEep Command format Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 56: Trigger:holdoff

    Command format :TRIGger:HOLDoff <value> :TRIGger:HOLDoff? Functional description Set or query the hold-off time. The default unit is s. Parameter Name Type Range Default value <value> Real 8ns to 10s 20ns Instructions Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 57: Trigger:edge:source

    The digital probe must be connected to oscilloscope when a digital channel is used as a trigger source channel. Return format Query returns CHANnel1, CHANnel2, CHANnel3, CHANnel4. Example :TRIGger:EDGe:SOURce CHANnel1 /* Set the trigger source to CHANnel1*/ :TRIGger:EDGe:SOURce? /* Query returns CHANnel1*/ Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 58: Trigger:edge:slope

    Set or query the trigger level for edge trigger, in units consistent with the current amplitude of the selected source. Parameter Name Type Range Default value (-5×VerticalScale-OFFSet) to (5× <level> Real VerticalScale-OFFSet) Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 59: Trigger:pulse:source

    Return format The query returns CHAN1, CHAN2, CHAN3, and CHAN4. Example :TRIGger:PULSe:SOURce CHANnel1 /* Set the trigger source to CH1*/ :TRIGger:PULSe:SOURce? /* Query returns CHANnel1*/ 3.15.9 :TRIGger:PULSe:POLarity Command format Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 60: Trigger:pulse:when

    NEQUal!= (not equal to the time value) : Trigger when the positive pulse width or negative pulse width of the input signal is not equal to the set pulse width. [Pulse width error is 5%]. Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 61: Trigger:pulse:width

    The query returns the pulse width value in scientific notation. Example : the TRIGger PULSe, WIDTh of 0.000003 /* Set the pulse width to 3μs*/ :TRIGger:PULSe:WIDTh? /* Query returns 3.000000e-06 */ 3.15.12 :TRIGger:PULSe:LEVel1 Command format Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 62: Trigger:slope:source

    Functional description Set or query the trigger source of slope trigger. Parameter Name Type Range Default value {CHANnel1|CHANnel2|CHANnel3|CHAN <source> Discrete CHANnel1 nel4} Instructions Can only be analog channel trigger. Return format Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 63: Trigger:slope:polarity

    :TRIGger:SLOPe:POLarity POSItive /* Set the rising slope */ :TRIGger:SLOPe:POLarity? /* Query returns POSItive*/ 3.15.15 :TRIGger:SLOPe:WHEN Command format :TRIGger:SLOPe:WHEN <when> :TRIGger:SLOPe:WHEN? Functional description Set or query the trigger condition of slope trigger. Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 64: Trigger:slope:time0

    Set or query the time value when the slope trigger occurs. The default unit is s. Parameter Name Type Range Default value <time> Real 8ns to 10s 20ns Instructions This command applies to trigger conditions. Return format Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 65: Trigger:slope:alevel

    : the TRIGger: SLOPe: ALEVel 0.16 /* Set the trigger level to 160mV*/ :TRIGger:SLOPe:ALEVel? /*Query returns 1.600000e-01*/ 3.15.18 :TRIGger:VIDeo:SOURce Command format :TRIGger:VIDeo:SOURce <source> :TRIGger:VIDeo:SOURce? Functional description Select or query the trigger source of video trigger. Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 66: Trigger:video:polarity

    <polarity> Discrete {POSitive|NEGative} POSitive Instructions None Return format The query returns POS or NEG. Example :TRIGger:VIDeo:POLarity POSitive /* Set the video polarity to positive */ :TRIGger:VIDeo:POLarity? /* Query returns POS*/ Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 67: Trigger:video:mode

    /* Query returns ODD_FIELD */ 3.15.21 :TRIGger:VIDeo:LINE Command format :TRIGger:VIDeo:LINE <line> :TRIGger:VIDeo:LINE? Functional description Set or query the number of lines when the video trigger occurs and the synchronization type is LINE. Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 68: Trigger:video:standard

    720P: The frame rate is 60 frames per second, the TV scan line is 625 lines, scanning line by line. 1080P: The frame rate is 60 frames per second, and the TV scan line is 625 lines, Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 69: Trigger:video:level

    The query returns the trigger level in scientific notation. Example : the TRIGger: VIDeo: LEVel 0.16 /* Set the trigger level to 160mV*/ :TRIGger:VIDeo:LEVel? /*Query returns 1.600000e-01*/ 3.15.24 :TRIGger:TIMeout:SOURce Command format :TRIGger:TIMeout:SOURce <source> Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 70: Trigger:timeout:time

    Set or query the timeout period of timeout trigger. The default unit is s. Parameter Name Type Range Default value <NR3> Real 20ns to 10s 20ns Instructions None Return format The query returns the timeout period in scientific notation. Example Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 71: Trigger:timeout:level

    /* Query returns 1.600000e-01*/ 3.16 Waveform reading command subsystem The :WAVeform command is used to read waveform data and related settings. 3.16.1 :WAVeform:DATA:ALL? Command format :WAVeform:DATA:ALL? Functional description Read waveform data. Parameter Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 72 0 indicates digital channel 3 and digital channel 4 closed. 1 indicates digital channel 4 open. 2 indicates digital channel 3 open. 3 indicates digital channel 3 and digital channel 4 open. Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 73: Source[]] Command Subsystem

    Enables or disables the output of the a specified signal channel, or queries the output status of a specified signal channel. Parameter Name Type Range Default value When omitted, operations are <n> Discrete performed on source 1 by Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 74: Source[]]:Output[]:Impedance

    Discrete {OMEG|FIFTy} OMEG Instructions OMEG: high resistance; Looking: 50Ω; Return format The query returns OMEG or FIFT. Example :SOURce1:OUTPut:IMPedance FIFTy /* Set the output impedance of source 1 to 50Ω*/ Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 75: Source[]]:Frequency

    The query returns a frequency value in scientific notation, such as 2.0000000e+05. Example :SOURce1:FREQuency 1000 /* Set the output frequency of source 1 to 1kHz*/ :SOURce1:FREQuency? /*Query returns 1.0000000e+03*/ 3.17.4 [:SOURce[<n>]]:FUNCtion Command format Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 76: Source[]]:Function:ramp:symmetry

    Parameter Name Type Range Default value When omitted, operations are <n> Discrete performed source default. <val> Real 0 to 100 Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 77: Source[]]:Voltage

    Send [:SOURce[<n>]]:OUTPut[<n>]:IMPedance command to set the output impedance. Return format The query returns an amplitude value in scientific notation, such as 1.0000000e+00. Example :SOURce1:VOLTage 2 /* Set the output amplitude of source 1 to 2V*/ Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 78: Source[]]:Offset

    The query returns a DC offset in scientific notation, such as 1.0000000e+00. Example :SOURce1:VOLTage:OFFSet 0.5 /*set the DC offset of source 1 to 500mVDC*/ :SOURce1:VOLTage:OFFSet? /*Query returns 5.0000000e-01*/ 3.17.8 [:SOURce[<n>]]:PULSe:DCYCle Command format Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 79: Source[]]:Mod[:State]

    Enable or disable the modulation of a specified signal channel, or query the modulation status of a specified signal channel. Parameter Name Type Range Default value When omitted, operations <n> Discrete are performed on source 1 by default. <bool> Boolean {{1|ON}|{0|OFF}} 0|OFF Instructions Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 80: Source[]]:Mod:type

    Sine wave, square wave, triangle wave and noise can be selected as the modulation waveform. Return format The query returns AM or FM. Example :SOURce1:MOD:TYPe AM /* Set the modulation type of source 1 to AM*/ :SOURce1:MOD:TYPe? /* Query returns AM*/ Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 81: Source [< N >]] : Mod: Am: Internal: Frequency (Fm)

    [:SOURce[<n>]]:MOD:FM:INTernal:FUNCtion to select. Return format The query returns an integer. Example :SOURce1:MOD:AM:INTernal:FREQuency 100 /* Set the AM modulated wave frequency of source 1 to 100Hz*/ :SOURce1:MOD:AM:INTernal:FREQuency? /* Query returns 100*/ Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 82: Source[]]:Mod:am:internal:function (Fm)

    The query returns SIN, SQUAre, RAMP. Example :SOURce1:MOD:AM:INTernal:FUNCtion SQUare /* Set the AM modulation waveform of source 1 to square wave */ :SOURce1:MOD:AM:INTernal:FUNCtion? /* Query returns SQUAre*/ 3.17.13 [:SOURce[<n>]]:MOD:AM[:DEPTh] Command format Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 83: Source[]]:Mod:fm[:Deviation]

    Set or query the FM frequency offset of a specified source channel. The default unit is Parameter Name Type Range Default value When omitted, operations <n> Discrete are performed on source 1 Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 84: Source[]]:Burst

    Set or query the number of burst output cycles of a signal source. Parameter Name Type Range Default value When omitted, operations are <n> Discrete performed on source 1 by default. <cnt> Real 0 to 2^19 Instructions None Return format Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 85: Source[]]:Burst:src

    /* Query returns DSO*/ 3.18 CONFigure: command subsystem The CONFigure command enables you to set and query a multimeter on the multimeter interface. Only for the machines with the multimeter function. Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
  • Page 86: Configure:

    /* Set the multimeter to capacitance */ CONFigure: FUNC? /* Query returns DMM_TYPE_CAPA*/ 3.18.2 CONFigure:DATA? Command format CONFigure:DATA? Functional description Read the measured value from the multimeter. Parameter None Instructions None Tablet1000 programming manual Copyright © Qingdao Hantek Electronics Co., LTD...
  • Page 87 Command system Return format The query is returned. Example CONFigure:DATA? /* Query is returned*/ Copyright © Qingdao Hantek Electronics Co., LTD Tablet1000 programming manual...
