Option 2
1.
Open the Account page and add an account.
2.
Select the Connection option.
3.

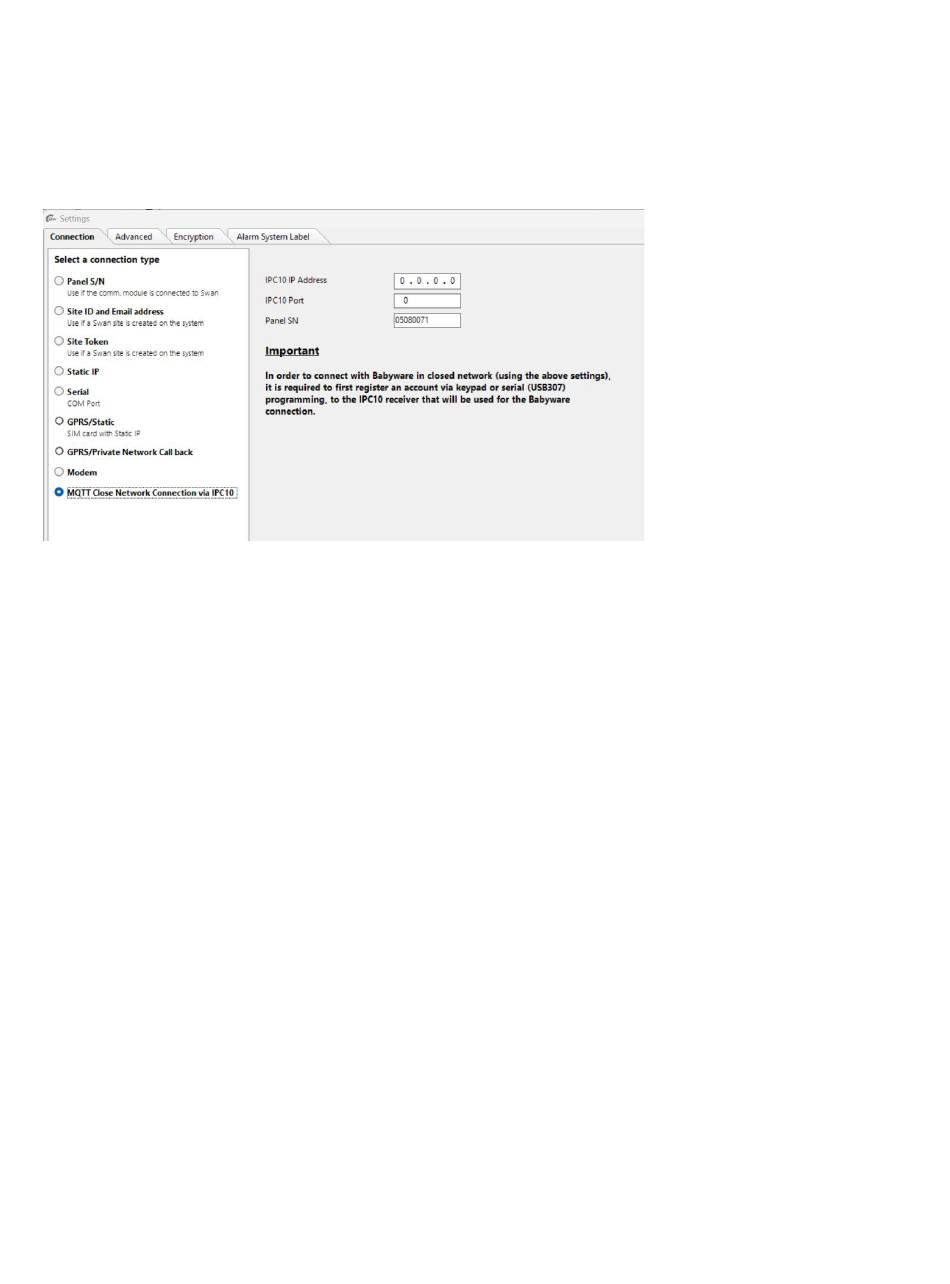

Select the option MQTT Close Network Connection via IPC10.
4.
Enter the IPC10 IP address, port and panel serial number.
5.
Select OK and add the panel ID, PC password, and connect to the panel.
NOTE: Configuring the reporting with BabyWare will require serial port connection, with a 307USB.
Firmware Upgrade
1) Firmware upgrading is available from the BlueEye app using the installer Menu, (or Infield software).
2) Select the site from the sites list.
3) Enter the PC password in the field and press Connect.
4) Select Modules Programming.
5) Select Modules Updates.
6) Select IP150+MQ.
7) The list of firmware available will appear, select the firmware to use.
Reset IP150+MQ to Default Settings
To reset the IP150+MQ module to its default settings, ensure that the module is turned on and then insert a
pin/straightened paper clip (or similar) into the pinhole located between the two I/O LEDs. Press down gently until you
feel some resistance; hold it down for approximately five seconds. When the I/O and RX/TX LEDs start flashing,
release it, and then press it again (Figure 4). The I/O and RX/TX LEDs will remain lit during the reset.
Firmware Version Fallback
To revert the IP150+MQ module to its previously installed firmware version, unplug the power cable from the
panel and insert a pin/straightened paper clip (or similar object) into the pinhole located between the two I/O LEDs.
Press down gently until you feel some resistance; plug in the power cable while holding the pin down for
approximately five seconds and release it when the I/O 2 LED starts flashing (Figure 4). The I/O LED will turn solid
and start blinking (resetting to the backup version). Once complete, the IP150+MQ will reboot automatically to the
previously installed firmware version.
Page 9
