Paradox IP150+ Programming Manual

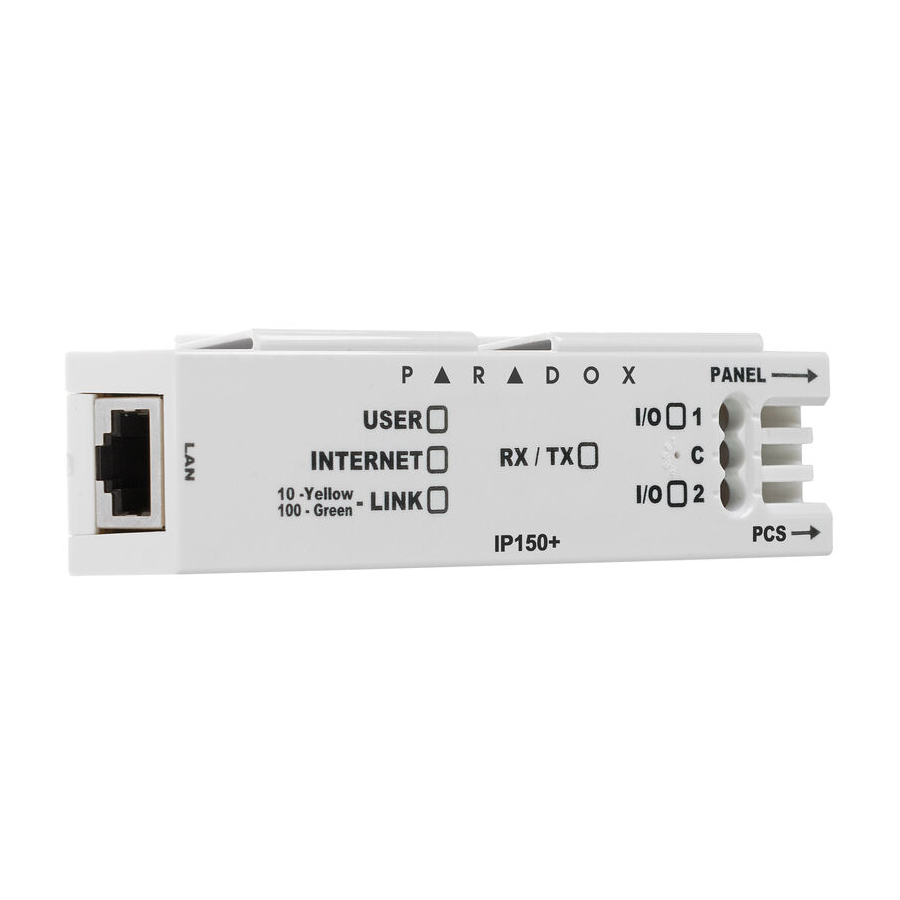

IP150+ Internet Module
Web Programming Guide

Introduction

The IP150+ Internet Module provides access to Paradox systems. With the IP150+,
connecting to a system is possible with the Insite GOLD application, PC software for
programming, upgrade and monitoring, as well as reporting to the central station by
connecting to Paradox receivers.

Connecting via IP150+ Internet Module

In order to connect to your IP150+, you will need the following information:
• IP address and port
• Panel Master code
To connect with your system from an external computer:
1) Open a web browser (e.g., Google Chrome).
2) In the address bar, enter IP address and Port number or open IP exploring tools and
double-click on the IP device you wish to connect to.
3) Log in using your panel master code.
IP150+-EP00

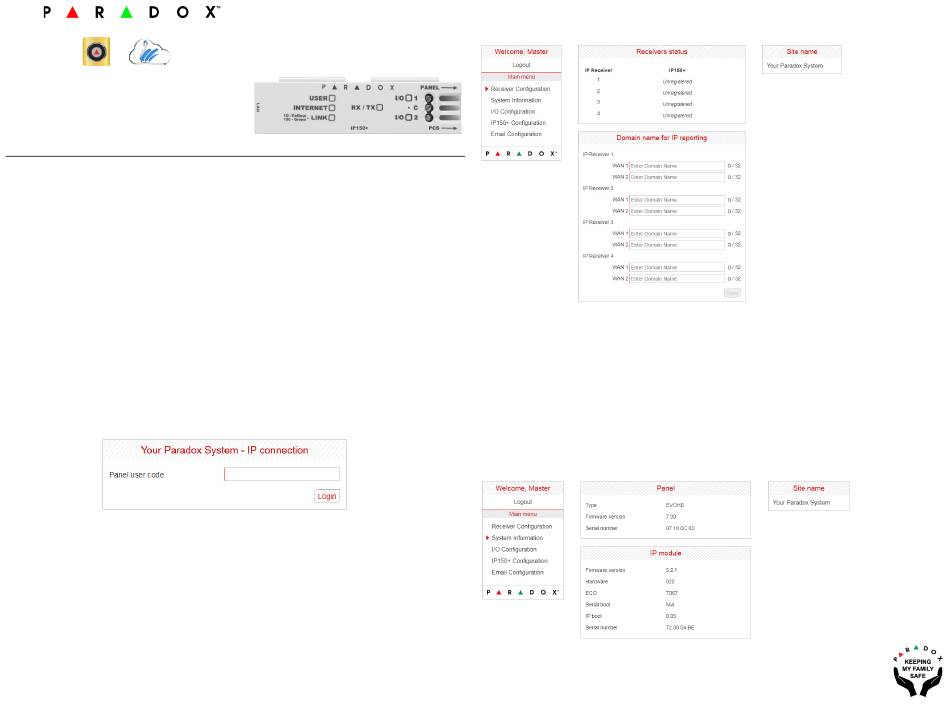

Receiver Configuration Screen

The Receiver Configuration Screen allows you to configure your module for IP Reporting.

Receiver Status

The IP150+ module status information is displayed in this section.

Domain Name for IP Reporting

Enter a DNS with a DNS or DDNS provider. Also, enter your DNS in the section WAN1, WAN2.
An IP address must be programmed into the reporting section of the control panel for the
Domain Name field to be accessible and functional.

System Information Screen

The system information screen contains important hardware and software information on both
your security system, your IP150+ module, and PCS module (if present), and panel. The PCS
module section is only visible if a PCS module is detected.
