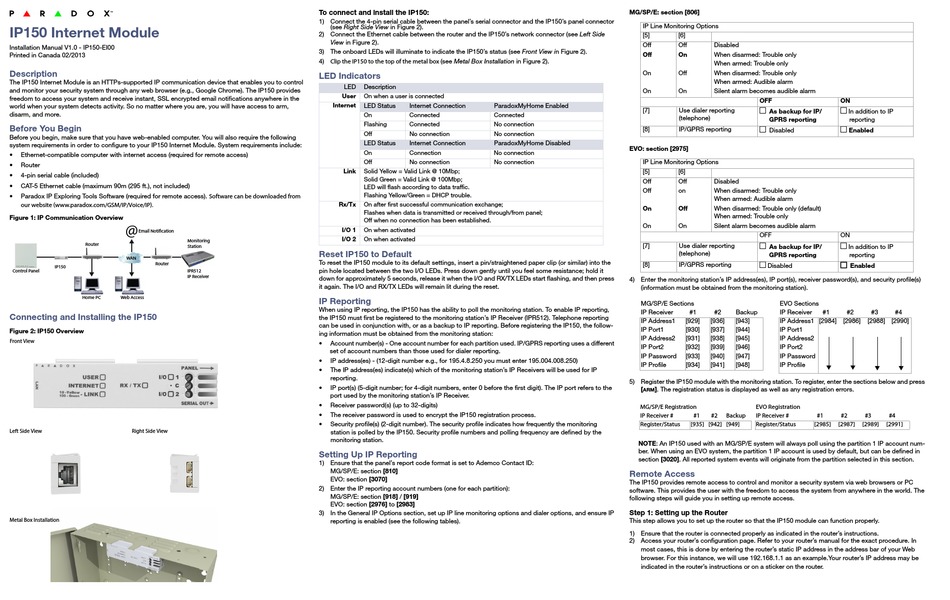

Paradox IP150 Installation Manual

IP150 Internet Module
Installation Manual V1.0 - IP150-EI00
Printed in Canada 02/2013
Description
The IP150 Internet Module is an HTTPs-supported IP communication device that enables you to control
and monitor your security system through any web browser (e.g., Google Chrome). The IP150 provides
freedom to access your system and receive instant, SSL encrypted email notifications anywhere in the
world when your system detects activity. So no matter where you are, you will have access to arm,
disarm, and more.
Before You Begin
Before you begin, make sure that you have web-enabled computer. You will also require the following
system requirements in order to configure to your IP150 Internet Module. System requirements include:
• Ethernet-compatible computer with internet access (required for remote access)
• Router
• 4-pin serial cable (included)
• CAT-5 Ethernet cable (maximum 90m (295 ft.), not included)
• Paradox IP Exploring Tools Software (required for remote access). Software can be downloaded from
our website (www.paradox.com/GSM/IP/Voice/IP).
Figure 1: IP Communication Overview
@
Email Notification
Router
WAN
Router
IP150
Control Panel
Home PC Web Access
Connecting and Installing the IP150
Figure 2: IP150 Overview
Front View
Left Side View Right Side View
Metal Box Installation
To connect and install the IP150:
1) Connect the 4-pin serial cable between the panel's serial connector and the IP150's panel connector
(see Right Side View in Figure 2).
2) Connect the Ethernet cable between the router and the IP150's network connector (see Left Side
View in Figure 2).
3) The onboard LEDs will illuminate to indicate the IP150's status (see Front View in Figure 2).
4) Clip the IP150 to the top of the metal box (see Metal Box Installation in Figure 2).
LED Indicators
LED Description
User On when a user is connected
Internet LED Status
On
Flashing
Off
LED Status
On
Off
Link Solid Yellow = Valid Link @ 10Mbp;
Solid Green = Valid Link @ 100Mbp;
LED will flash according to data traffic.
Flashing Yellow/Green = DHCP trouble.
Rx/Tx On after first successful communication exchange;
Flashes when data is transmitted or received through/from panel;
Off when no connection has been established.
I/O 1 On when activated
I/O 2 On when activated
Monitoring
Station
Reset IP150 to Default
To reset the IP150 module to its default settings, insert a pin/straightened paper clip (or similar) into the
pin hole located between the two I/O LEDs. Press down gently until you feel some resistance; hold it
IPR512
IP Receiver
down for approximately 5 seconds, release it when the I/O and RX/TX LEDs start flashing, and then press
it again. The I/O and RX/TX LEDs will remain lit during the reset.
IP Reporting
When using IP reporting, the IP150 has the ability to poll the monitoring station. To enable IP reporting,
the IP150 must first be registered to the monitoring station's IP Receiver (IPR512). Telephone reporting
can be used in conjunction with, or as a backup to IP reporting. Before registering the IP150, the follow-
ing information must be obtained from the monitoring station:
• Account number(s) - One account number for each partition used. IP/GPRS reporting uses a different
set of account numbers than those used for dialer reporting.
• IP address(es) - (12-digit number e.g., for 195.4.8.250 you must enter 195.004.008.250)
• The IP address(es) indicate(s) which of the monitoring station's IP Receivers will be used for IP
reporting.
• IP port(s) (5-digit number; for 4-digit numbers, enter 0 before the first digit). The IP port refers to the
port used by the monitoring station's IP Receiver.
• Receiver password(s) (up to 32-digits)
• The receiver password is used to encrypt the IP150 registration process.
• Security profile(s) (2-digit number). The security profile indicates how frequently the monitoring
station is polled by the IP150. Security profile numbers and polling frequency are defined by the
monitoring station.
Setting Up IP Reporting
1) Ensure that the panel's report code format is set to Ademco Contact ID:
MG/SP/E: section [810]
EVO: section [3070]
2) Enter the IP reporting account numbers (one for each partition):
MG/SP/E: section [918] / [919]
EVO: section [2976] to [2983]
3) In the General IP Options section, set up IP line monitoring options and dialer options, and ensure IP
reporting is enabled (see the following tables).
Internet Connection ParadoxMyHome Enabled
Connected Connected
Connected No connection
No connection No connection
Internet Connection ParadoxMyHome Disabled
Connection No connection
No connection No connection
MG/SP/E: section [806]
IP Line Monitoring Options
[5] [6]
Off Off Disabled
Off On When disarmed: Trouble only
When armed: Trouble only
On Off When disarmed: Trouble only
When armed: Audible alarm
On On Silent alarm becomes audible alarm
OFF

[7] Use dialer reporting
As backup for IP/
(telephone)
GPRS reporting

[8] IP/GPRS reporting
Disabled
EVO: section [2975]
IP Line Monitoring Options
[5] [6]
Off Off Disabled
Off on When disarmed: Trouble only
When armed: Audible alarm
On Off When disarmed: Trouble only (default)
When armed: Trouble only
On On Silent alarm becomes audible alarm
OFF

[7] Use dialer reporting
As backup for IP/
(telephone)
GPRS reporting

[8] IP/GPRS reporting
Disabled
4) Enter the monitoring station's IP address(es), IP port(s), receiver password(s), and security profile(s)
(information must be obtained from the monitoring station).
MG/SP/E Sections EVO Sections
IP Receiver #1 #2 Backup IP Receiver
IP Address1 [929] [936] [943] IP Address1 [2984] [2986]
IP Port1 [930] [937] [944] IP Port1
IP Address2 [931] [938] [945] IP Address2
IP Port2 [932] [939] [946] IP Port2
IP Password [933] [940] [947] IP Password
IP Profile [934] [941] [948] IP Profile
5) Register the IP150 module with the monitoring station. To register, enter the sections below and press
[ ]. The registration status is displayed as well as any registration errors.
ARM
MG/SP/E Registration EVO Registration
IP Receiver # #1 #2 Backup IP Receiver #
Register/Status [935] [942] [949] Register/Status
NOTE: An IP150 used with an MG/SP/E system will always poll using the partition 1 IP account num-
ber. When using an EVO system, the partition 1 IP account is used by default, but can be defined in
section [3020]. All reported system events will originate from the partition selected in this section.
Remote Access
The IP150 provides remote access to control and monitor a security system via web browsers or PC
software. This provides the user with the freedom to access the system from anywhere in the world. The
following steps will guide you in setting up remote access.
Step 1: Setting up the Router
This step allows you to set up the router so that the IP150 module can function properly.
1) Ensure that the router is connected properly as indicated in the router's instructions.
2) Access your router's configuration page. Refer to your router's manual for the exact procedure. In
most cases, this is done by entering the router's static IP address in the address bar of your Web
browser. For this instance, we will use 192.168.1.1 as an example.Your router's IP address may be
indicated in the router's instructions or on a sticker on the router.
ON

In addition to IP
reporting

Enabled
ON

In addition to IP
reporting

Enabled
#1 #2 #3 #4
[2988] [2990]
#1 #2 #3 #4
[2985] [2987] [2989] [2991]
