Summary of Contents for Briteq BT-MAGICFLASH
-
Page 3: Before Use

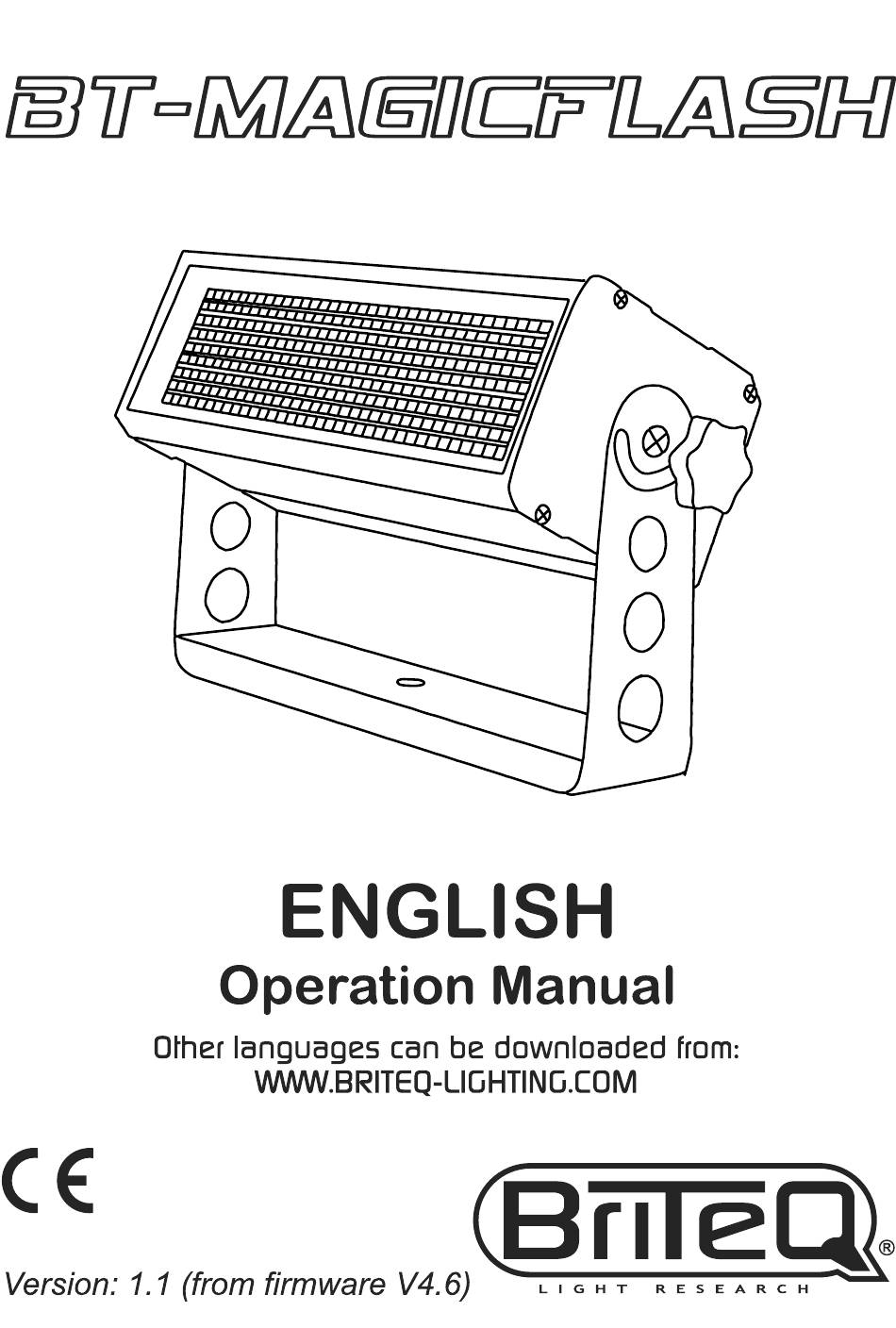

ENGLISH OPERATION MANUAL OPERATION MANUAL ® Thank you for buying this Briteq product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES • Powerful LED strobe with 9 separately controllable segments! •... -
Page 4: Safety Instructions
• Please use the original packing when the device is to be transported. • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. BRITEQ 2/11 BT-MAGICFLASH ®... - Page 5 9. BRACKET: multifunctional and very stable design for both floor and truss mounting. Prepared to install omega brackets, optionally available from Briteq. The projector can be directed in any direction. 10. COOLING FAN: during its operation the projector produces heat that must be dissipated. The fan inside the projector must be able to evacuate the heat in the most effective way.
-
Page 6: Overhead Rigging
• Once the correct address shows on the display, press the [ENTER] button to confirm. • Press the [ESC.] button to return to the standard display. BRITEQ 4/11 BT-MAGICFLASH ®... - Page 7 • Special [PIX Mode]: different ways to control the dimmer of the different sections (pixel control). See the different DMX-charts in this user manual to make your choice. • Once the correct option shows on the display, press the [ENTER] button to select. BRITEQ 5/11 BT-MAGICFLASH ®...
- Page 8 • Normal: Segments numbered from left to right while standing in front of the strobe. • Invert: Segments numbered from right to left while standing in front of the strobe. • Press the [ESC.] button to confirm and return to the menu. BRITEQ 6/11 BT-MAGICFLASH ®...
-
Page 9: Electrical Installation
• The DMX-protocol is a widely used high speed signal to control intelligent light equipment. You need to “daisy chain” your DMX controller and all the connected units with a good quality balanced DMX-cable. Both XLR-3pin and XLR-5pin connectors are used, however XLR-3pin is more popular. BRITEQ 7/11 BT-MAGICFLASH ®... -
Page 10: Dmx Charts
PIXEL EFFECT 1 (slow ↔ fast) 042-083 PIXEL EFFECT 2 (slow ↔ fast) 084-125 PIXEL EFFECT 3 (slow ↔ fast) 126-167 PIXEL EFFECT 4 (slow ↔ fast) 168-209 PIXEL EFFECT 5 (slow ↔ fast) 210-255 PIXEL EFFECT 6 (slow ↔ fast) BRITEQ 8/11 BT-MAGICFLASH ®... - Page 11 PIXEL EFFECT 3 (slow ↔ fast) 126-167 PIXEL EFFECT 4 (slow ↔ fast) 168-209 PIXEL EFFECT 5 (slow ↔ fast) 210-255 PIXEL EFFECT 6 (slow ↔ fast) 1CH PIXEL MODE Value What It Does 000-255 Dimmer (0% - 100%) BRITEQ 9/11 BT-MAGICFLASH ®...
-
Page 12: Maintenance
• Clean with a soft cloth using normal glass cleaning products. • Always dry the parts carefully. Attention: We strongly recommend internal cleaning to be carried out by qualified personnel! BRITEQ 10/11 BT-MAGICFLASH ®... -
Page 13: Specifications
0°C to 40°C Size: 336 x 126 (103) x 200 (212) mm Weight: 4,0 kg The information might be modified without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ 11/11 BT-MAGICFLASH ®...
