Summary of Contents for Briteq BT-GLOWPANEL
-
Page 3: Before Use

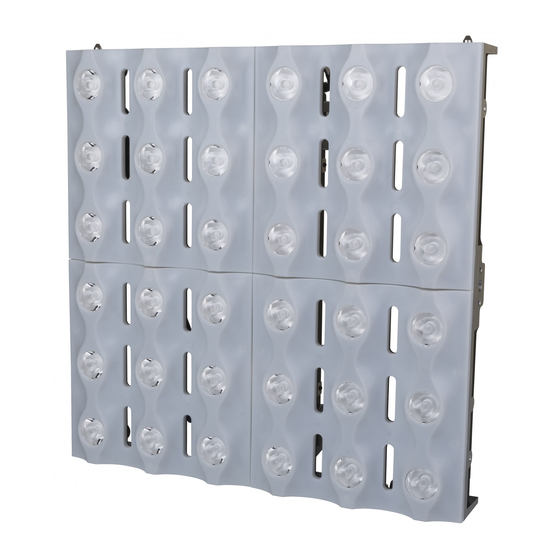

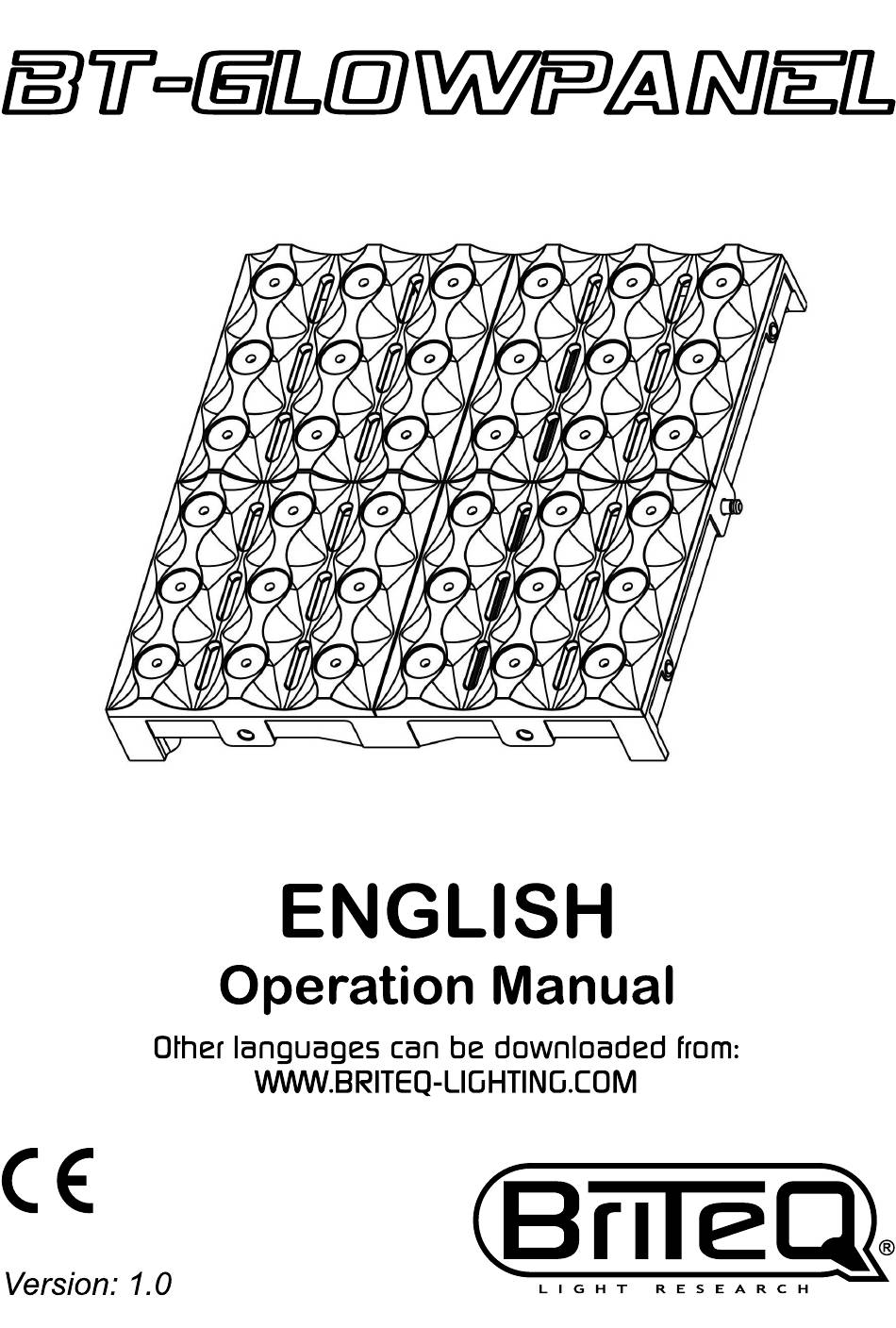

ENGLISH OPERATION MANUAL OPERATION MANUAL ® Thank you for buying this Briteq product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES • The unit is equipped with 36 extremely effective very narrow 4.5° lenses, in combination with powerful and reliable 3W warm white leds. -
Page 4: Safety Instructions
• The housing and the lenses must be replaced if they are visibly damaged. • Please use the original packing when the device is to be transported. • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. BRITEQ 2/23 BT-GLOWPANEL ®... - Page 5 4. [▲] button: used to browse the setup menu and increase the value of a selected parameter. 5. [▼] button: used to browse the setup menu and decrease the value of a selected parameter BRITEQ 3/23 BT-GLOWPANEL ®...
-
Page 6: Overhead Rigging
• The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal. BRITEQ 4/23 BT-GLOWPANEL ®... - Page 7 ENGLISH OPERATION MANUAL BRITEQ 5/23 BT-GLOWPANEL ®...
- Page 8 ENGLISH OPERATION MANUAL BRITEQ 6/23 BT-GLOWPANEL ®...
-
Page 9: Setup Menu
• Use ▲/▼ buttons to select the desired mode: [Letter] or [Number] • Press the [ENTER] button to confirm the selected mode and change the value. • Letter : from A to Z • Number : from 0 to 9 BRITEQ 7/23 BT-GLOWPANEL ®... - Page 10 • Press the [ENTER] button: [Test…] starts blinking. The fixture runs a continuous test. • Press the [ENTER] or [MENU] button to stop the test. • Press the [MENU] button for 2 seconds to leave the setup menu. BRITEQ 8/23 BT-GLOWPANEL ®...
-
Page 11: Electrical Installation
• Press the [ENTER] button : shows the installed firmware version. The firmware of this unit can be upgraded using the Briteq Firmware Updater (order code : 4319) with Windows® software. More information about this can be found in the user manual of the Firmware Updater and / or our website: www.briteq-lighting.com... - Page 12 • First put the projectors in the desired DMX-mode: see the different DMX-charts and choose the one that suits you best. • Give all projectors a start address: each projector shows its start + end address, make sure that the addresses do not overlap! BRITEQ 10/23 BT-GLOWPANEL ®...
-
Page 13: Dmx Charts
Green color dimmer 0-100% 000-255 Blue color dimmer 0-100% 7CH Mode : DMX-value function remarks Channel 000-007 Blackout 008-067 White Pixels full on Channel 1 = 068 to 127 000-007 Blackout 008-015 Program 1 016-023 Program 2 BRITEQ 11/23 BT-GLOWPANEL ®... - Page 14 Channel 1 = 128 to 187 000-015 Blackout 016-035 Number "0" 036-055 Number "1" 056-075 Number "2" 076-095 Number "3" 096-115 Number "4" 116-135 Number "5" 136-155 Number "6" 156-175 Number "7" 176-195 Number "8" 196-215 Number "9" BRITEQ 12/23 BT-GLOWPANEL ®...
- Page 15 Full on 140-181 Ramp up effect (slow ↔ fast) 182-231 Ramp down effect (slow ↔ fast) 232-239 Full on 240-247 Strobe Sound triggered 248-255 Full on 000-255 Red color dimmer 0-100% 000-255 Green color dimmer 0-100% BRITEQ 13/23 BT-GLOWPANEL ®...
- Page 16 104-111 Program 13 112-119 Program 14 120-127 Program 15 128-135 Program 16 136-143 Program 17 144-151 Program 18 152-159 Program 19 160-167 Program 20 168-175 Program 21 176-183 Program 22 184-191 Program 23 192-199 Program 24 BRITEQ 14/23 BT-GLOWPANEL ®...
- Page 17 076-084 Letter "G" 085-093 Letter "H" 094-102 Letter "I" 103-111 Letter "J" 112-120 Letter "K" 121-129 Letter "L" 130-138 Letter "M" 139-147 Letter "N" 148-156 Letter "O" 157-165 Letter "P" 166-174 Letter "Q" 175-183 Letter "R" BRITEQ 15/23 BT-GLOWPANEL ®...
- Page 18 Pixel 10 dimmer 0-100% 000-255 Pixel 11 dimmer 0-100% 000-255 Pixel 12 dimmer 0-100% 000-255 Pixel 13 dimmer 0-100% 000-255 Pixel 14 dimmer 0-100% 000-255 Pixel 15 dimmer 0-100% 000-255 Pixel 16 dimmer 0-100% 000-255 Pixel 17 dimmer 0-100% BRITEQ 16/23 BT-GLOWPANEL ®...
- Page 19 040-047 Program 5 048-055 Program 6 056-063 Program 7 064-071 Program 8 072-079 Program 9 080-087 Program 10 088-095 Program 11 096-103 Program 12 104-111 Program 13 112-119 Program 14 120-127 Program 15 128-135 Program 16 BRITEQ 17/23 BT-GLOWPANEL ®...
- Page 20 Channel 37 = 188 to 247 000-021 Blackout 022-030 Letter "A" 031-039 Letter "B" 040-048 Letter "C" 049-057 Letter "D" 058-066 Letter "E" 067-075 Letter "F" 076-084 Letter "G" 085-093 Letter "H" 094-102 Letter "I" 103-111 Letter "J" BRITEQ 18/23 BT-GLOWPANEL ®...
- Page 21 Pixel 2 dimmer 0-100% 000-255 Pixel 3 dimmer 0-100% 000-255 Pixel 4 dimmer 0-100% 000-255 Pixel 5 dimmer 0-100% 000-255 Pixel 6 dimmer 0-100% 000-255 Pixel 7 dimmer 0-100% 000-255 Pixel 8 dimmer 0-100% 000-255 Pixel 9 dimmer 0-100% BRITEQ 19/23 BT-GLOWPANEL ®...
- Page 22 Blue color dimmer 0-100% Panel 3 000-255 Red color dimmer 0-100% 000-255 Green color dimmer 0-100% 000-255 Blue color dimmer 0-100% 000-255 Red color dimmer 0-100% Panel 4 000-255 Green color dimmer 0-100% 000-255 Blue color dimmer 0-100% BRITEQ 20/23 BT-GLOWPANEL ®...
-
Page 23: Maintenance
36x 3W WW (2700 – 3000K) CREE leds – 144x 0,5W SMD Lamp: RGB leds Size: 50x50x8,4cm Weight: 8,5 kg The information might be modified without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ 21/23 BT-GLOWPANEL ®... - Page 24 ENGLISH OPERATION MANUAL DIMENSIONS BRITEQ 22/23 BT-GLOWPANEL ®...
