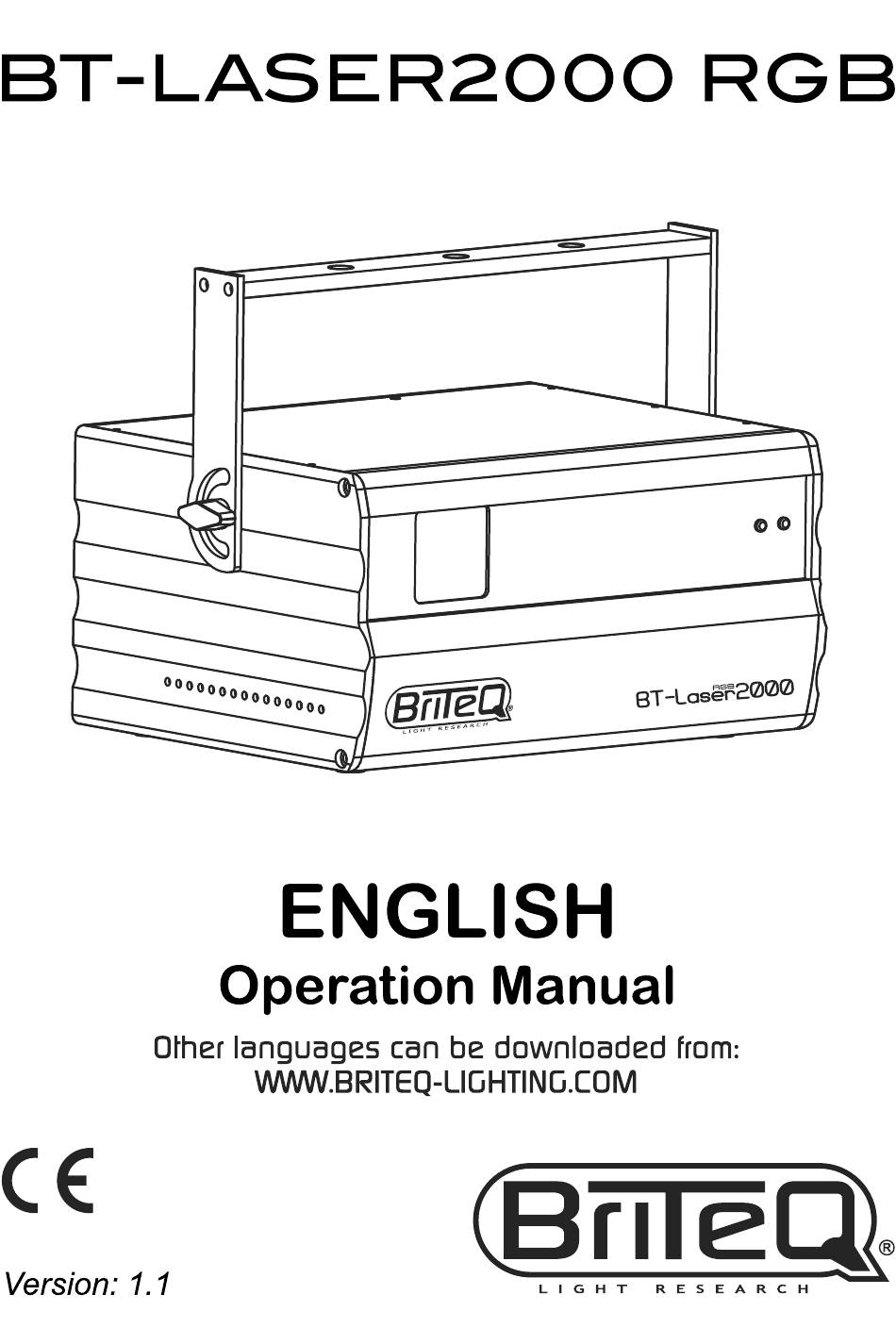

Summary of Contents for Briteq BT-LASER2000 RGB
-
Page 3: Before Use
• This single source laser guarantees perfect alignment of the beams and colors with perfect white as a result. • Thanks to 20kHz scanners this “BT-LASER2000 RGB" projects rock steady sharp RGB- images! • 100% ILDA compatible for full flexibility! •... -
Page 4: Safety Instructions
• Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual. Check the contents: Check that the carton contains the following items: • BT-LASER2000 RGB • 2 keys (for key switch) • Mains cable • Operating instructions •... -
Page 5: Laser Safety Instructions
The user must always inform himself on the legal instructions valid in his country and apply them to his situation. Please note that BRITEQ cannot be made liable for damages caused by incorrect installations and unskilled operation! - Page 6 Class 4 laser product. IEC/EN 60825-1:2014 Wavelength: 500mW Red CW laser (λ = 650nm) 500mW Green CW laser (λ = 520nm) 1000mW Blue CW laser (λ = 450nm) Laser radiation: CW >500mW DESCRIPTION: BRITEQ 4/12 BT-LASER2000 RGB ®...
-
Page 7: Overhead Rigging
17. [ILDA INPUT]: used to connect the laser to an ILDA certified interface of a computer, see further for more information. 18. [ILDA THROUGH]: to link the ILDA signal to the next “BT-LASER2000 RGB” unit. 19. Cooling inlet: Make sure to never cover this cooling inlet! 20. -
Page 8: Slave Mode
• Press the [ENTER] button to confirm your choice. You can connect several BT-LASER2000 RGB lasers together: just put the first unit of the chain in one of these standalone modes and all the other units in [“Slave mode”] to make them all work in perfect sync! Note: When no music is detected, the laser output will be shut off (blackout). -
Page 9: Ilda Control
“3” = the number of times this show should be repeated 5) DMX MODE: The laser can be controlled by any standard DMX-controller in 2 different DMX-modes: • 1 CHANNEL MODE: for extremely easy setup and use! (display shows “DMX CH1”) BRITEQ 7/12 BT-LASER2000 RGB ®... - Page 10 86 Patterns as shown in PATTERN LIST PATTERN 000-005 Laser Blackout 006-010 NO Strobing CH 3 Strobe 011-199 Strobing from slow to fast 200-255 Strobing to Sound 000-125 X position X Moving 126-185 Moving from slow to fast BRITEQ 8/12 BT-LASER2000 RGB ®...
- Page 11 White, red, green, blue 4 colors looping 187-203 Blue, yellow, purple, cyan 4 colors looping 204-220 Seven colors looping 221-237 Random color 238-255 Color changing to sound 000-063 Original pattern CH13 064-127 Pattern with bright points BRITEQ 9/12 BT-LASER2000 RGB ®...
-
Page 12: Pattern Chart
ENGLISH USER MANUAL 128-191 Pattern with blanking 192-255 Points to make pattern PATTERN CHART With DMX-channels 2 you can select one of the pre-programmed patterns: 000-050 051-101 102-152 153-203 204-254 BRITEQ 10/12 BT-LASER2000 RGB ®... -
Page 13: Other Settings
EN 60825-1:2014 for Laser Safety Beam divergence: 2 mrad MPE / NOHD: Not relevant, the beam is continuously scattered and moves in all directions (no stationary laser beam) Size (WxHxD): 26cm x 18,5cm x 15,5cm Weight: 5,05kg BRITEQ 11/12 BT-LASER2000 RGB ®... - Page 14 ENGLISH USER MANUAL Every information is subject to change without prior notice. You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ 12/12 BT-LASER2000 RGB ®...
