Specifications - Briteq BT-MAGICFLASH Operation Manual

ENGLISH

SPECIFICATIONS

This unit is radio-interference suppressed. This product meets the requirements of the current European and
national guidelines. Conformity has been established and the relevant statements and documents have been
deposited by the manufacturer.
Mains Input:
Power consumption:
Fuse:
Power connections:
DMX connections:
DMX channels used:
Lamp:
Beam Angle:
Special effects:
IP-Rating:
Operating temperature (T

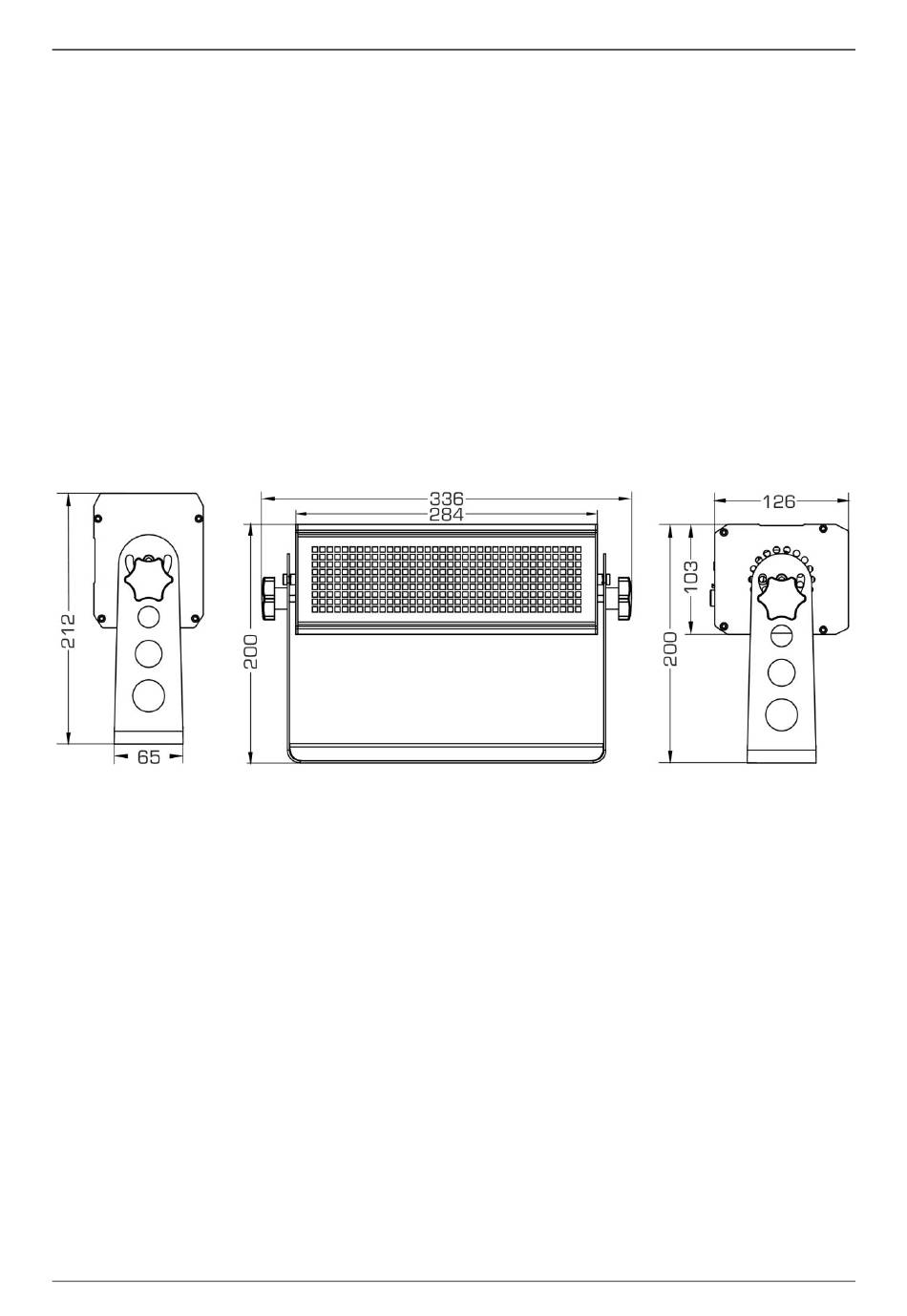

Size:
Weight:
You can download the latest version of this user manual on our website: www.briteq-lighting.com
BRITEQ
®
AC 200 - 240V, 50/60Hz
250 Watt
250V 4A slow blow (20mm glass)
16A Power in/out linking capacity.
3pin-XLR male / female
10 different modes (1ch to 13ch)
324 white strobe leds
Color temp: 4500K / CRI > 90
120°
9 segments
IP22
): 0°C to 40°C
a
336 x 126 (103) x 200 (212) mm
4,0 kg
The information might be modified without prior notice
11/11
OPERATION MANUAL
BT-MAGICFLASH
