Summary of Contents for Briteq BTI-BEAMBAR18

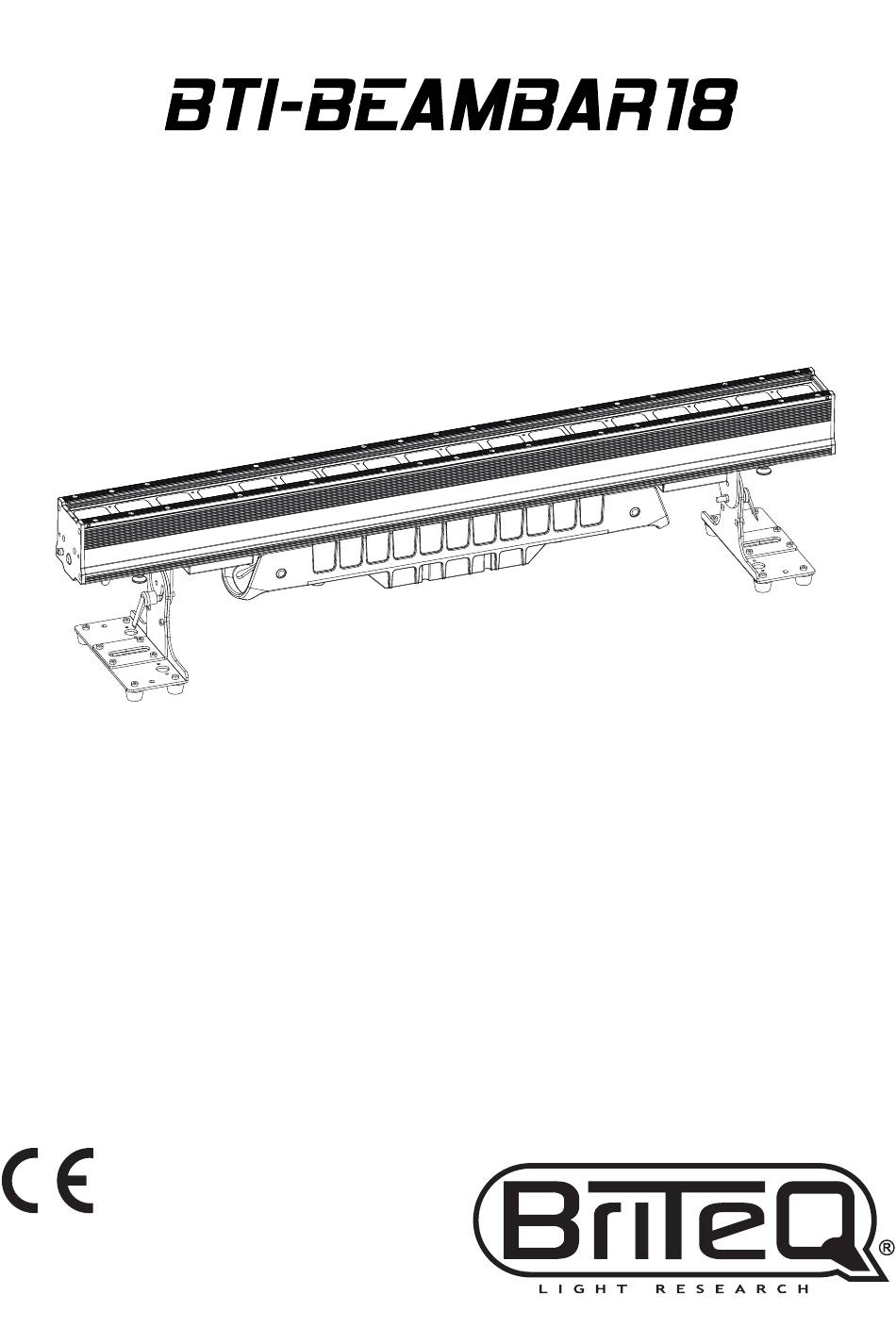

- Page 1 ENGLISH Operation Manual Other languages can be downloaded from: WWW.BRITEQ-LIGHTING.COM Version: 1.0...
-
Page 3: Before Use

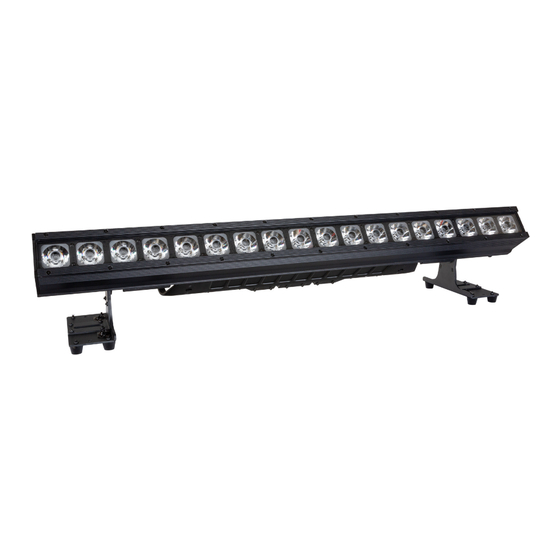

FEATURES • BTI-BEAMBAR18 is a very versatile LED Pixel mapping bar, excellent for many rental jobs, TV-studios, concert stages, discotheques and many more. • Equipped with 18 extremely effective 6° narrow lenses, in combination with powerful 25W RGBL LEDs •... -
Page 4: Safety Instructions
• Please use the original packing when the device is to be transported. • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. BRITEQ 2/23 BTI-BEAMBAR18 ®... - Page 5 10. COUPLER MECHANISM: the coupler mechanism makes it possible to quickly connect and align two or a long line of projectors together. Please proceed as described. BRITEQ 3/23 BTI-BEAMBAR18 ®...
-
Page 6: Overhead Rigging
• The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal. BRITEQ 4/23 BTI-BEAMBAR18 ®... -
Page 7: Setup Menu
Auto Full Linear Dimmer curve Square Linear S-Curve Dimmer speed 0-1,5s 0,471s Fixture settings Pixel order A Pixel order Pixel order A Pixel order B Green White balance Blue Lime 1200Hz PWM frequency 2400Hz 2400Hz 3600Hz BRITEQ 5/23 BTI-BEAMBAR18 ®... -
Page 8: Channel Mode
Temp Info LED Temp Fan 1: xxx% Fan Speed Fan 2: xxx% Error Info Information 01 Dimmer DMX values 02 Dimmer fine … BTI-BEAMBAR18 Model Info 0x21220058xxxx Firmware version [Version] Dimmer Static … Manual Disabled General operation of the setup menu: •... -
Page 9: Dmx Address
• Use ▼/▲ buttons to select the desired networked universe. The universe is shown in both decimal and Net/Sub-net values for easy conversion. • For sACN use ▼/▲ buttons to select the desired priority value. • Once the correct address shows on the display, press the ENTER button to save it. BRITEQ 7/23 BTI-BEAMBAR18 ®... -
Page 10: Dimmer Curve
DIMMER CURVE Used to set the dimmer curve of the master dimmer. • Press the ▼/▲ buttons to browse the menu until the required function shows up. • Press the ENTER button: the values can be changed BRITEQ 8/23 BTI-BEAMBAR18 ®... -
Page 11: Dimmer Speed
PWM frequency on all units. Display Invert Used to flip the display (turn it 180°). • Press the ▼/▲ buttons to browse the menu until the required function shows up. • Press the ENTER button: the values can be changed BRITEQ 9/23 BTI-BEAMBAR18 ®... - Page 12 • Press the ENTER button: you can monitor the incoming DMX-signal, functions and values are displayed. • Press the ▼/▲ buttons to select the channel that you want to monitor. Model info Shows the RDM label and UID Firmware version Shows the current firmware version BRITEQ 10/23 BTI-BEAMBAR18 ®...
-
Page 13: Electrical Installation
Art-Net is nothing more than a protocol for transmitting DMX512 over an Ethernet network, developed by Artistic Licence Engineering (UK) Ltd. Thanks to the much bigger bandwidth it is possible to send more than 256 DMX-universes in one time. BRITEQ 11/23 BTI-BEAMBAR18 ®... - Page 14 This reduces the delays between unit and also improves reliability of the installation. • Internally the selected DMX-universe is treated as a normal DMX-signal so further setup of the DMX- address, channel mode etc. should be done as usual. BRITEQ 12/23 BTI-BEAMBAR18 ®...
- Page 15 • Give all base and pixel fixtures a start address (& universe): each fixture shows its start + end address, make sure that the addresses do not overlap! • When using the combined DMX mode, the pixel layer is controlled by the Pixel control channel. BRITEQ 13/23 BTI-BEAMBAR18 ®...
-
Page 16: Dmx Charts
Program Green Program Blue Program Lime Effect macros Effect rate Effect width Effect fade Dimmer speed Pixel control Control Red 1 Green 1 Blue 1 Lime 1 … Red 18 Green 18 Blue 18 Lime 18 BRITEQ 14/23 BTI-BEAMBAR18 ®... - Page 17 Lime 0-255 Lime fine 0-15 Disabled 16-30 8000K 31-45 7500K 46-60 6500K 61-75 6000K 76-90 5600K 91-105 5000K 106- 4500K 121- 4000K 136- 3500K 151- 3200K 166- 3000K 181- 2700K 196- 2500K 211- 2300K 226- 2000K BRITEQ 15/23 BTI-BEAMBAR18 ®...
- Page 18 Color presets 126- Just Blue 131- Dark yellow green 136- Spring Yellow 141- Light Amber 146- Straw Tint 151- Deep Amber 156- Orange 161- Light Rose 166- Middle Rose 171- Dark Pink 176- Magenta 181- Peacock Blue BRITEQ 16/23 BTI-BEAMBAR18 ®...
- Page 19 Blue Program 0-255 Lime 0-10 No effect 11-30 Effect 1 31-50 Effect 2 51-70 Effect 3 71-90 Effect 4 91-120 Effect 5 Effect 121- Effect 6 macros 151- Effect 7 181- Effect 8 211- Effect 9 BRITEQ 17/23 BTI-BEAMBAR18 ®...
- Page 20 Effect pixel width: 9 Effect width 136- Effect pixel width: 10 151- Effect pixel width: 11 166- Effect pixel width: 12 181- Effect pixel width: 13 196- Effect pixel width: 14 211- Effect pixel width: 15 BRITEQ 18/23 BTI-BEAMBAR18 ®...
- Page 21 Pixel order A (3s delay) 171- Pixel order B (3s delay) 176- No function 0-255 Red 1 0-255 Green 1 0-255 Blue 1 0-255 Lime 1 … 0-255 Red 18 0-255 Green 18 0-255 Blue 18 0-255 Lime 18 BRITEQ 19/23 BTI-BEAMBAR18 ®...
-
Page 22: Maintenance
• The DMX-controller sends out a “discovery command”, all RDM devices respond and send their unique device ID. • The DMX-controller asks each RDM device for some basic data so it knows which devices are connected. The projector will respond: • Device name: BTI-BEAMBAR18 • Manufacturer: ® Briteq • Category: LED Dimmer •... -
Page 23: Specifications
5pin XLR male + 5pin XLR female 5 modes: 11 → 96 channels DMX channel modes Beam angle 6° LED refresh rate 1200Hz-4800Hz Enclosure temperature (T : 40°C) Surface: 65°C max. Dimensions LxWxD (mm) 1002x230x186 (see drawing) Weight (kg) 10.8 LUX CHART BRITEQ 21/23 BTI-BEAMBAR18 ®... - Page 24 R=255, G=197, B=061, L=000 Primary Green R=077, G=255, B=000, L=000 Bright Blue R=000, G=255, B=087, L=000 Apricot R=255, G=143, B=013, L=000 Pale Gold R=253, G=171, B=026, L=000 Deep Orange R=222, G=084, B=000, L=000 Flame Red R=255, G=046, B=002, L=000 BRITEQ 22/23 BTI-BEAMBAR18 ®...
- Page 25 ENGLISH USER MANUAL The information might be modified without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ 23/23 BTI-BEAMBAR18 ®...
-
