ENGLISH
[CONFIG Menu > Panel Calibrat] –
Used to calibrate the light output of the different sections.
• Once this function is shown on the display, press the [ENTER] button: the display shows [Calib W1]
• Use ▲/▼ buttons to select the desired section to calibrate: [Calib W1] to ... [Calib W9]
• Press [ENTER] to adjust the brightness of the selected section (W1 ... W9):
All sections W1 to W9 light up.
• Use ▲/▼ buttons to adjust the brightness of the selected section: the calibration is perfect once you
cannot see a difference in output between the different sections.
• Press the [ESC.] button to confirm and return to the menu.
Remark: the differences between sections are very minimal and preset in the factory so don't worry if you
don't see a big diffence while calibrating.
[Time] –
Shows how many hours the unit was used since its 1
• Press the ▲/▼ buttons until the function is showing on the display.
• Press the [ENTER] button to select, display shows the number of used hours.
• Press the [ESC.] button to return to the menu.
[Temp] –
Shows the actual temperature of the LEDs.
• Press the ▲/▼ buttons until the function is showing on the display.
• Press the [ENTER] button to select, display shows the actual temperature.
• Press the [ESC.] button to return to the menu.
[Test LED] –
Used to easily check if all leds are still working: perfect for rental business!
• Once this function is shown on the display, press the [ENTER] button: the display shows [ALL ON]
All LEDs are switched on at a very low output so you can easily check if they are all working without
damaging your eyes.
• Use ▲/▼ buttons to select the separate segments one by one: [PIXEL1] to [PIXEL9]
• Press the [ESC.] button to confirm and return to the menu.

ELECTRICAL INSTALLATION

Important: The electrical installation should be carried out by qualified personal only,
according to the regulations for electrical and mechanical safety in your country.
ELECTRICAL INSTALLATION FOR TWO OR MORE UNITS IN DMX-MODE:
Use this function when you want to control the projectors by any DMX controller.

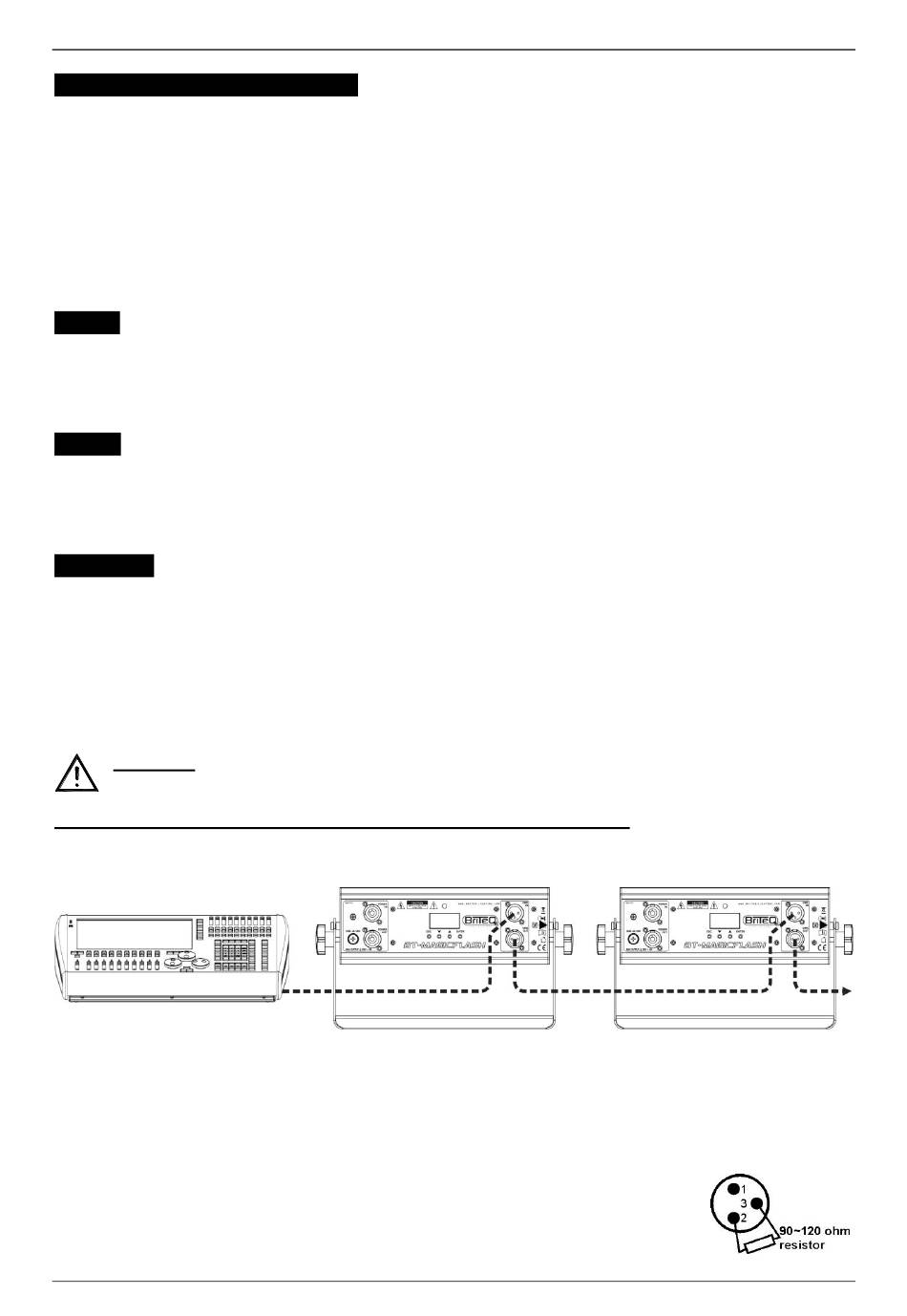

• Connect the projectors as shown in the drawing below.
• First put the projectors in the desired DMX-mode: see the different DMX-charts and choose the one that
suits you best.
• Give all projectors a start address: each projector shows its start + end address, make sure that the
addresses do not overlap!
Some general information on DMX:
• The DMX-protocol is a widely used high speed signal to control intelligent light
equipment. You need to "daisy chain" your DMX controller and all the connected
units with a good quality
connectors are used, however XLR-3pin is more popular.
BRITEQ
®
balanced DMX-cable. Both XLR-3pin and XLR-5pin
7/11
OPERATION MANUAL
st
use.
BT-MAGICFLASH
