ENGLISH

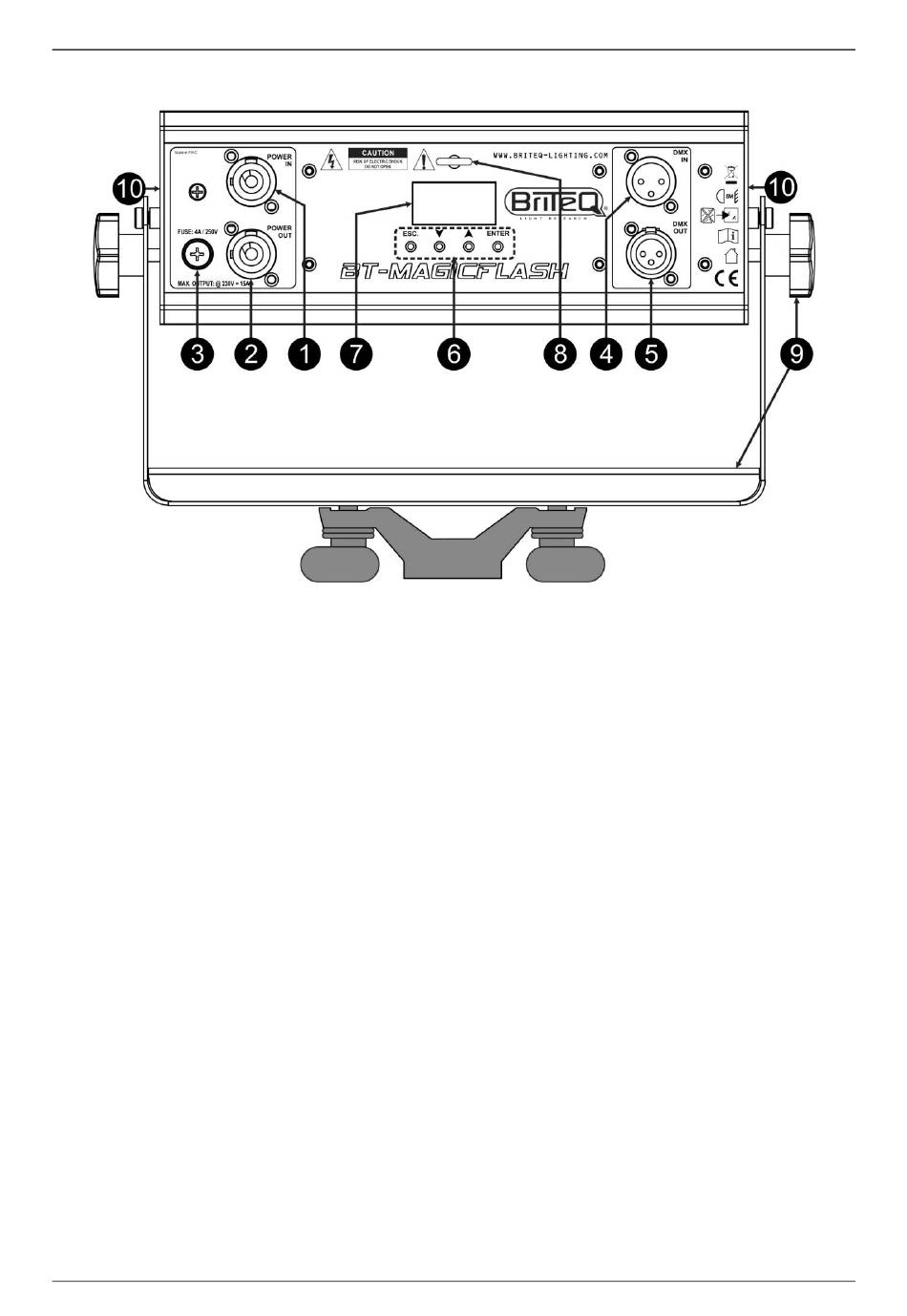

DESCRIPTION:
1. MAINS INPUT: Connect the supplied mains cable or any PowerCon
2. MAINS OUTPUT: used to daisy chain the power to several other projectors. Always pay attention to the
maximum load while adding projectors! Special Multi cables (PowerCON
optionally available: see our website!)
3. MAINS FUSE: protects the unit in case of electrical problems, always use the prescribed fuse!
4. DMX IN: 3pin inputs are available to daisy chain the projector with other units that will be controlled by a
DMX-controller. The DMX-inputs are also used to update the firmware of the projector, see the upgrade
instructions on our website.
5. DMX OUT: 3pin outputs are available to daisy chain the projector with other units that will be controlled
by a DMX-controller.
6. [MENU] buttons: used to browse the different options of the setup menu.
• ESC. Button: press shortly to go 1 level up & press several times until the standard display is shown.
• ▲/▼Buttons: used to browse the menu items and change the values of the selected function.
• [ENTER]-button: used to confirm the current action.
7. DISPLAY: the backlit LCD-display shows important information like: channel mode, DMX-start/end
address, ... The backlight is lit as soon as one of the buttons is pressed. A capital [S] blinks in the upper
right corner when a DMX-signal is detected.
8. SAFETY EYEBOLT: used to attach a safety cable when the unit is rigged (see paragraph "overhead
rigging"
9. BRACKET: multifunctional and very stable design for both floor and truss mounting. Prepared to install
omega brackets, optionally available from Briteq. The projector can be directed in any direction.
10. COOLING FAN: during its operation the projector produces heat that must be dissipated. The fan inside
the projector must be able to evacuate the heat in the most effective way. Therefore is it very important
not to cover any of the ventilation openings as this may result in overheating.
BRITEQ
®
®
3/11
OPERATION MANUAL
extension cable here.
®
+ DMX XLR-cables are
BT-MAGICFLASH
