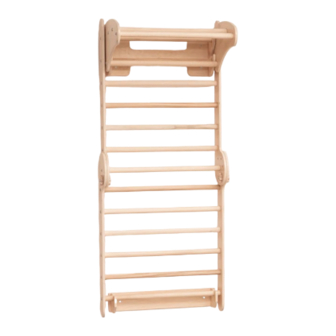

Transformer triangle / Swedish ladder
1 - Sidewall 1
1 pc.
4 - Sidewall 4
1 pc.
7 - Fixator with metal
insert
2 pcs.
11 - Rod of the pull-up
bar
505
4 pcs.
15 - Small mounting
piece
1 pc.
d - 4 mm hex key
1 pc.
ASSEMBLY DETAILS
2 - Sidewall 2
1 pc.
5 - Long rod for the triangle
558
7 pcs.
8 - Fixator without metal
insert
2 pcs.
12 - Big bracket
2 pcs.
a - Screw M6x35
34 pcs.
e - Dowel
4 pcs.
3 - Sidewall 3
1 pc.
6 - Short rod for the triangle
6 pcs.
9 - Left side of
the pull-up bar
1 pc.
13 - Small bracket
2 pcs.
b - Confirmat screw 5x40
10 pcs.
f - 6x100 Self-tapping screw
4 pcs.
534
10 - Right sidewall of
the pull-up bar
1 pc.
14 - Big mounting piece
1 pc.
c - 3 mm hex key
1 pc.
Advertisement
Related Manuals for Montessori Furniture Woods and Hearts Transformer triangle
Summary of Contents for Montessori Furniture Woods and Hearts Transformer triangle
- Page 1 Transformer triangle / Swedish ladder ASSEMBLY DETAILS 1 - Sidewall 1 2 - Sidewall 2 3 - Sidewall 3 1 pc. 1 pc. 1 pc. 4 - Sidewall 4 5 - Long rod for the triangle 6 - Short rod for the triangle 1 pc.
- Page 2 А А А Pic. 1 Take the sidewall (3, 4) and attach the short rods (6) using screws (a) and 4 mm hex key (d). See Pic. 1. А Pic. 2 take the sidewall (2) and attach the long rods (5) to it using screws (a) and 4 mm hex key (d).
- Page 3 Pic. 4 Choose the requires position (angle) so that the holes in the sidewalls meet. Fix the position with fixators (7, 8) by joining them. See Pic. 4. А А Pic. 5 Take the sidewalls of the pull-up bar (9, 10) and attach the rods (11) to them using screws (a) and 4 mm hex key.
- Page 4 В Pic. 7 Take the small mounting piece (14) and attach small brackets (12) to it using confirmat screws (b) and 3 mm hex key (c). See Pic. 7. Pic. 8 Distances at which the mountings should be located to fix the triangle in a position of a swedish ladder.
- Page 5 Mounting to the framed (drywall) wall Drywall Pic. 9 If you have a drywall wall, the Swedish Ladder should only be attached to a wooden frame...
- Page 6 Mounting to the concrete or brick wall Concrete wall mount Pic. 10 Fasten the Swedish Ladder to the concrete wall with the help of dowels (e) and selftapping screws (f). See Pic. 11. Use only for its intended purpose, indoors, under the direct supervision of adults. Maximum load weight - 60 kg / 132 lbs.
