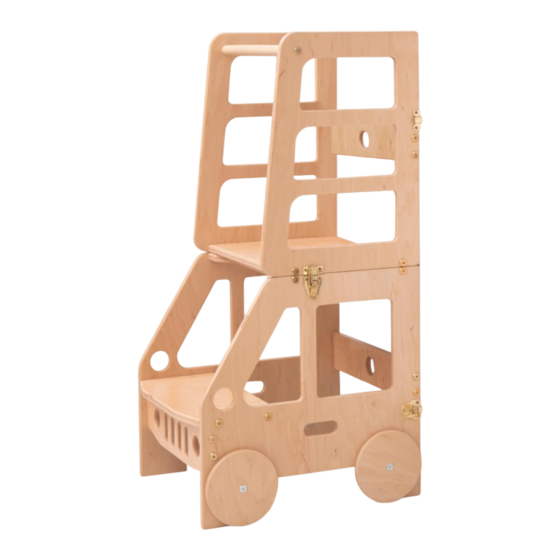

Truck-shaped learning chair
1 - Left lower
2 - Right lower
sidewall
sidewall
1 pc.
1 pc.
6 - Lintel
7 - Front lintel
356
2 pcs.
1 pc.
a - Screw 6.3x40
b - Screw M6x25
26 pcs. + 2 spare
4 pcs. + 1 spare
а
а
Pic. 1
Take the left lower sidewall (1) and using the screws (a) and hex key (d),
attach the seat (5), common lintel (6), and front lintel (7). See Pic.1.
ASSEMBLY DETAILS
3 - Left upper
sidewall
1 pc.
8 - Tabletop
356
2 pcs. connected
c - Erickson nut
M6x15
4 pcs. + 1 spare
1
а
d
а
а
а
4 - Right upper
sidewall
1 pc.
9 - Nog
1 pc.
d - 4 mm hex key
2 pcs.
Locks should be outside!
6
5
5 - Seat
356
1 pc.
10 - Wheel
4 pcs.
7
140
Advertisement
Table of Contents
Related Manuals for Montessori Furniture Wood and Hearts Truck-shaped learning chair
Summary of Contents for Montessori Furniture Wood and Hearts Truck-shaped learning chair
- Page 1 Truck-shaped learning chair ASSEMBLY DETAILS 1 - Left lower 2 - Right lower 3 - Left upper 4 - Right upper 5 - Seat sidewall sidewall sidewall sidewall 1 pc. 1 pc. 1 pc. 1 pc. 1 pc. 6 - Lintel 7 - Front lintel 8 - Tabletop 9 - Nog...
- Page 2 а а а а а а Pic. 2 Attach the right lower sidewall (2) with the help of screws (a) and hex key (d) in a similar way. See Pic.2. а а а а Pic. 3 To the previously assembled construction attach the tabletop (8) using the screws (a) and hex key (d).
- Page 3 Pic. 4 Attach the wheels (10) to the previously assembled construction using the screw (b), nut (c) and both hex keys (10). See Pic. 4. а Locks should а be outside! а а а а Pic. 5 Using the screws (a) and hex key (d) attach the left upper sidewall (3), right upper sidewall (4), common lintel (4), and a nog (9).
- Page 4 а Lock before fastening а а а Pic. 6 Join the semi-products depicted in the Pic. 4,5 using the screws (a) and hex key (d). See Pic. 6. To be used for its intended purpose only and under the direct supervision of an adult! All the responsibility for children’s injuries received during games on the furniture lies on adults watching after them.
