1 - Base
680
1 pc.
5 - Facade
1 pc.
c - Self-tapping screw 3x12
16 pcs.
g - Wooden dowel
1 pc.

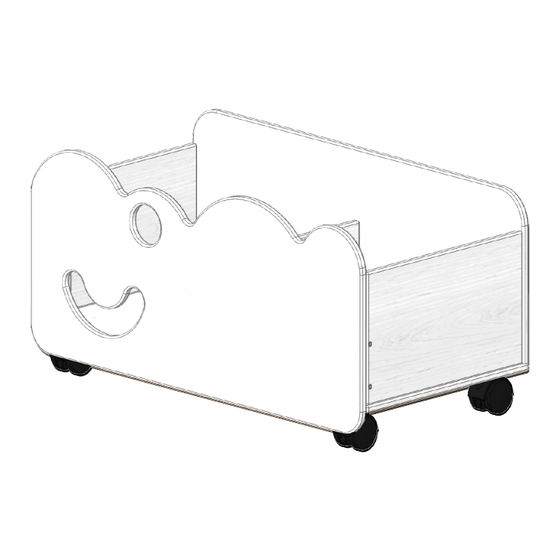

Drawer with cutouts "Cloud"

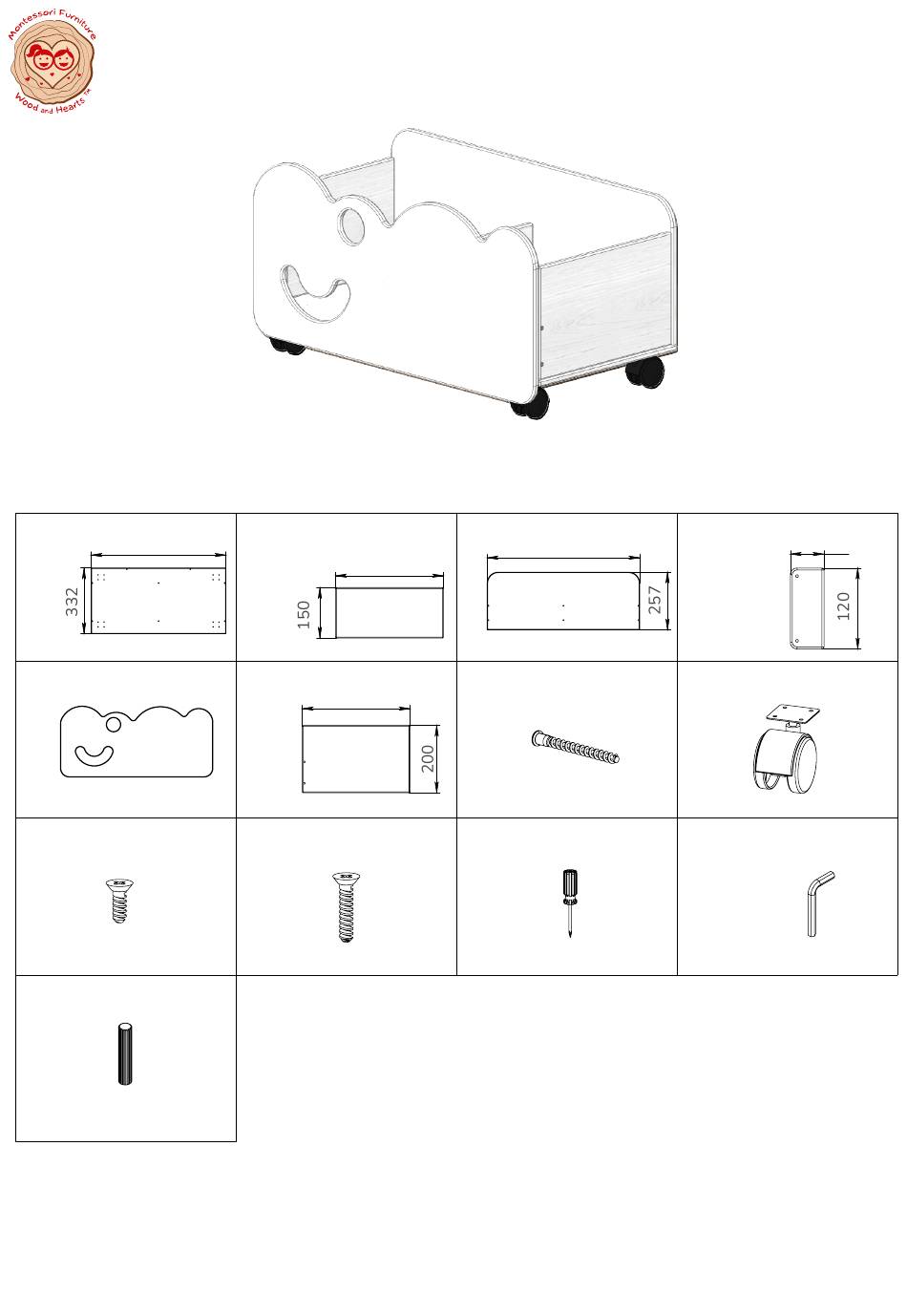

ASSEMBLY DETAILS
2 - Central partition
1 pc.
6 - Sidewall
320
2 pcs.
d - Self-tapping screw 3x20
4 pcs.
3 - Back wall
320
1 pc.
a - Confirmat screw 5x40
20 pcs.
e - Screwdriver
1 pc.
4 - Plank under
680
facade
2 pcs.
b - Wheel
4 pcs.
f - 3 mm hex key
1 pc.
50
Advertisement
Table of Contents
Related Manuals for Montessori Furniture Wood and Hearts Cloud
Summary of Contents for Montessori Furniture Wood and Hearts Cloud
- Page 1 Drawer with cutouts "Cloud" ASSEMBLY DETAILS 1 - Base 2 - Central partition 3 - Back wall 4 - Plank under facade 1 pc. 1 pc. 1 pc. 2 pcs. 5 - Facade 6 - Sidewall a - Confirmat screw 5x40 b - Wheel 1 pc.
- Page 2 а а а а а Pic. 1 а Take the Base (1) and using the confirmat screws (a) and hex key (f) screw the central partition (2) and sidewalls (6) to it. Install the wooden dowel (g) into the partition (2). See Pic. 1.confirmats (h) and hex key (i). See Pic. 9. а...
- Page 3 Pic. 4 Screw the wheels (b) to the base (1) using the self-tapping screws (c) and screwdriver (e). See Pic. 4. Pic. 5 Using the self-tapping screws (c), attach the facade (5) to the previously assembled construction. See Pic. 5. To be used for its intended purpose only and under the direct supervision of an adult! All the responsibility for children’s injuries received during...
