1 - Base planks
750
2 pcs.
5 - Base unit
200
2 pcs.
c - Erickson nut M6x15
2 pcs.
Pic. 1
Take the central base (6) and connect the support stand with a hole
using the self-tapping screw (a) and a hex key (d). Connect the support
stand with a hole (3) using the screw (b), nut (c) and two hex keys (d).
See Pic. 1.
Following the steps assemble 2 constructions.

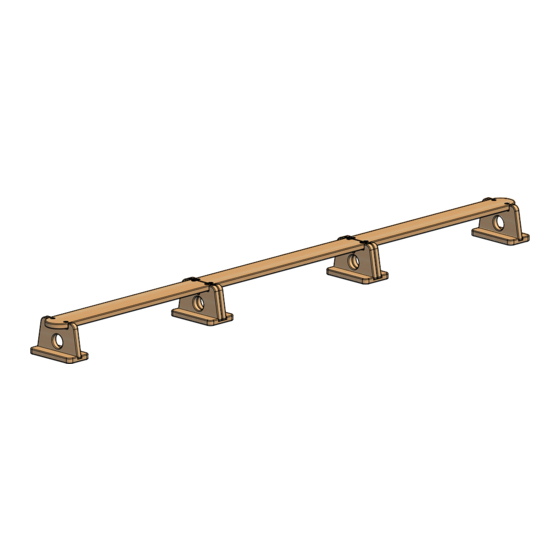

Balancer "Straight"
ASSEMBLY DETAILS
2 - Middle plank
760
1 pc.
6 - Central base
200
2 pcs.
d - 4 mm hex key
2 pcs.
b
a
a
3 - Support stand with
a hole
4 pcs.
a - Self-tapping screw
6.3x40
24 pcs.
3
c
6
a
a
4 - Support stand
without a hole
2 pcs.
b - Screw М6х30
2 pcs.
Advertisement
Table of Contents
Related Manuals for Montessori Furniture Wood and Hearts Straight
Summary of Contents for Montessori Furniture Wood and Hearts Straight
- Page 1 Balancer "Straight" ASSEMBLY DETAILS 1 - Base planks 2 - Middle plank 3 - Support stand with 4 - Support stand a hole without a hole 2 pcs. 1 pc. 4 pcs. 2 pcs. 5 - Base unit 6 - Central base a - Self-tapping screw b - Screw М6х30 6.3x40...
- Page 2 Pic. 2 Take the base unit (5) and connect the support stand without a hole (4) using the self-tapping screws (a) and a hex key (d). Fullfil the same to assemble 2 constructions. See Pic. 2. а а а а Pic.
