1 - Front/Back base
984
2 pcs.
4 - Ladder with many steps side 2
1440
1 pc.
7 - Corner stand 1
1440
1 pc.
10 - Ladder with Rope 1
1440
1 pc.
13 - Short nog
2 pcs.
b - Flat head 35 mm
screw
34 pcs. - 5 pcs. spare

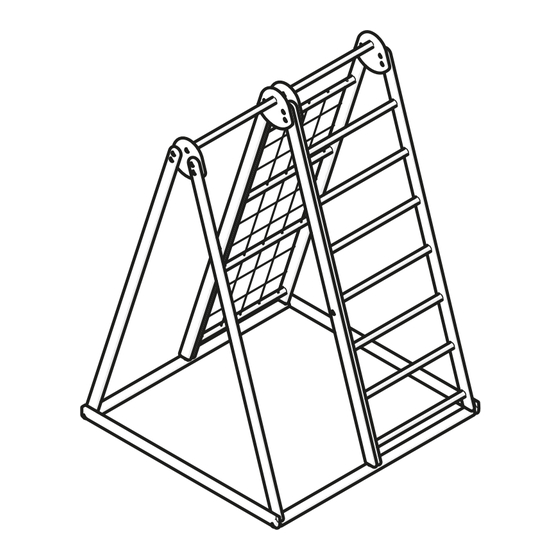

Large Triangle
ASSEMBLY DETAILS
2 - Left/Right base
2 pcs.
5 - Middle side 1
1 pc.
8 - Corner stand 2
1 pc.
11 - Ladder with Rope 2
1 pc.
14 - Long nog
7 pcs.
c - Flat head 50 mm
screw
4 pcs. - 1 pc. spare
990
1440
1440
1440
d - Flat head 30 mm
screw
2 pcs. - 1 pcs. spare
3 - Ladder with many steps side 1
1 pc.
6 - Middle side 2
1 pc.
9 - Rope
ladder
1 pc.
12 - Connector
4 pcs.
a - Flat head 20 mm screw
12 pcs. - 2 pcs. spare
e - Flat head 17 mm
dull nut
18 pcs. - 2 pcs. spare
1440
1440
f - 4 mm hex key
2 pcs.
Advertisement
Related Manuals for Montessori Furniture Wood and Hearts Large Triangle
Summary of Contents for Montessori Furniture Wood and Hearts Large Triangle
- Page 1 Large Triangle ASSEMBLY DETAILS 1 - Front/Back base 3 - Ladder with many steps side 1 2 - Left/Right base 1440 2 pcs. 2 pcs. 1 pc. 4 - Ladder with many steps side 2 6 - Middle side 2 5 - Middle side 1 1440 1440...
- Page 2 Pic. 1 Lay the Bases (1 and 2) on the floor as shown in the Pic. 1. Mark the position of holes in the middle. Round grooves in the Left/Right (2) bases should look outside. Screw the parts 1 and 2 with screws (b), using hex key (f). Pic.
- Page 3 Pic. 4 Assemble the Ladder with many steps as shown in the Pic. 4. Take the sides of the Ladder (10, 11) and Rope ladder (9). Screw the parts together with screws (b), using hex key (f). Pic. 5 Assemble the Rope ladder and Middle side 2 (6) as shown in the Pic. 5. Screw the parts together with screws (d), nuts (e) and both hex keys (f).
- Page 4 Pic. 7 Assemble the parts together as shown in the Pic. 7 .Screw the parts together with screws (a), (c), nuts (e) and both hex keys (f). Pic. 8 Assemble the parts together as shown in the Pic. 8. Screw the parts together with screws (b) and hex key (f).
