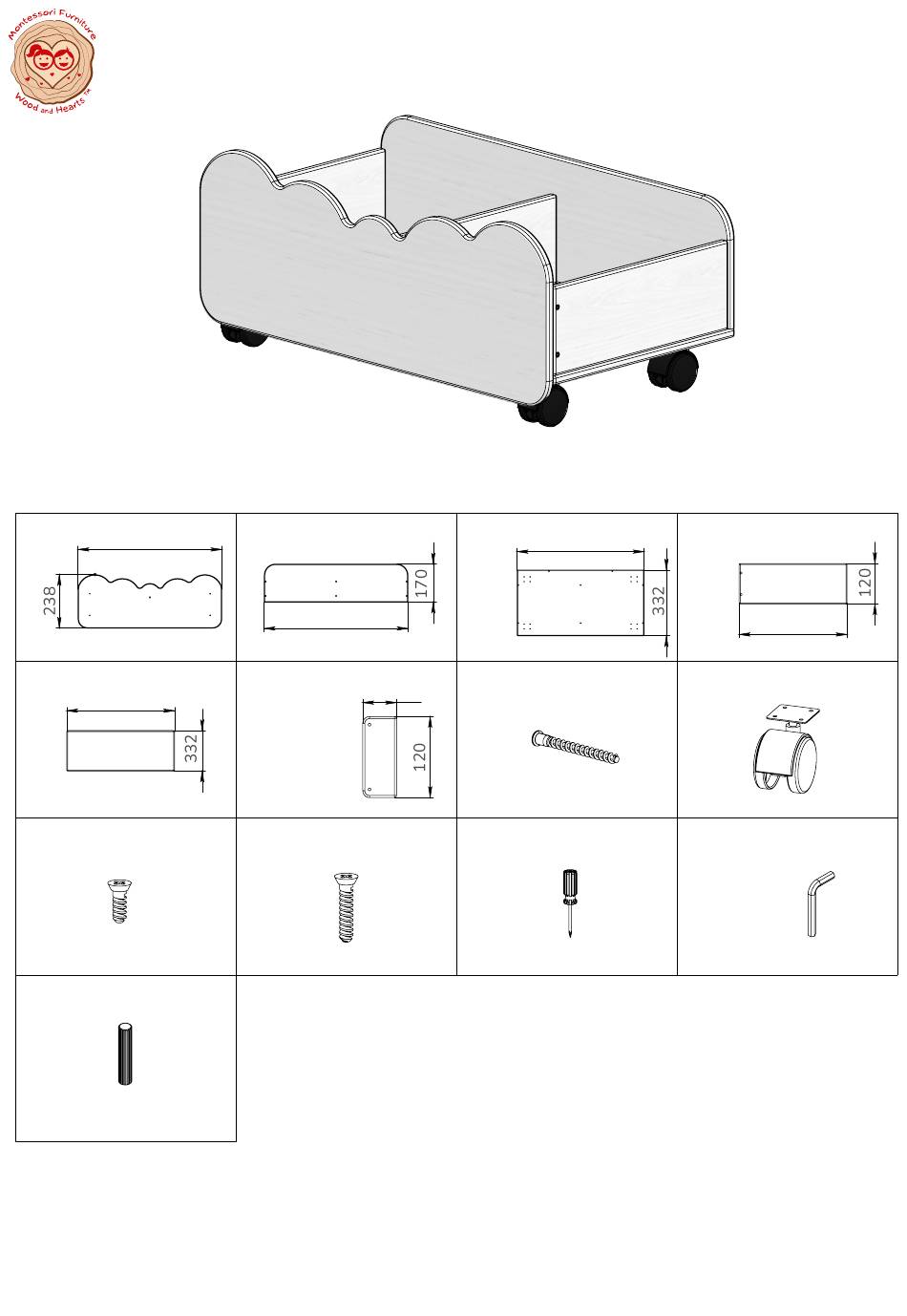

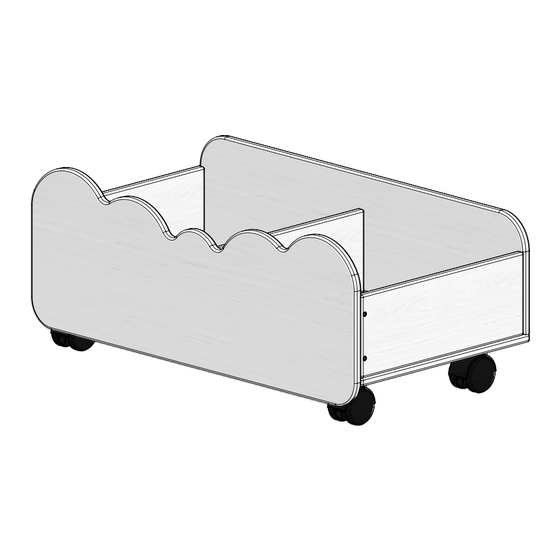

Drawer without cutouts "Cloud"
1 - Facade
640
1 pc.
5 - Partition
680
1 pc.
c - Self-tapping screw 3x12
16 pcs.
g - Wooden dowel 8x30
1 pc.
ASSEMBLY DETAILS
2 - Back wall
640
1 pc.
6 - Plank under
50
facade
2 pcs.
d - Self-tapping screw 3x20
4 pcs.
3 - Base
640
1 pc.
a - Confirmat 5x40
20 pcs.
e - Screwdriver
1 pc.
4 - Sidewall
320
2 pcs.
b - Wheel
4 pcs.
f - Hex key 3 mm
1 pc.
Advertisement
Table of Contents
Related Manuals for Montessori Furniture Wood and Hearts Cloud
Summary of Contents for Montessori Furniture Wood and Hearts Cloud
- Page 1 Drawer without cutouts "Cloud" ASSEMBLY DETAILS 1 - Facade 2 - Back wall 3 - Base 4 - Sidewall 1 pc. 1 pc. 1 pc. 2 pcs. 5 - Partition 6 - Plank under a - Confirmat 5x40 b - Wheel facade 1 pc.
- Page 2 а а а а а а Pic. 1 Take the base (3) and using the confirmat screws (a) and hex key (f) connect the sidewalls (4) and partition (5) to it. Install the wooden dowe (g) into detail 5. See Pic. 1. Pic.
- Page 3 Pic. 4 Using the self-tapping screws (c) and screwdriver (e), screw the wheels (b) to the base (3). See Pic. 4. Pic. 5 Take the facade (1) and attach it to the previously assembled construction. See Pic. 5. To be used for its intended purpose only and under the direct supervision of an adult! All the responsibility for children’s injuries received during games on the furniture lies on adults watching after them.
