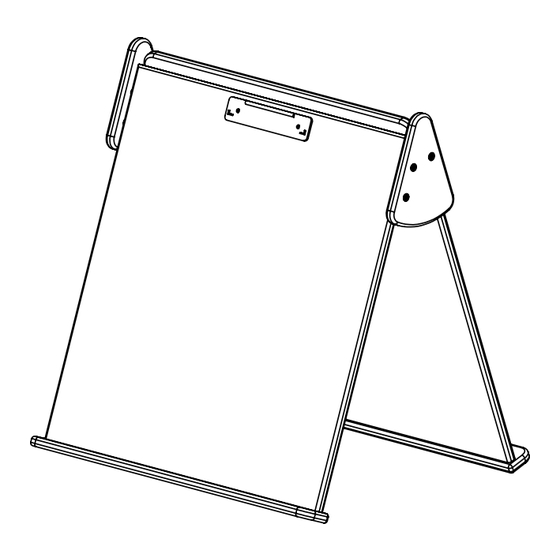

А-shaped tabletop easel
1 - Shorter tablet
400
1 pc.
4 - Right connector
92
1 pc.
1
Pic. 1
Join the plank (3) and shorter tablet (1) using confirmat screws (a) and hex
key (b). See Pic. 1.
ASSEMBLY DETAILS
2 - Longer tablet
1 pc.
5 - Left connector
67
1 pc.
3 - Plank
400
2 pcs.
a - 5x40 Confirmat screw
10 pcs.
А
410
b - 3 mm hex key
1 pc.
3
Advertisement
Related Manuals for Montessori Furniture Wood And Hearts A-shaped tabletop easel
Summary of Contents for Montessori Furniture Wood And Hearts A-shaped tabletop easel
- Page 1 А-shaped tabletop easel ASSEMBLY DETAILS 1 - Shorter tablet 2 - Longer tablet 3 - Plank 1 pc. 1 pc. 2 pcs. 4 - Right connector 5 - Left connector a - 5x40 Confirmat screw b - 3 mm hex key 1 pc.
- Page 2 А Pic. 2 Join the plank (3) and longer tablet (2) with confirmat screws (a) using hex key (b). See Pic. 2. А Pic. 3 Join the tablets with the connectors (4, 5) using confirmat screws (a) and hex key (b), as shown in the Pic. 3. ! Pay attention ! Shorter tablet has 2 holes for attaching the connector, while longer tablet has 1.
