1 - Sidewall
2 pcs.
5 - Base
3 pcs.
Pic. 1
Take the sidewall (1) and using the confirmat screws (6) and 3 mm hex key (7)
attach the front and back planks (2, 3). Then take the middle plank (4) and
bases (5) and insert them into the holes in the sidewall (1). See Pic. 1.

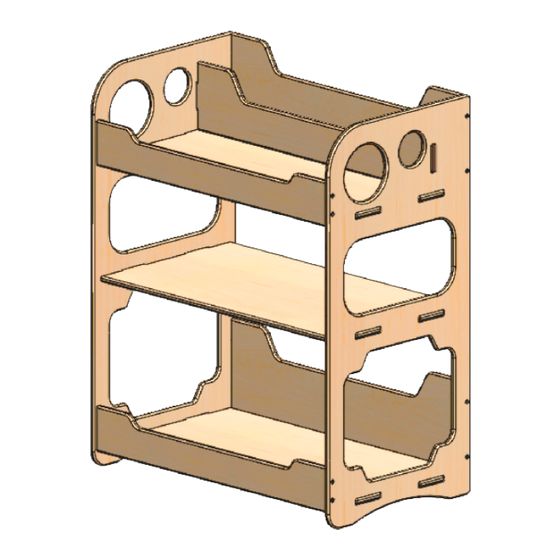

Bookshelf "Charlie"
ASSEMBLY PARTS
2 - Front plank
2 pcs.
6 - Confirmat screws 5x40
16 pcs.
3 - Back upper plank
2 pcs.
7 - 3 mm hex key
1 pc.
4 - Middle plank
1 pc.
Advertisement
Related Manuals for Montessori Furniture Charlie
Summary of Contents for Montessori Furniture Charlie
- Page 1 Bookshelf "Charlie" ASSEMBLY PARTS 1 - Sidewall 2 - Front plank 3 - Back upper plank 4 - Middle plank 2 pcs. 2 pcs. 2 pcs. 1 pc. 5 - Base 6 - Confirmat screws 5x40 7 - 3 mm hex key 3 pcs.
- Page 2 Pic. 2 Finish the assebmly by adding another sidewall (1) to the assembled construction and fixing it with the confirmat screws (6) using hex key (7). See Pic. 2. Use only for its intended purpose, indoors, under the direct supervision of adults. Maximum load weight - 60 kg / 132 lbs.
