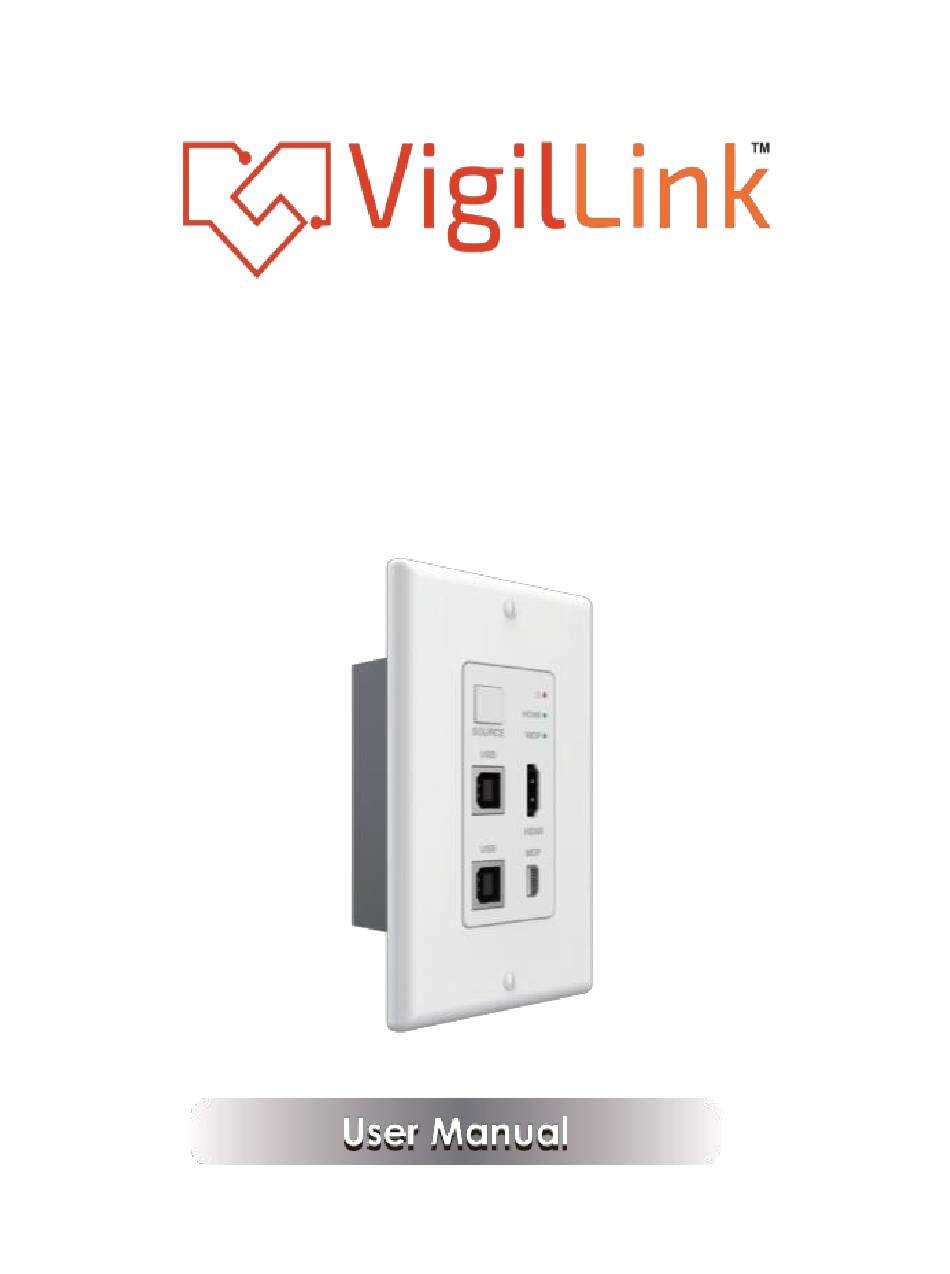

- Page 1 18G, 2x1 HDMI/mini DP Wall Plate w/Auto-Switching, USB2.0, POE (1-Gang US Decora, 40M@4K, 70M@1080P) White color Tx/Rx pair VLWP-DHU-TR VER 1.0...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction

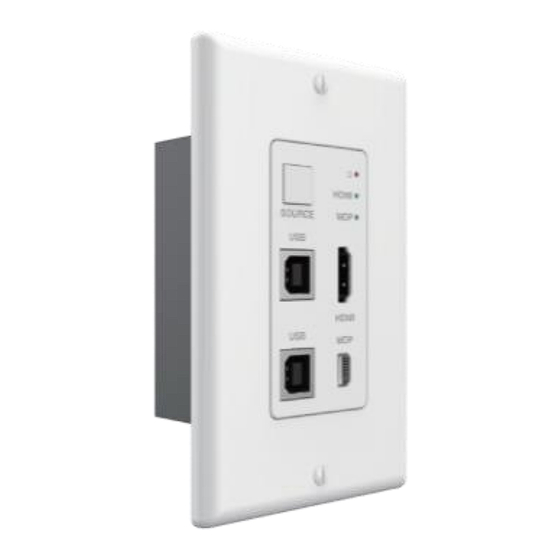

1. Introduction The wall plate is a 2x1 switcher and HDBaseT transmitter with HDMI and DP inputs. It features a US one-gang enclosure for Decora-style wall plate openings with interchangeable black and white wall plates and faceplates. Support video resolution up to 4K/UHD@60Hz 4:4:4. -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b, DisplayPort 1.2a HDCP Compliance HDCP 2.2 Video Bandwidth 18 Gbps 4096×2160@24/25/30/50/60Hz, 3840×2160@24/25 /30/50/60Hz, 2048x1080p, 1080p@23.98/24/25/ Video Resolution 29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 Color Depth 8/10/12-bit HDR10, HDR10+... -
Page 5: Product Dimensions
Mechanical Housing Metal Enclosure Color White / Black Wall plate: 33.3mm [W] x 65.7mm [D] x 68.7mm [H] Faceplate: Dimensions 69.9mm [W] x 3mm [D] x 114.3mm [H] Receiver: 200mm [W] x 98mm [D] x 23mm [H] Weight Wall plate: 196g, Receiver: 511g Power Supply POE (only from Receiver to Transmitter) Power Consumption Wall plate: 9W (Max), Receiver: 11W (Max) -
Page 6: Operation Controls And Functions
6. Operation Controls and Functions 6.1 Transmitter Panel HDMI SOURCE HDBaseT OUT HDMI Name Function Description The power LED indicator will illuminate in green when the product is powered on, and red when Power LED the product is on standby. When the HDMI input port is active and the HDMI HDMI LED signal is detected, the green LED will be on. -
Page 7: Receiver Panel
6.2 Receiver Panel DC 24V HDBaseT IN HDMI OUT HDMI IN AUDIO OUT USB 1 USB 2 Name Function Description When the product is powered on, the red LED Power LED indicator will be on. DC 24V power supply port. DC 24V Firmware update port. -
Page 8: Application Example
7. Application Example CAT6/6a/7 Cable Transmitter Receiver HDMI SOURCE HDBaseT OUT DC 24V HDBaseT IN HDMI OUT HDMI IN AUDIO OUT USB 1 USB 2 HDMI Power Adapter Speaker TV or Monitor Notebook Notebook The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
