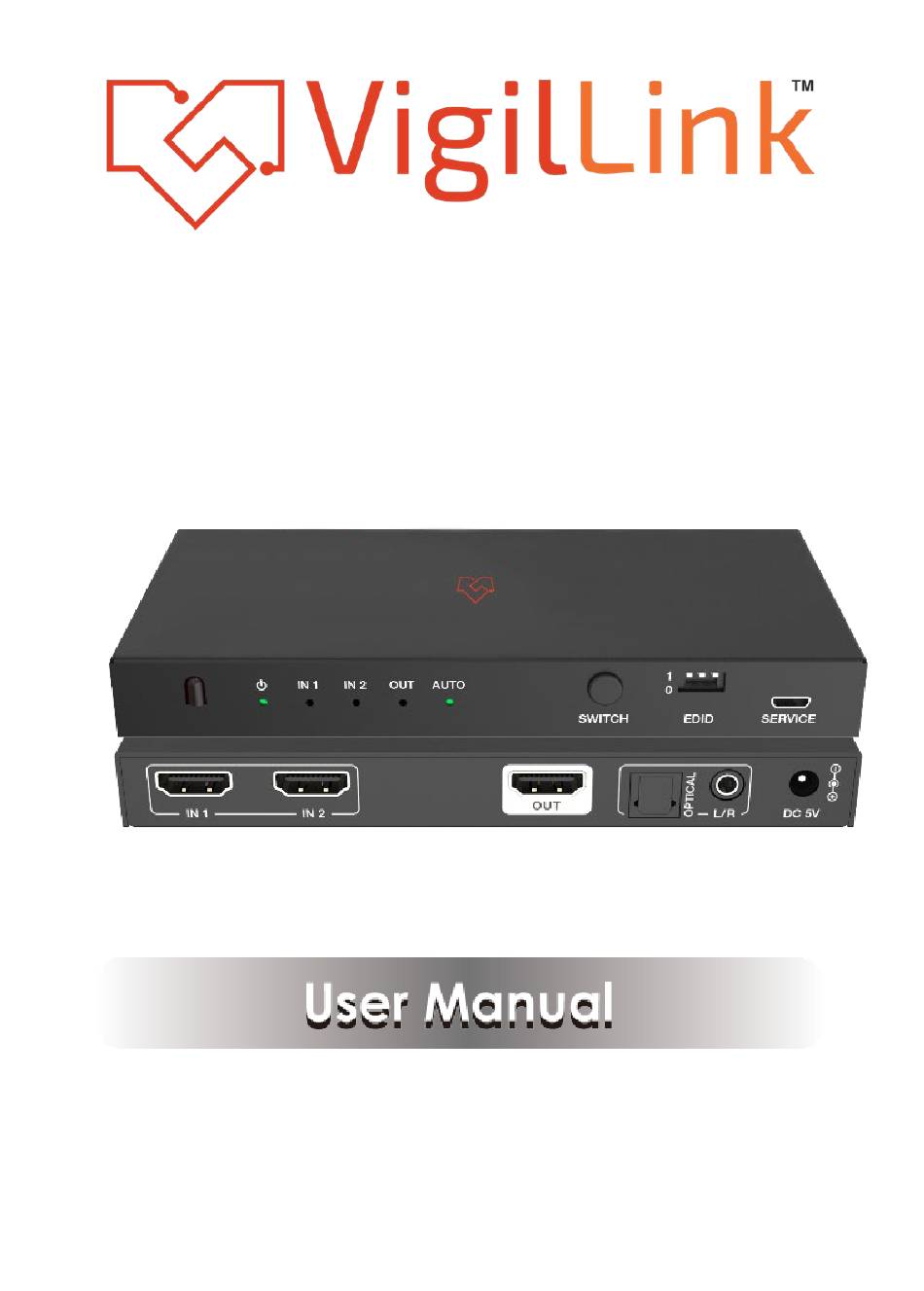

- Page 1 8K HDMI 2x1 Switcher VLSP-21H21A VER 1.0...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended. This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction This 8K HDMI 2x1 Switcher can switch any of the two HDMI source signals to one HDMI display. It supports video resolution up to 8K@60Hz 4:2:0. It supports advanced EDID management and audio de-embedding function (output through the optical and analog port). This multi-functional product can be widely applied in scenarios of demonstration, video conference, multimedia teaching and other occasions requiring for big-screen demonstration. -
Page 4: Specifications
4. Specifica t ions Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 40Gbps Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, Video Resolution 4K@120Hz 4:4:4 10bit Color Depth 8/10/12bit Color Space RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Audio Formats... -
Page 5: Operation Controls And Functions
Recommended HDMI Cable Video Resolution 4K60 4K24 1080P HDMI Cable Type Ultra HDMI 2.1 HDMI 2.0 HDMI 1.4 HDMI 1.4 HDMI Cable Length 3m/10ft 8m/26ft 12m/39ft 15m/49ft (HDMI IN / OUT) The use of “Premium High Speed HDMI” cable is highly recommended. 5. - Page 6 Used to select signal source for OUT port. Short pressing this SWITCH button will allow the device to switch any of the two HDMI input signals to the OUT port. Long pressing this button for 3 button seconds will turn on/off the auto switching function. Use the DIP switch to set EDID.
-
Page 7: Ir Remote
6. IR Re m ot e Power on the product or set it to standby mode. 1/2: Press 1/2 button to select HDMI signal source IN 1/2 to the OUT port. Press this button to cyclically switch HDMI signal source IN 1/2 to the OUT port. -
Page 8: Application Diagram
7. Applica t ion Dia gra m The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
