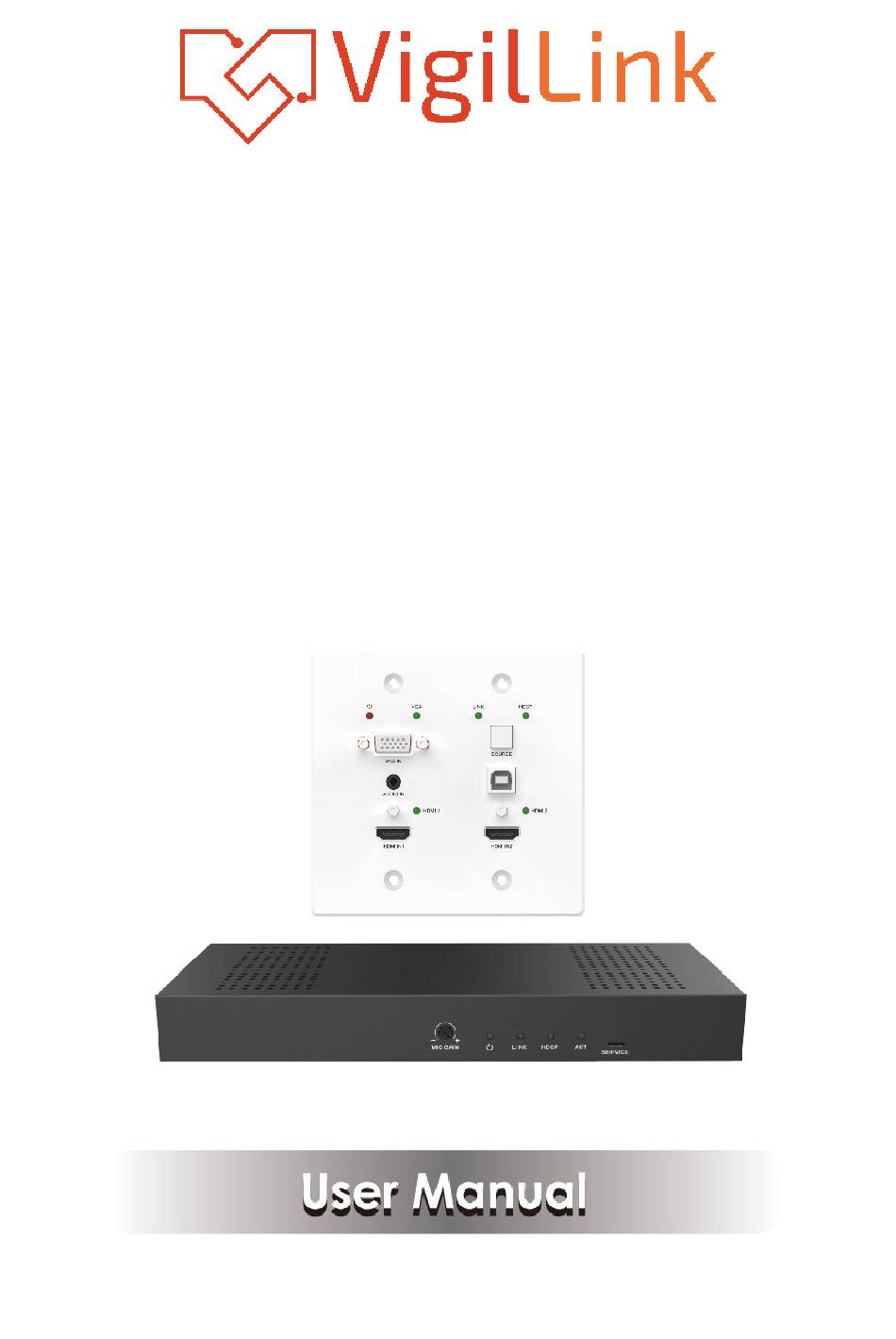

- Page 1 VLWP-3HVG-TR 18G, 3x1 2xHDMI/VGA Wall Plate w/Auto -Switching, USB2.0, POC (2-Gang US Decora, 40M@4K, 70M@1080P) White color Tx/Rx pair VER 1.1...
-
Page 2: Table Of Contents
Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device is recommended. This product contains sensitive electrical components that electrical spikes may damage surges, electric shocks, lightning strikes, etc. -
Page 3: Introduction
1. Introduction The product is a multi-function AV intelligent education system. It offers 2HDMI and VGA video extension, video switching, system control, and analog audio amplification. Uncompressed video and audio can be transmitted up to 230ft/70m. This design of HDBaseT™ technology allows for total usage of HDMI and controls over CAT5e/6/6A cable. -
Page 4: Features
2. Features ☆ HDMI 1.4b, HDCP 2.2, and HDCP 1.4 compliant. ☆ Video resolutions up to 4K2K@30Hz, 1080p@120Hz and 1080P 3D@60Hz. ☆ Audio up to 7.1 channels of High Definition audio pass-through (LPCM, Dolby TrueHD, and DTS-HD Master Audio). ☆ HDBaseT™ over a single CAT5e/6/7 cable up to 230ft/70m. ☆... -
Page 5: Specifications
4. Specifications Technical HDMI Compliance HDMI 1.4 HDCP Compliance HDCP 2.2/HDCP 1.4 Video Bandwidth 10.2 Gbps Video Resolution up to 4K2K@30Hz,1080P@120Hz and 1080P 3D@60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 8/10/12-bit HDMI Audio Format LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X ESD Protection Human body model —... -
Page 6: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Transmitter Panel Number Name Function description HDCP LED HDCP compliance indicator. ▪ OFF: HDMI input is not carrying HDCP content. ▪ ON: HDMI input takes HDCP content. LINK LED HDBaseT Link status indicator. ▪ OFF: No Link. ▪... -
Page 7: Dip Switch
VGA IN Connect to VGA source. AUDIO IN Connect to external audio source for VGA signal. HDMI 1 LED HDMI 1 signal indicator. ▪ OFF: No +5V HPD or HDMI signal detected on input. ▪ FLASHING: +5V HPD or HDMI signal is detected. ▪... -
Page 8: Web Gui User Guide
System work indicator. ▪ OFF: System standby or power off. ▪ Blink GREEN: System working. SERVICE For firmware updated use. TCP/IP Connect to a PC and access the Web GUI for system settings. HDBaset IN Connect to HDBaseT Transmitter with a Cat5e/6/7 cable. HDMI OUT Connect to an HDMI display device. - Page 9 MAIN page...
- Page 10 ① Shows the status of the input signal. Green: The input port has connected an active signal. Blue: The input port has connected success but no active signal. Red: The input port has not connected. ② Volume control outputs for the amplifier and the audio extractor. Adjusting the slider to increase or decrease results in the amplifier and the audio extractor.
- Page 11 CONTROL page ① Display System Sync: When the toggle is in the ‘ enable’ position, the display on/off subroutine will run the system subroutine on/off every time. (See section 7) ② Auto System: When the toggle is in the ‘ enable’ position, and the system is in standby status, if a new signal is connected, the system will change to active and fully controllable.
- Page 12 ③ Relay Sync: Sets the relays to either be triggered with the display subroutine on/off or the system subroutine on/off. (see sections 7 and 8) ④ Relay (On) Time: Sets the amount of time that the relay contacts will stay close.
- Page 13 ⑦ Save: After any setting has been made, the settings must be saved by pressing the ‘ Save’ button. Cancel: Wait for the popup window to close automatically before continuing to make another set while it saves.
- Page 14 INPUT/OUTPUT page ① Switch Mode: Sets how the switcher plate will change between input signals. It includes ‘Auto’ mode and ‘Manual’ mode. ② Sets the priority to use when the switch mode is set to priority mode. 1 is the The highest priority and 3 are the lowest.
- Page 15 ③ No Activity Timeout: Sets the amount of time it will take for the unit to turn itself off when there is no detected input signal. ④ Audio Delay: Sets how many seconds the amp’s audio is delayed. ⑤ HDMI EDID: When set to Internal, the EDID communicated to the source is the one stored in the device’...
-
Page 16: System Page
SYSTEM page ① The network settings of the device’ s internal system. ② Room Label: This is the user-assigned label that appears at the top of the web interface. - Page 17 ③ The user and the admin password settings ④ Upload new firmware versions and see the current ones install. This can update the firmware of the control panel and the receiver box, not the two-gang transmitter. To update the firmware of the two-gang switcher, use the USB port on the plate.
- Page 18 You can click the ‘Login’ button to enter the Web GUI function Page, when you set it over The page, likes below:...
-
Page 19: System On/Off Subroutine
7. System ON/OFF Subroutine... -
Page 20: Display On/Off Subroutine
8. Display ON/OFF Subroutine... -
Page 21: System Reset
9. System Reset To perform a system reset, hold the source button (SOURCE button) for 20 seconds until the HDCP light flashes three times. When the system is reset, user settings will return to their default values, including passwords, room labels, switching mode, IP address, etc. -
Page 22: Application Example
10. Application Example...
