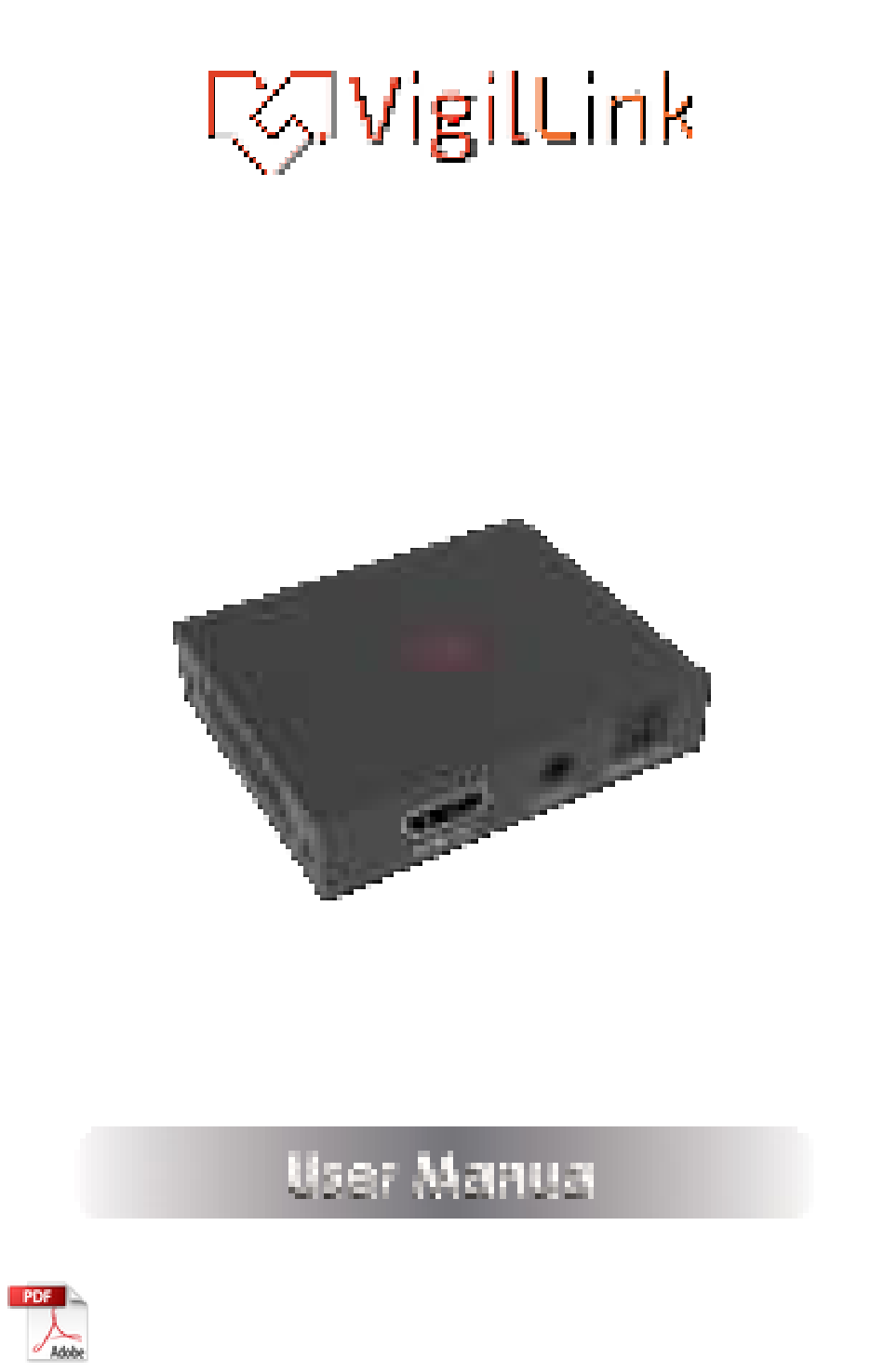

- Page 1 VLHA-DEM HDMI 2.0 Audio De-embedder 18Gbps VER 1.02...
- Page 2 Thank you for purchasing this product Please read these instructions carefully optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. Surge protection device recommended. This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc.
- Page 3 1. Introduction The HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI-compliant source to digital optical or analog stereo L/R audio outputs. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass-through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master...
- Page 4 3. Package Contents ① 1 x HDMI 18Gbps Audio Extractor ② 1 x 5V/1A Power Adaptor ③ 1× User Manual 4. Specifications Technical HDCP Compliance HDCP2.2and HDCP 1.4 Video Bandwidth 18Gbps Up to 4K2K@50/60Hz(YUV4:4:4), Video Resolutions 4K2K@30Hz,1080P@120Hz, and 1080P3D@60Hz RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Space 1O-bit, 12-bit Color Depth...
- Page 5 IxHDMI Type A[19-pin female] 1x L/R Audio Out [3.5mm Stereo Outputs Mini-jack] 1x Optical Out[S/PDIF] Mechanical Housing Metal Enclosure Black Color 73.5mm [W] x60.7mm [D] Dimensions x17mm [H] Weight 130g Input： AC100- 240V 50/60 Hz Power Supply Output: DC5V/1A(US/EU standards, CE/FCC/UL certified) Power Consumption 1W(Max) Operation 32-104°F/0-40°C...
- Page 6 5. Operation Controls and Functions 5.1 Front Panel ① DC5V: Connect 5V/1A adaptor to AC wall outlet for power supply. ② Power LED: System power indicator. ③ TV/Bit Stream / 2CH: This allows users to select the audio format according to TV, Bit Stream, or LPCM 2CH.

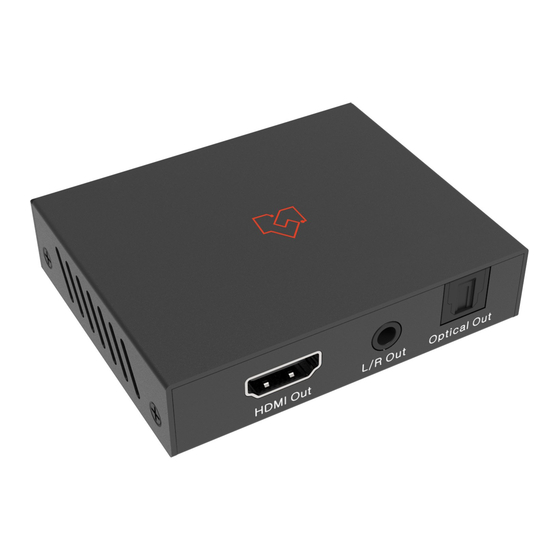

- Page 7 5.2 Rear Panel ① HDMI Out: Connect to HDMI display devices such as TV/ Projector. ② L/R Out: Connect to audio amplifier or TV L/R audio input port. ③ Optical Out: Connect to audio amplifier optical audio input port. HDMI and the HDMI Logo are either trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.
- Page 8 6. Connection Diagram...
