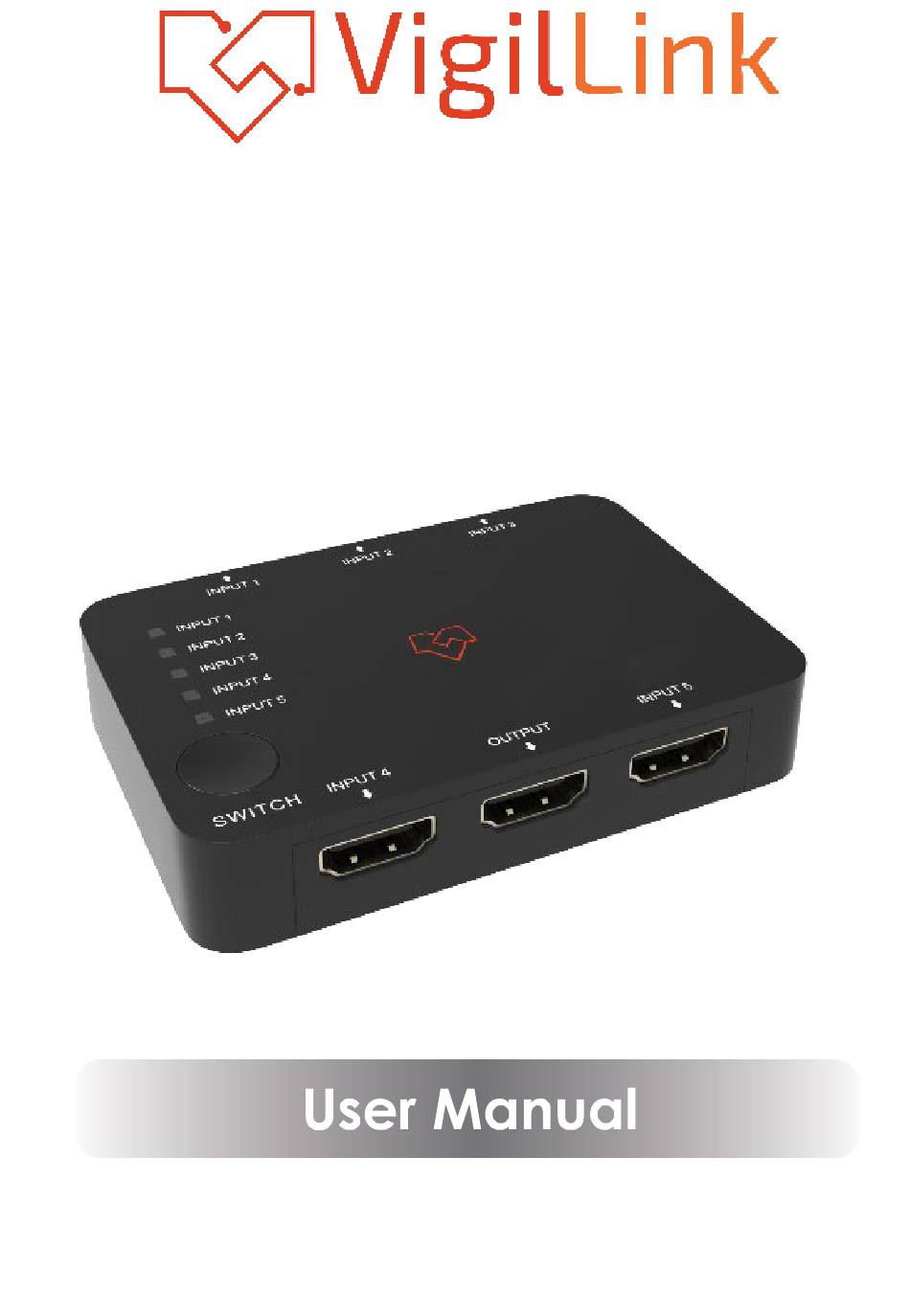

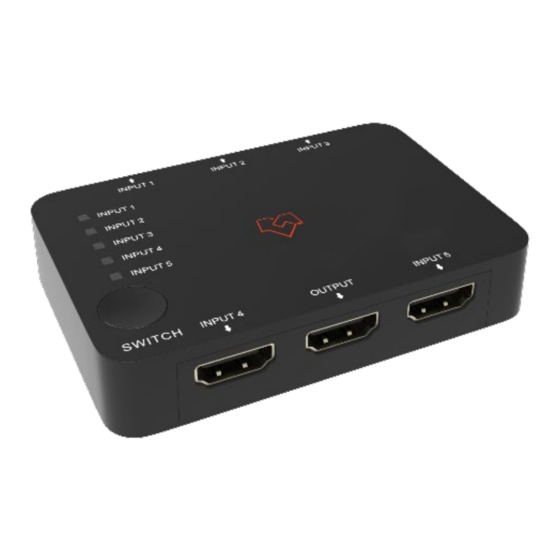

- Page 1 VLSW-51H20 5x1 HDMI 2.0 Switch 18Gbps VER 1.1...
- Page 2 Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device is recommended. This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc.
- Page 3 1. Introduction The 18Gbps 5 by 1 HDMI Switcher can switch 5 HDMI sources to 1 HDMI display. Supported video resolution is up to 4K2K@50/ 60Hz YCbCr 4:4:4. The product supports HDR, HDR10, Dolby Vision, and HLG. It supports all 3D video formats. The product has power consumption.
- Page 4 4. Specifications Technical HDCP Compliance HDCP 2.2 Video Bandwidth 18Gbps Video Resolution Up to 4k2k@60Hz 8-bit (4K60Hz) Color Depth Color Space RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:4:4 PCM2.0/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby HDMI Audio Formats True HD, DTS-HD Master Audio Human body model—±8kV (Air-gap discharge) &...
- Page 5 5. Operation Controls and Functions Name Function Description HDMI INPUT Connect to HDMI source devices such as DVD (1/2/3/4/5) players or PS3 with an HDMI cable. The corresponding LED will illuminate when the INPUT 1/2/3/4/5 HDMI input port connects to an active source device.
- Page 6 6. Remote Control IN1/IN2/IN3/IN4/IN5: Press IN1/IN2/IN3/IN4/ IN1 IN2 IN3 IN5 button to switch HDMI source signal to output display, and the corresponding LED will IN4 IN5 illuminate. : Press this button to select the input source to output display cyclically.
- Page 7 7. Application Example...
