VLWP-UHU-TR
18G, 2x1 HDMI/USB-C Wall Plate w/Auto-Switching, USB2.0, PoE
VER 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLWP-UHU-TR and is the answer not in the manual?

Questions and answers

Related Manuals for VigilLink VLWP-UHU-TR

Summary of Contents for VigilLink VLWP-UHU-TR

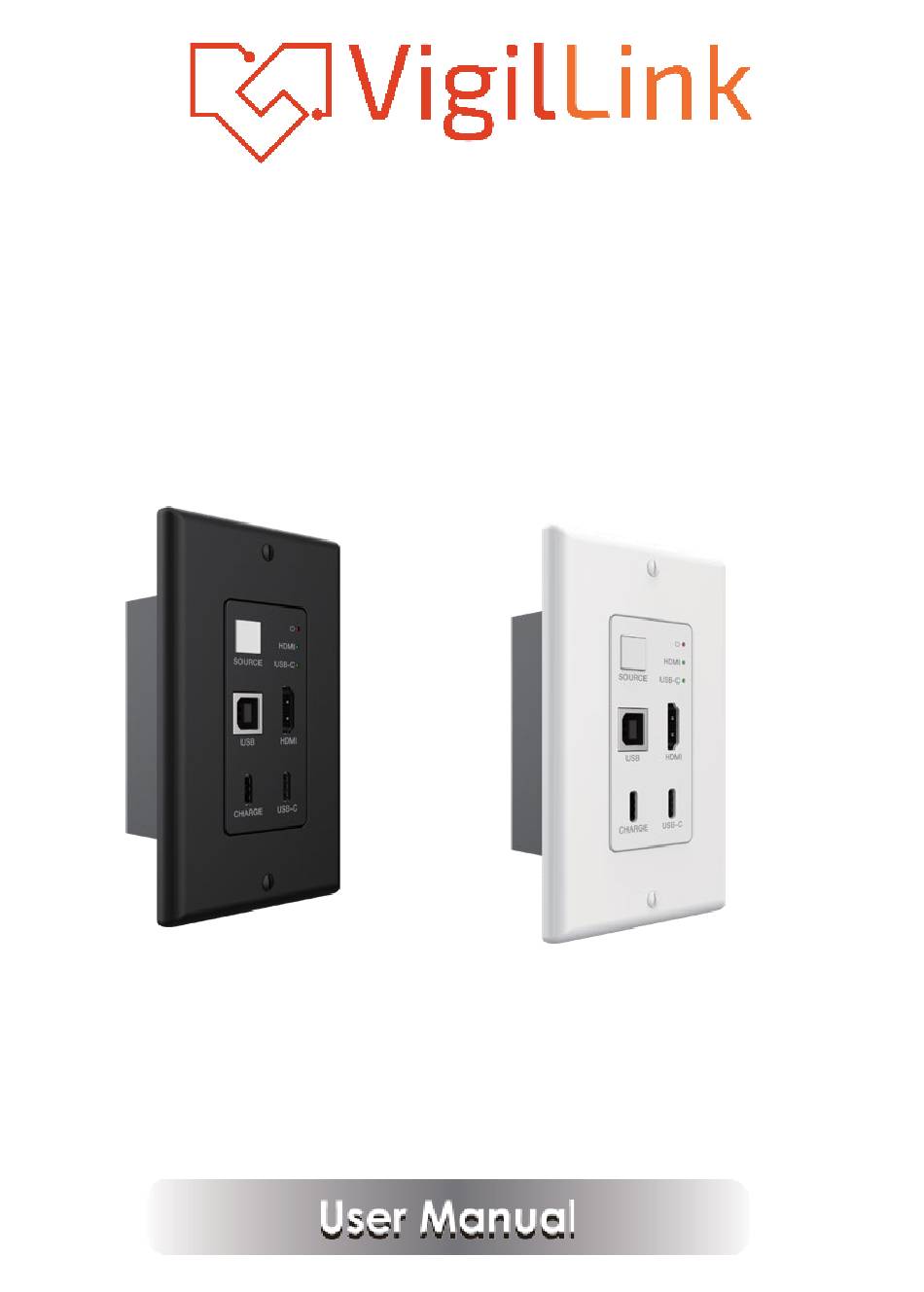

  • Page 1 VLWP-UHU-TR 18G, 2x1 HDMI/USB-C Wall Plate w/Auto-Switching, USB2.0, PoE VER 1.1...

  • Page 2: Table Of Contents

    Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device is recommended. This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc.

  • Page 3: Introduction

    1. Introduction The wall plate is a 2x1 switcher and HDBaseT transmitter with HDMI and USB-C input. It features a US one-gang enclosure for Decora-style wall plate openings with interchangeable black and white wall plates and faceplates. The USB-C input provides an exemplary AV interface for connecting with new Apple notebooks and Windows®...

  • Page 4: Specifications

    4. Specifications Technical HDMI Compliance HDMI 2.0b, DisplayPort 1.2a HDCP Compliance HDCP 2.2 Video Bandwidth 18 Gbps 4096×2160@24/25/30/50/60Hz,3840×2160@24/25/ 30/50/60Hz, 2048x1080p,1080p@23.98/24/25/29.97 Video Resolution /30/50/59.94/60Hz,1080i@50/59.94/60Hz, 720p@50 /59.94/60Hz, 576p, 576i, 480p, 480i Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 Color Depth 8/10/12-bit HDR10, HDR10+ Dolby Atmos, TrueHD, Digital+, Digital;...

  • Page 5: Product Dimensions

    Mechanical Housing Metal Enclosure Color White / Black Wall plate: 33.3mm [W] x 65.7mm [D] x 68.7mm [H] Faceplate: Dimensions 69.9mm [W] x 3mm [D] x 114.3mm [H] Receiver: 200mm [W] x 98mm [D] x 23mm [H] Wall plate: 196g, Receiver: 511g Weight Power Supply PoE (only from Receiver to Transmitter)

  • Page 6: Operation Controls And Functions

    6. Operation Controls and Functions 6.1 Transmitter Panel Name Function Description The power LED indicator will illuminate in green Power LED when the product is powered on and red when the product is on standby. The green LED will be on when the, HDMI input HDMI LED port is active and the HDMI signal is detected.

  • Page 7: Receiver Panel

    Micro-USB Firmware update port. 6.2 Receiver Panel Name Function Description The red LED Power LED The indicator will be on when the product is powered n. DC 24V power supply port. DC 24V Firmware update port. Connect to the HDBaseT OUT port of the HDBaseT IN Transmitter with a Cat6/6a/7 cable.
  • Page 8 will switch to the source signal of the Receiver. - 6 -...

  • Page 9: Application Example

    7. Application Example HDMI and HDMI High-Definition Multimedia Interface and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. - 7 -...
