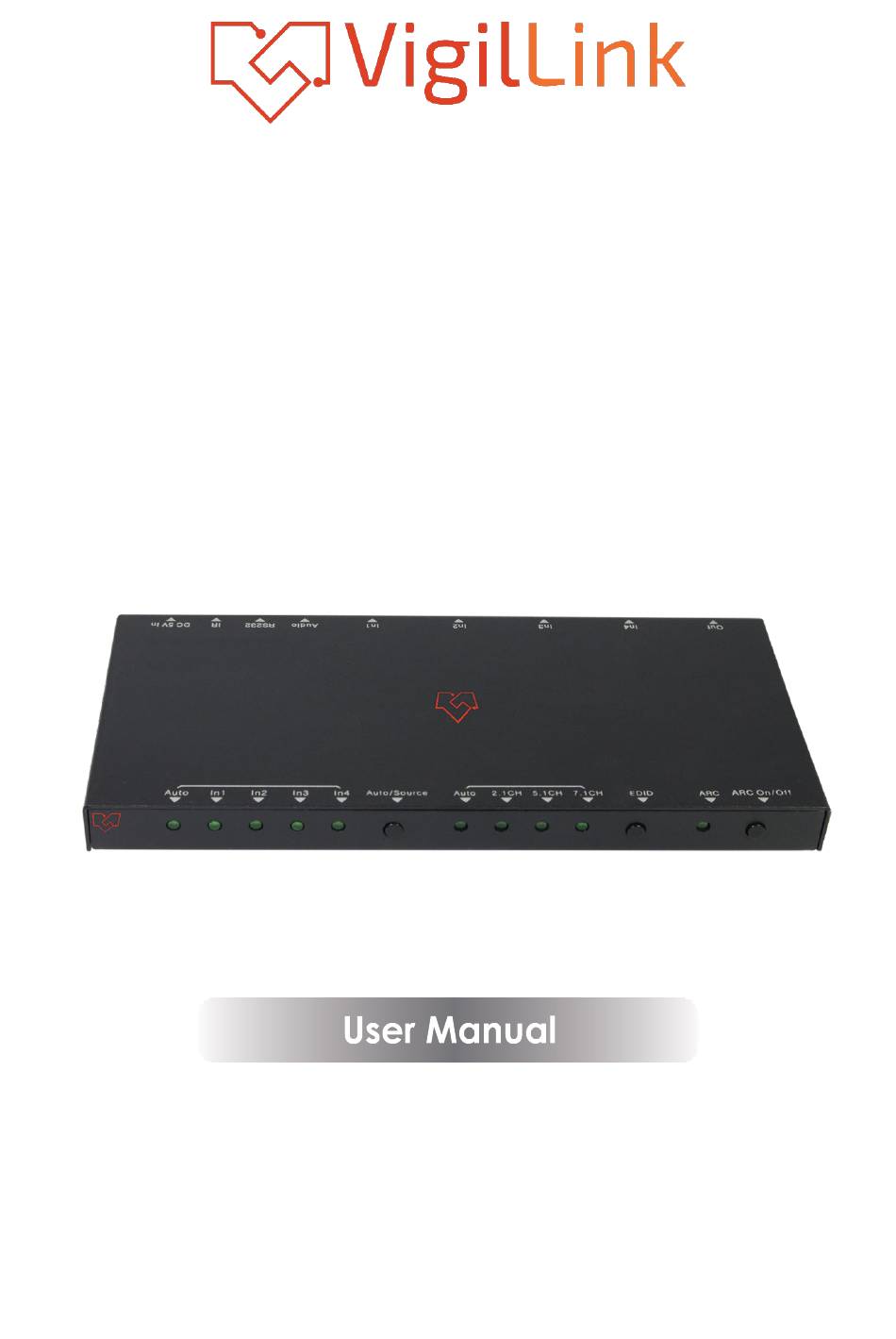

- Page 1 VLSW-41H20R 4X1 HDMI2.0 Switch with Audio ARC 18Gbps VER 1.1...
- Page 2 Thank you for purchasing this product. Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. I. Introduction This high-performance HDMI 4x1 switcher supports HDTV formats up to 4Kx2K@60Hz and all HDMI 3D TV formats.
- Page 3 3. Features Compliant with HDMI 2.0a, DVI 1.0 standards HDCP 2.2 and HDCP 1.4 compliant Video formats up to 4Kx2K@60 and all HDMI 3D video formats Supports PCM, Dolby TrueHD, DTS-HD Master Audio up to 7.1CH ...

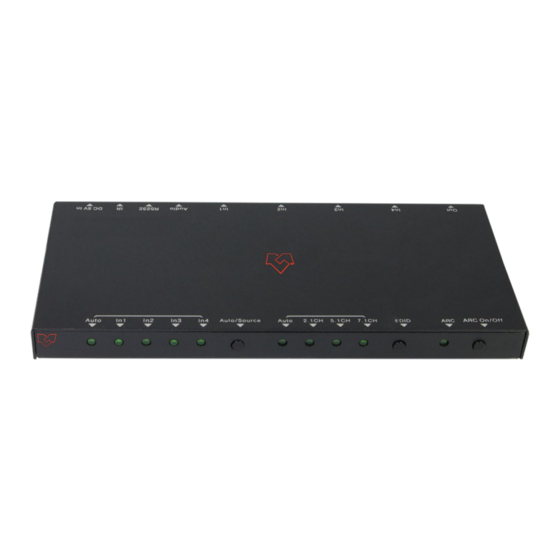

- Page 4 5. Switcher Operation controls and Functions Front Panel: Input indicator LED, the corresponding port LED will be illuminated when its port is selected. Auto or manual select button: Press this button for>2 seconds to select auto-switching or manual switching mode. Under manual switching mode, short pressing this button to select the input port.
- Page 5 Rear Panel: HDMI output port, connect with HDTV or monitor by HDMI cable HDMI input ports, connect with DVD, PS4, or Set-top Box HDMI cable Audio output (including L/R analog and optical audio out) RS232 port IR receiver port DC 5V input port 6.
- Page 6 7. Application Example...
