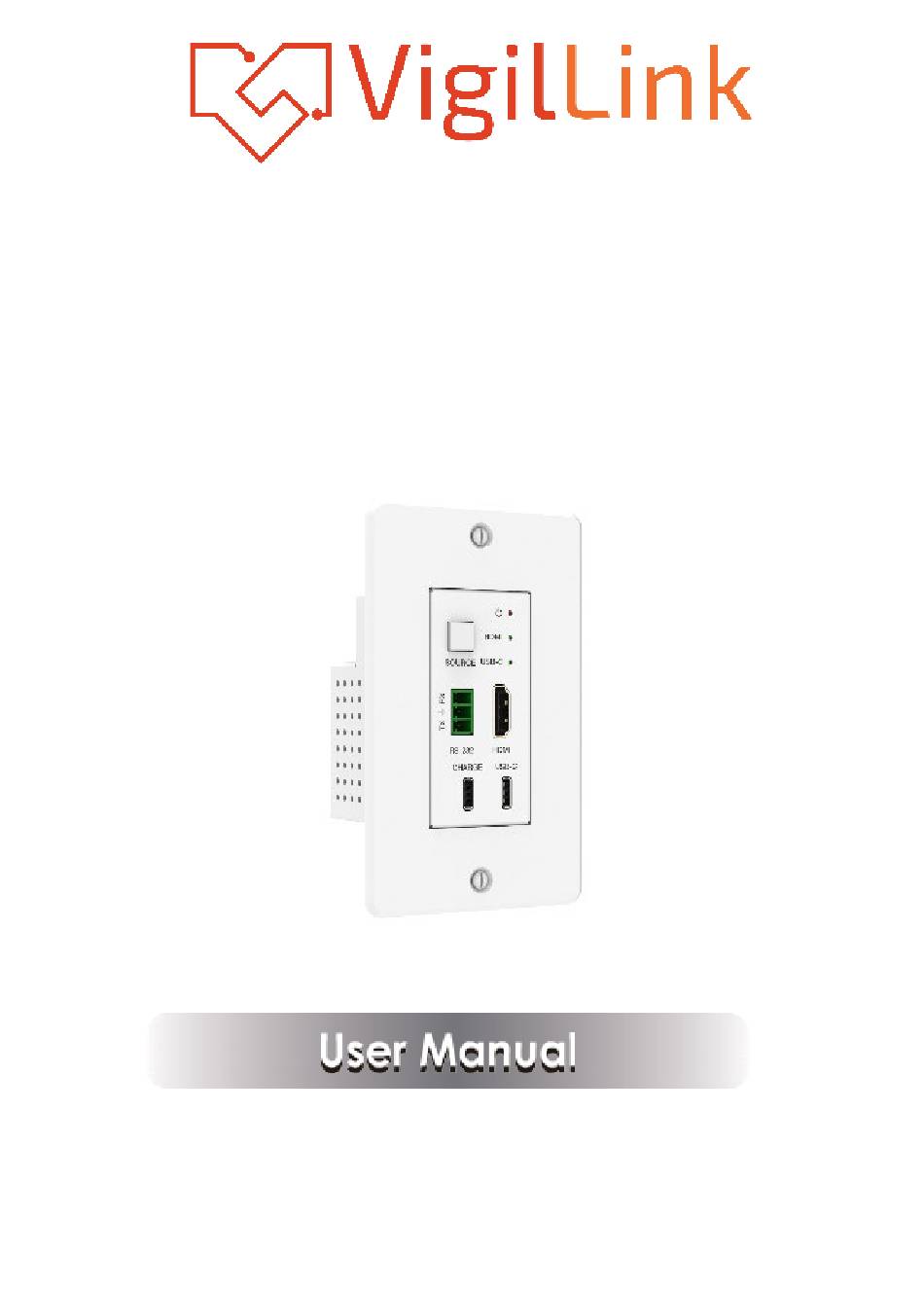

- Page 1 VLWP-UHS-TR 18G, 2x1 HDMI/USB-C Wall Plate w/Auto-Switching, RS-232, PoE VER 1.1...
-
Page 2: Table Of Contents
Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device is recommended. This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc. -
Page 3: Introduction
1. Introduction The wall plate is a 2x1 switcher and HDBaseT transmitter with HDMI and USB-C inputs. It features a US one-gang enclosure for Decora-style wall plate openings with interchangeable black and white wall plates and faceplates. Support video resolution up to 4K2K@50/60Hz 4:4:4. -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 DP Compliance Display Port 1.2a USB-C: 5.4 Gbps Video Bandwidth HDMI: 18 Gbps Video Resolution 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2k@60Hz Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 8/10/12-bit (1080P@60Hz) Color Depth 8-bit (4K@60Hz) Support... - Page 5 Inputs: 1x HDMI IN [Type A, 19-pin female] 1x HDBaseT IN [RJ45, 8-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female] Receiver 1x AUDIO OUT [Phoenix jack] Controls: 1x RS-232 [3-pin phoenix connector] 1x FW [Micro USB, Update port] - 3 -...
-
Page 6: Product Dimensions
Mechanical Housing Metal Enclosure Color White / Black Wall plate: 33.3mm [W] x 65.7mm [D] x 68.7mm [H] Faceplate: Dimensions 69.9mm [W] x 3mm [D] x 114.3mm [H] Receiver: 200mm [W] x 102.8mm [D] x 22mm [H] Weight Wall plate: 197g, Receiver: 517g Power Supply PoE (only from Receiver to Transmitter) Power Consumption Wall plate: 7.92W (Max), Receiver: 6W (Max) -
Page 7: Operation Controls And Functions
6. Operation Controls and Functions 6.1 Transmitter Panel Name Function Description The power LED indicator will illuminate in green when the product is powered on and red when Power LED the product is on standby. The green LED will be on when the HDMI input HDMI LED port is active and the HDMI signal is detected. -
Page 8: Receiver Panel
6.2 Receiver Panel Name Function Description The red LED Power LED The indicator will be on when the product is powered n. DC 24V power supply port. DC 24V Firmware update port. Connect to the HDBaseT OUT port of the HDBaseT IN Transmitter with a Cat6/6a/7 cable. -
Page 9: Application Example
7. Application Example HDMI and HDMI High-Definition Multimedia interface and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. - 7 -...
