- Page 1 VLKV-DP21 DisplayPort 2x1 KVM Switcher VER 1.02...
- Page 2 Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A Surge protection device recommended This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc.
- Page 3 1. Introduction This video switcher can switch 2 DP input device signals (such as PC, laptop, Mac) to 1 DP display device (such as TV, projector, LED display) and realize 2 signal source devices to share 1 display device. It supports video resolution up to 4K2K@60Hz 4:4:4.
- Page 4 4. Specifications Technical Compliance DP 1.4 HDCP Compliance HDCP 2.2 / 1.x Video Bandwidth 32.4Gbps Video Resolution 4K2K@60Hz 4:4:4 Color Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 8-bit, 10-bit, 12-bit (1080p@60Hz) Color Depth 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0) DP Audio Formats PCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio HDR, HDR 10, HDR 10+, and Dolby vision...

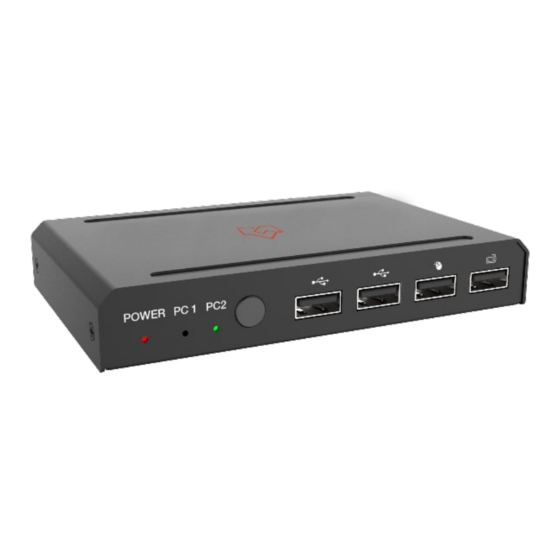

- Page 5 5. Operation Controls and Functions 5.1 Front Panel Name Function Description POWER LED When the product is powered on, a red LED will be on. Input status indicators. When the input source is PC 1/2 LED selected, the corresponding PC 1/2 LED will be on. Press the button to select the input signal source, and the corresponding PC 1/2 LED will be on.
- Page 6 5.2 Rear Panel Name Function Description DC 5V DC 5-12V power input port. DP signal output port. Connect to display device with DP DP OUT cable. USB HOST USB signal input port. Connect to PC with USB cable. DP signal input port. Connect to source device with DP DP IN cable.
- Page 7 6. Application Example...
