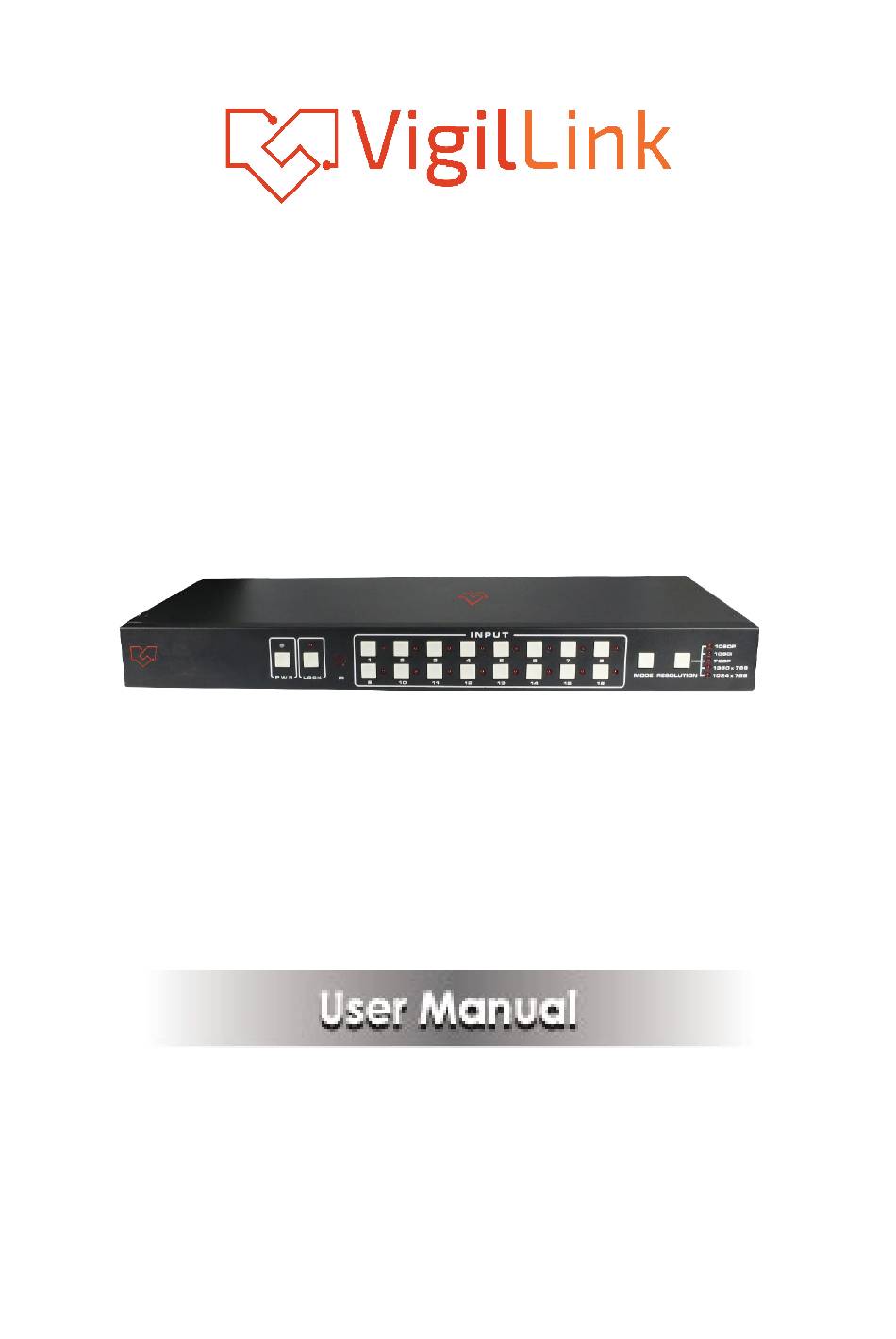

- Page 1 VLML-16X1H13 16x1 HDMI 1.3 Switcher with Seamless Switching and Multiview VER 1.2...
-
Page 2: Table Of Contents
Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A Surge protection device is recommended. This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc. -
Page 3: Features
This product is a high-performance 16-by-1 multi-Viewer with a seamless switcher. It supports sixteen High-definition input sources displayed on one screen. As a switcher, it can also seamlessly switch the sixteen HD inputs freely. The product can be controlled in various ways, through the front panel button control and RS-232 control, etc. -
Page 4: Specifications
4. Specifications Technical Video Bandwidth 2.25Gbps Input Ports 16 × HDMI (Female type),1x RS232 Output Ports 1 × HDMI (Female type), Audio output PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1 Input Resolution 480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz, 1080i50/60Hz,1080p 24/30/50/60Hz,800x600@60, 1024x768@60,1280x720@60,1920x1080@60; Output Resolution 1080p,1080i,720p,1024x768,1360x768 ESD Protection ±8kV (Air-gap discharge), ±4kV (Contact discharge) Power Supply 12V/5A DC (US/EU standards... -
Page 5: Rear Panel
Number Name Function description POWER Press this button to power the device on/off. The LED will illuminate green when the power is on and red when it is in 'Standby' mode. LOCK Press this button to lock all the buttons on the panel, and press again to unlock. -
Page 6: Detail Description Of Display Mode
HDMI INPUT Area Connect HDMI sources. LED 1-16 illuminate when the HDMI signal plugs in the corresponding input port with the HDMI cable. HDMI OUTPUT Area Output for displays, AVR, etc. LED illuminates when the display plug in the corresponding output port with an HDMI cable. - Page 7 MODE3: The 16x1 multi-viewer divides the nine HD inputs to the same size and displays on one screen. And now, switch the input button on the front panel or IR remote, and the HDMI output audio will correspond to the selected input source. MODE4: The 16x1 multi-viewer divides the sixteen HD inputs to the same size and...
-
Page 8: Pc Controller User Guide
displays on one screen. And now, switch the input button on the front panel or IR remote, and the HDMI output audio will correspond to the selected input source. 7. PC Controller User Guide Installation The PC controller is green software. Just use a cable to connect the PC via RS-232 port and copy “Quad Multi-Viewer.exe”... - Page 9 ① Select PC to connect COM port; click to connect or disconnect PC and multi-viewer, and the corresponding light will display. ② Select the HDMI output resolution. ② Select the input source. ④ Select the output mode; see the detailed description (chapter 6). ⑤...
-
Page 10: Application Example
Query key, and the corresponding list will display. ⑨ FW upgrades part: Click to open Firmware. Then click the upgrade button, and the new firmware will auto-download to the multi-viewer and restart it. ⑩ Press the Reset button, and the quad multi-viewer will reset to factory state. 8.
