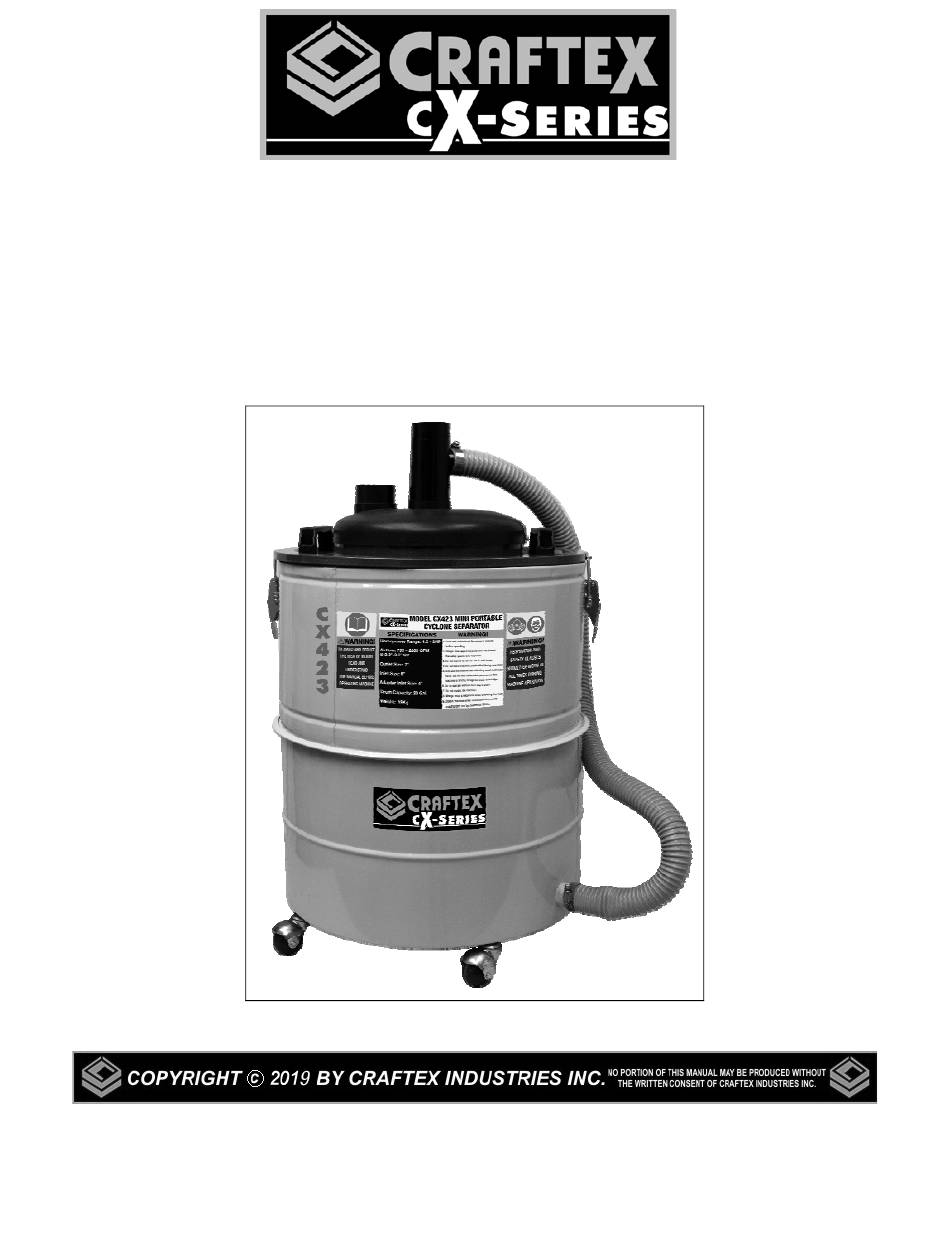

- Page 1 MODEL CX423 MINI DUST SEPARATOR USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents ....................3 Assembly......................... 3 Attaching the Mini Separator to Your Vacuum System .......... 5 Parts Diagram and List.................... .6 Warranty........................8... -
Page 3: Package Contents
CX423 MINI DUST SEPARATOR The CX423 Mini Dust Separator when used conjunction with your dust collector or Shop Vac System will separate the majority of dust from the air stream prior to reaching the collector filter. This is intended to help prevent your dust collection system’s filter from clogging, allowing you to work safer and longer... - Page 4 Fig.2 3. Using the M4 x 12 mm self tapping screws mount and fasten the Y – Pipe to the Bucket Cover as shown in Fig. 3. Fig.3 4. Mount the Upper Bucket Handle to the Upper Bucket using the ¼ x 5/8 Phillips Hd. Screws. See Fig.
-
Page 5: Attaching The Mini Separator To Your Vacuum System
Fig.6 7. Slide the 1-1/2” Flex Hose over the port on the bottom edge of the Lower Bucket and then slide the opposite end over the port on the side of the y – Pipe. Secure both ends with the hose clamps provided. -
Page 6: Parts Diagram And List
Parts Diagram and List BB PART NO. DESCRIPTION PART NO. Q'TY PCX423001 LOWER COLLECTION DRUM 045-018 PCX423002 BAND CLAMP 045-0011 PCX423003 CASTER,2"SWIVEL BALL 014-0005-5 PCX423004 FOAM WINDOW GASKET 016-0637 COLLECTION DRUM PCX423005 016-0636 WINDDOW(ACRYLIC) PCX423006 RIVET 4-2 WINDOW AL 004-1602 PCX423007 HANDLE 025-0524... -
Page 8: Warranty
This warranty shall not apply to consumable products such as blades, bits, belts, cutters, chisels, punches etceteras. Craftex shall in no event be liable for injuries, accidental or otherwise, death to persons or damage to property or for incidental contingent, special or consequential damages arising from the use of our products. - Page 9 The Busy Bee Parts & Service Departments are fully equipped to do repairs on all products purchased from us with the exception of some products that require the return to their authorized repair depots. A Busy Bee representative will provide you with the necessary information to have this done.
