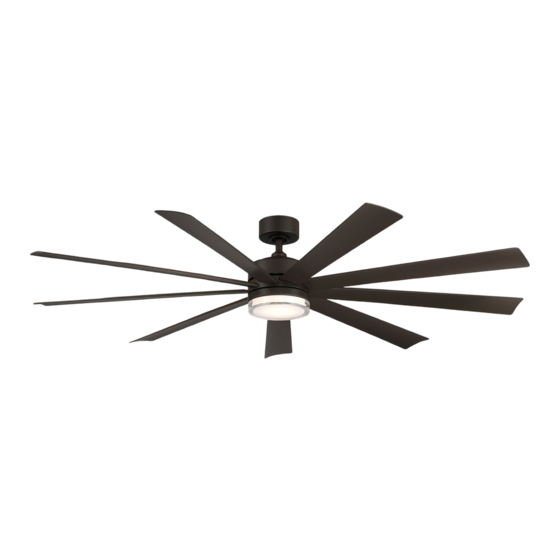

Wynd XL
Installation Instructions
works with the
Google Assistant

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wynd XL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Modern Forms Wynd XL

Summary of Contents for Modern Forms Wynd XL

  • Page 1 Wynd XL Installation Instructions works with the Google Assistant...
  • Page 2 Please read and save these instructions before installation DO NOT RETURN TO STORE F R - W 2 1 0 1 Wynd Instructions...
  • Page 3 General Inquiries For all questions about your ceiling fan please read all included instructions, installation procedures, troubleshooting guidelines and warranty information before starting installation. For missing parts or general inquiries call our trained technical staff at: 1-866-810-6615 option 0 MON-FRI 8AM-8PM EST Email: customerservice@modernforms.com Or live chat at modernforms.com...
  • Page 4 Safety Rules For operation, maintenance, and troubleshooting information, visit http://modernforms.com/fan-support/ To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker before beginning. All wiring must be in accordance with the National Electrical Code “ANSI/NFPA 70”...
  • Page 5 Modern Forms. Substitution of parts or accessories not designated for use with this product by Modern Forms could result in personal injury or property damage and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or missing.
  • Page 6 Get Smart... works with the Integrates Google Assistant seamlessly with: devices you already own Wet Location-listed to the strictest UL/cUL safety regulations. Finished and rated for interior and exterior use Premium smart Wi-Fi and Bluetooth enabled features: for flexible control complement high quality materials Quiet, reliable, and up to 70% more efficient than AC fans...

  • Page 7: Table Of Contents

    Contents 1. Mounting Options 2. Installing the Mounting Bracket 3. Attaching the Fan Blade 4. Assembling the Fan 5. Hanging the Fan 6. Making the Electrical Connections 7. Installing the Optional Wall Control 7. Installing the Optional Wall Control 8. Finishing the Installation 9.
  • Page 8 Package Contents 1. Blade Set of 5 Luminaire Module F2101 F4IN-120V-R1-30 RPL- -**-BD-** Luminaire Cover 2. Mounting Bracket F2101 RPL- -COVER-** Downrod Assembly RPL-HGR-ASM-** Acrylic Shade F2101 3. Coupling Cover RPL- -GLA RPL-COU-CVR-** 10. Control receiver 4. Canopy & Canopy Ring w/Hardware (***) 2101 RPL-CAN-CYL-**...
  • Page 9 Hanging Weight: 20 lbs IMPORTANT: Please make note of the MAC ID on the receiver and keep it in a safe place. FR- W 2 10 1 Wynd Instructions 9...

  • Page 10: Mounting Options

    1. Mounting Options CAUTION: To prevent electrical shock, ensure electricity has been turned off at the circuit breaker before beginning. If there isn’t an existing UL/cUL listed outlet box, please refer to the following instructions. Secure the outlet box directly to the building structure.
  • Page 11 Support Brace 2. Outlet Box 3. Joist Outlet Box Support Ceiling Max 30° Angle Support Brace 2. Mounting Bracket 3. Recess Outlet Box Outlet Box FR- W 2 10 1 Wynd Instructions 11...

  • Page 12: Installing The Mounting Bracket

    2. Installing the Mounting Bracket CAUTION: Remember to disconnect the power at the circuit breaker. Remove 1 set screw from mounting bracket and set aside for use in Finishing the Installation. 2. Pass supply wires through mounting bracket and secure to outlet box.
  • Page 13 To Switch (Ground) (HOT) *Bare or Green (Neutral) To Switch (No Neutral) (Ground) (HOT)/ *Bare or Green Switch Mounting Bracket cUL Listed Electrical Box 2. Screw 2. Mounting Screws HARDWARE USED: Outlet Box Screws and Washers (2) (outlet box screws not included) 3.

  • Page 14: Assembling The Fan

    4. Assembling the Fan CAUTION: Failure to properly install the cotter pin and/or tighten the set screws could result in the fan loosening and possibly falling. NOTE: Screws for Adapter plate (6) are preinstalled on the fan motor assembly on the small ring at the center of the blades. Remove blue packing ring if present.
  • Page 15 3 screws for adapter plate UNLESS OTHERWISE SPECIFIED: NAME DATE DRAWN DIMENSIONS ARE IN INCHES TOLERANCES: TITLE: CHECKED FRACTIONAL ANGULAR: MACH BEND ENG APPR. TWO PLACE DECIMAL THREE PLACE DECIMAL MFG APPR. Q.A. INTERPRET GEOMETRIC PROPRIETARY AND CONFIDENTIAL TOLERANCING PER: COMMENTS: THE INFORMATION CONTAINED IN THIS MATERIAL...

  • Page 16: Hanging The Fan

    5. Hanging the Fan CAUTION: Failure to properly install the cotter pin and/or tighten the set screws could result in the fan loosening and possibly falling. NOTE: Make sure all screws are tightened and that wires are not twisted. Remove screw from hanger ball. Remove hanger ball and cross pin (Fig.
  • Page 17 Canopy 2. Canopy Ring 3. Coupling Cover 4. Molex Connector 5. Clevis Pin 6. Cotter Pin Motor Housing Screws 8. Wood Screw 9. Safety Cable FR- W 2 10 1 Wynd Instructions 17...

  • Page 18: Making The Electrical Connections

    6. Making the Electrical Connections WARNING: Installation of this fan requires that a three-conductor cable (including ground wire) which should run between ceiling and wall outlet box. WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts, except for the ground wire.
  • Page 19 Mounting Bracket 2. Receiver Outlet GREEN(Ground) Black(Hot) WHITE(Neutral) can be RED from Switch leg WHITE(Line in N) GREEN(GND Must Use) Black(Line in H) GREEN(Hanger Bracket Ground) Hanger Receiver Bracket GREY(to Motor) BLUE (to Light) WHITE(to Light) YELLOW(to Motor) GREEN(Hanger Bracket Ground) RED(to Motor) RED(to Motor) WHITE(Neutral)

  • Page 20: Installing The Optional Wall Control

    7. Installing the Optional Wall Control Connect the green wire marked “GROUND” from the wall control to the copper wire from the wall outlet box that feeds back to the circuit breaker – important for proper fan function (Fig. 7). 2.
  • Page 21 Wall Outlet 2. Wall Control 3. Wall Mounting Plate 4. Mounting Plate Screws 5. Wallplate Multi-location wiring Individually pair each of the wall controls with the fan receiver using the pairing instruction. See page 25. If Applicable Wallcontroller 1 Wallcontroller 2 Wallcontroller 3 Wall Control 3 Wall Control 1...

  • Page 22: Installing The Optional Wall Control

    NOTE: Traveller wiring to fan is strictly for power and allows for emergency shut off via Modern Forms wall control. Signal is wireless from wall control to receiver. 8. Finishing the Installation Secure wire connectors with supplied wire ties.
  • Page 23 Replacing Pre-Existing Switch Outlet Box 2. Hanger Bracket 3. Screws 4. Canopy 5. Canopy Screw Cover FR- W 2 10 1 Wynd Instructions 23...

  • Page 24: Controlling The Fan

    9. Controlling the Fan Your fan was delivered to you with the included control already paired to your fan. A: Light On/Off, Bright/Dim B: Fan On/Off, Speed Up/Down C: Season (Summer/Winter) Air-Gap Switch: Pull tab to power off in case of emergency. Not necessary for normal fan operation (only included with wall control).
  • Page 25 Air-Gap Switch* Summer Mode Winter Mode Wall Control Remote (Counter-Clockwise) (Clockwise) Control * Air-Gap Switch only included with wall control Fan On/Off Light On/Off Fan Direction Press and hold Press and hold Press and hold button for 4 seconds. button for 4 seconds. button for 4 seconds.

  • Page 26: Reset

    In addition to the included remote control, you can control your fan with a wall control (sold separately) or through the Modern Forms app. To use the Modern Forms app, download it for free from the App Store or Google Play.
  • Page 27 Pairing Unpairing Fan Wi-Fi Reset Press and hold the for 10 seconds until Press and hold buttons To purge, press and hold LED blinks green and receiver emits 2 long beeps buttons for 4 seconds for 10-15 seconds Factory Reset Receiver Factory Reset Press and hold buttons for 10 seconds until the Press the reset button on the receiver until the...

  • Page 28: Accessories

    13. Accessories personalize your experience Bluetooth Remote Control Dims light to 1% | ON/OFF 6 fan speeds F-RCBT-WT White Bluetooth Wall Control Dims light to 1% | ON/OFF 6 fan speeds | Sold separately F-WCBT-WT White F R - W 2 1 0 1 Wynd Instructions...
  • Page 29 Sloped Ceiling Kit Designed to accommodate buildings with steeper sloped ceilings up to 45° or 12/12 pitch XF-SCK Coupler Connects two downrods XF-I Downrod XF-12 - 12” Downrod | XF-18 - 18” Downrod XF-24 - 24” Downrod | XF-36 - 36”...

  • Page 30: Troubleshooting

    14. Troubleshooting My Fan Will Not Start Check main and branch circuit fuses or circuit breakers. 2. Check line wire connections to fan and switch wire connections in the switch housings. CAUTION: Make sure the main power is turned off! My Fan is Noisy Allow for 24-hour break-in period.
  • Page 31 My Fan is not producing Enough Air Movement If possible, please consider using a longer than included downrod. My remote or wall control is not controlling my fan Verify that the fan is receiving power by power cycling the fan. To do this: Cut power to the fan via standard On/Off wall switch, or the breaker if standard wall switch is not applicable.
  • Page 32 10 seconds and back on. Alternately, you can use the circuit breaker the fan is connected to by toggling it off for 10 seconds and back on. If your fan is wired through a Modern Forms wall control (P/N: F-WCBT-WT) pull the Air-Gap Switch on your wall control, wait 10 seconds, and re-insert.
  • Page 33 What is Pairing? Pairing is the process of connecting your Modern Forms remote or wall control to your fan. Your fan comes pre-paired to your included remote control. However, if you want additional controls for your fan or if you’re replacing a control, refer to the pairing and unpairing section of the instructions.
  • Page 34 Notice of a defect in writing must be received by Modern Forms within five (5) years from the date of purchase (or according period of time as outlined by material). Excluded from warranty are any 3rd party component which carries its own manufacturer’s warranty.
  • Page 35 La notificación de un defecto por escrito debe ser recibida por Modern Forms dentro de los cinco (5) años a partir de la fecha de compra (o según el período de tiempo indicado en el material). Quedan excluidos de la garantía todos los componentes de terceros que tengan la garantía de su propio fabricante.
  • Page 36 F R - W 21 01 modernforms.com...
