HANDLING AND INSTALLATION
To assemble appliances in banks (side by side)
proceed as described below.

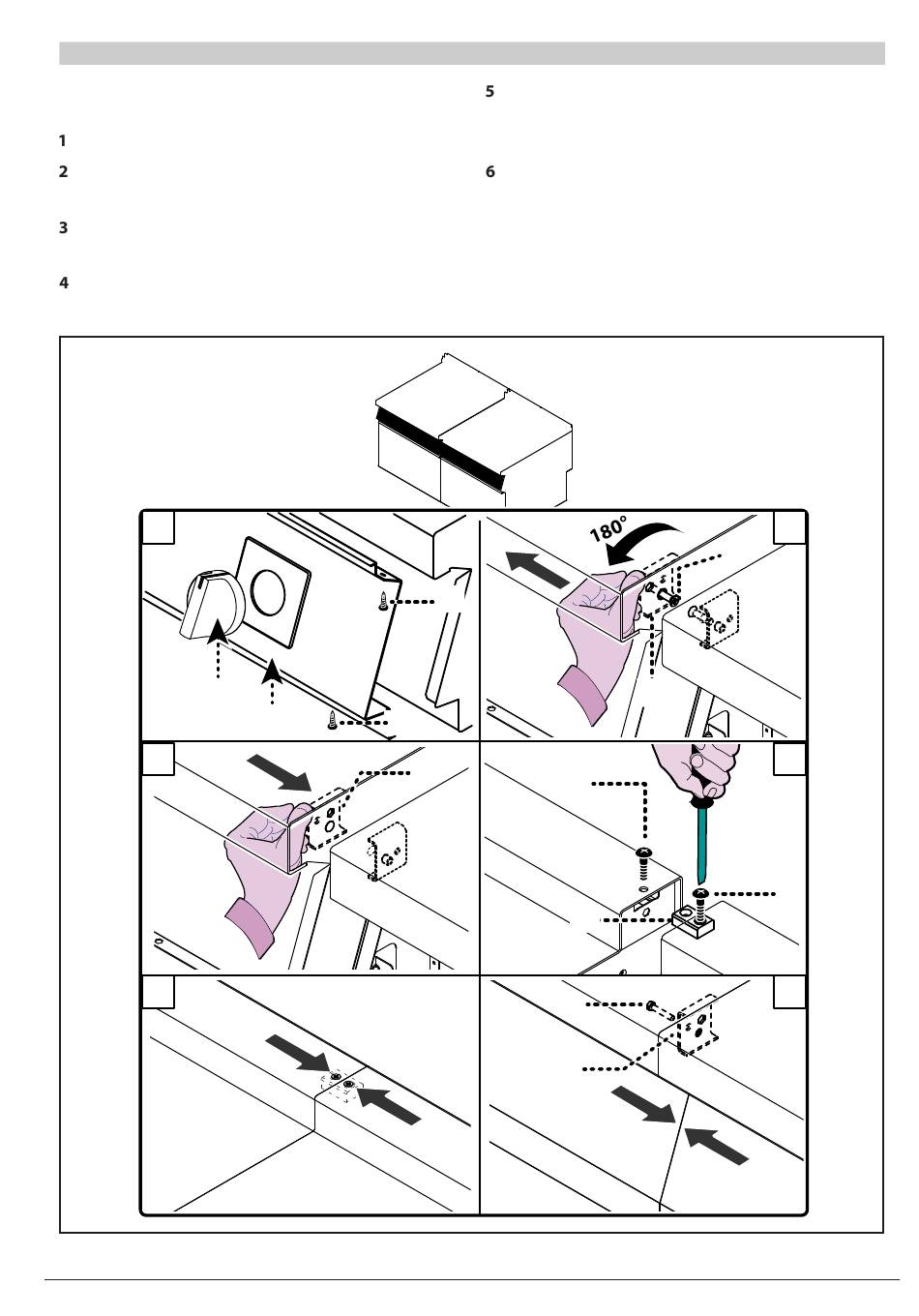

Pull off the knobs (A) (fi g.1).
)
Undo the screws (C) and remove the control
)
panels (B) (fi g.1).
Undo the screw (D) and turn the bracket (E)
)
of 180° anti-clockwise (fi g. 2-3).
Connect the appliances using the screws (F)
)
and the bracket (G) (rear part) (fi g. 4-5).
1
A
3
5
3395270_inst_GB

BANK ASSEMBLY OF APPLIANCES

B
C
E
Connect the appliances using the screw (H)
)
(supplied) and the bracket (E) (front part)
(fi g.6).
After completing the operation, fi t the con-
)
trol panels (B) and the knobs (A) back in
place (fi g.1).
A variety of optional installation kits are avail-
able for arranging appliances in banks (see the
"general catalogue"):
